Powermate PM401211 User Manual

40
P
P
A
A
R
R
T
T
S
S
D
D
R
R
A
A
W
W
I
I
N
N
G
G
-
-
F
F
R
R
A
A
M
M
E
E
A
A
S
S
S
S
E
E
M
M
B
B
L
L
Y
Y

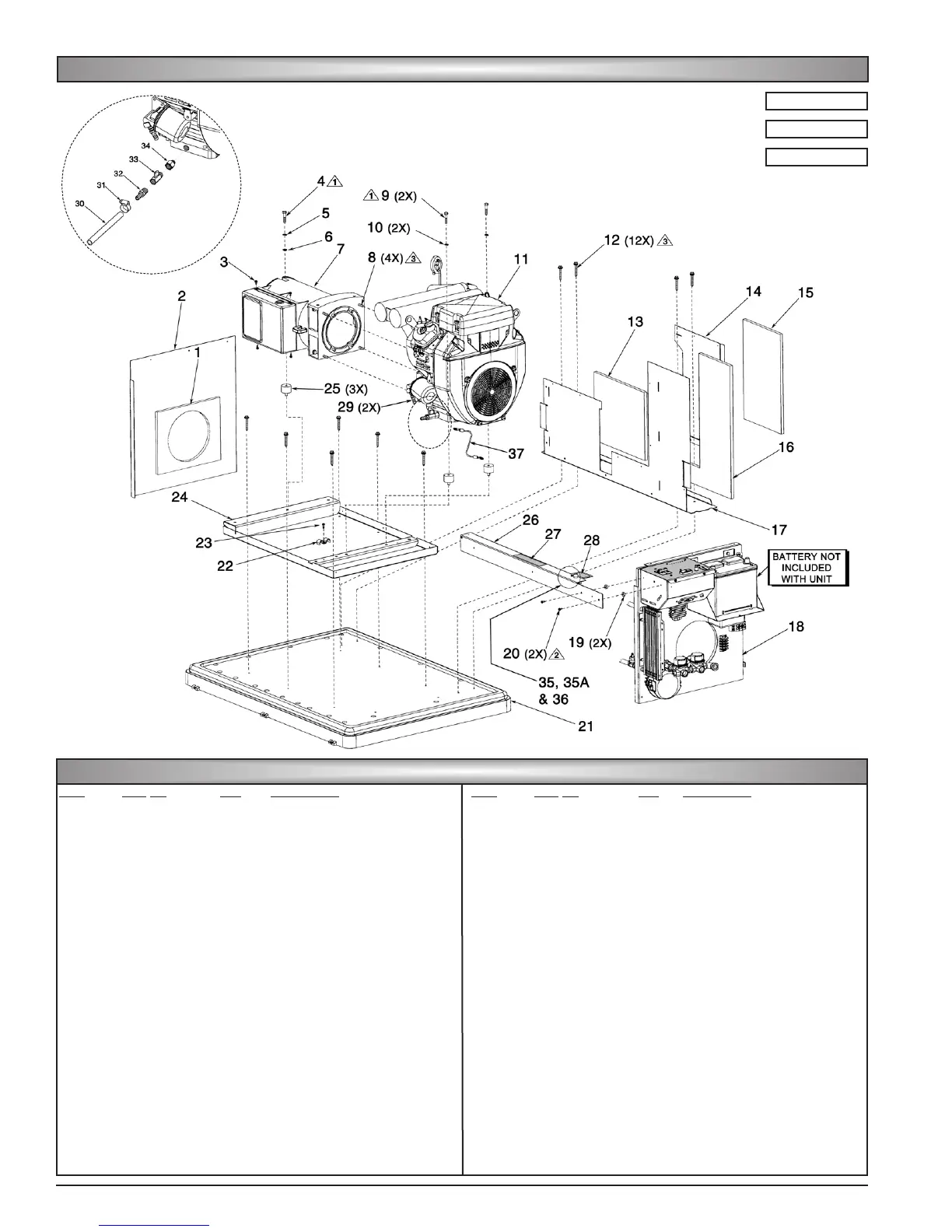

Item Part No Qty Description
1 094-0091 1 Insulation
2 115-0268 1 Panel, left side (includes item 1)
3 N/A 4 Screw, 10-32 x .50” lg
4 N/A 1 Bolt, 5/16 NC x 1.25” lg
5 N/A 1 Lock washer, 5/16”
6 N/A 1 Washer, 5/16”
7 160-0309 1 Generator assembly
8 N/A 4 Bolt, 3/8-16 x .75” lg
9 N/A 2 Bolt, 5/16 NC x 1.50” lg
10 N/A 2 Lock washer, 5/16”
11 025-0063 1 Engine, Honda, GX620 (muffler ...
not incl. - see page 36 for details)
or 025-0059 1 Engine, Honda, GX670 (muffler ...
not incl. - see page 36 for details)
12 N/A 12 Lag screw, 5/16 x 2” lg w/washer
13 094-0074 1 Insulation
14 115-0269 1 Exhaust access panel (includes
item 15)
15 094-0081 1 Insulation
16 094-0080 1 Insulation
17 115-0270 1 Back panel (includes items 13 & 16)
18 115-0245 1 Engine panel assembly (see
pages 41, 42 & 43 for details)
19 094-0095 2 Spacer
20 N/A 2 Screw, #10 x 1/2” sheet metal
Item
Part No Qty Description
21 109-0100 1 Base, plastic
22 071-0031 1 Hose clamp
23 N/A 1 Screw, 10-14 x .63” lg
24 S108-0160 1 Engine pan
25 094-0068 3 Vibration isolator
26 115-0271 1 Crossbrace assembly (includes
items 27, 28, 35, 35A & 36)
27 098-2828 1 Warning label
28 098-2821 1 Warning label
29 068-0084 1 Fitting, hose barb 1/8 x 3/8
30 012-0094 1 Hose, oil drain
31 012-0084 1 Hose clamp, .50-1.2
32 0057747 1 Fitting, barb 3/8 x 1/2
33 0057746 1 Valve ball, 3/8 M/F
34 063-0042 1 Adapter, oil drain
35 026-0309 1 Fuse holder
35A 026-0518 1 Fuse, type 3AG, 25 Amp 32V
36 026-0547 1 Relay DC, 12V, COIL
37 S0049224 1 Ground strap, 12GA, 5.50” lg
*N/A - These are standard parts available at your local
hardware store.
P
P
A
A
R
R
T
T
S
S
L
L
I
I
S
S
T
T
See
detail A
Detail A
Torque to 8.5 lbs-ft
Torque to 15 lbs-in
Torque to 40 lbs-ft
For Oil Filter and Air Filter
part numbers, see page 19
of this manual.
