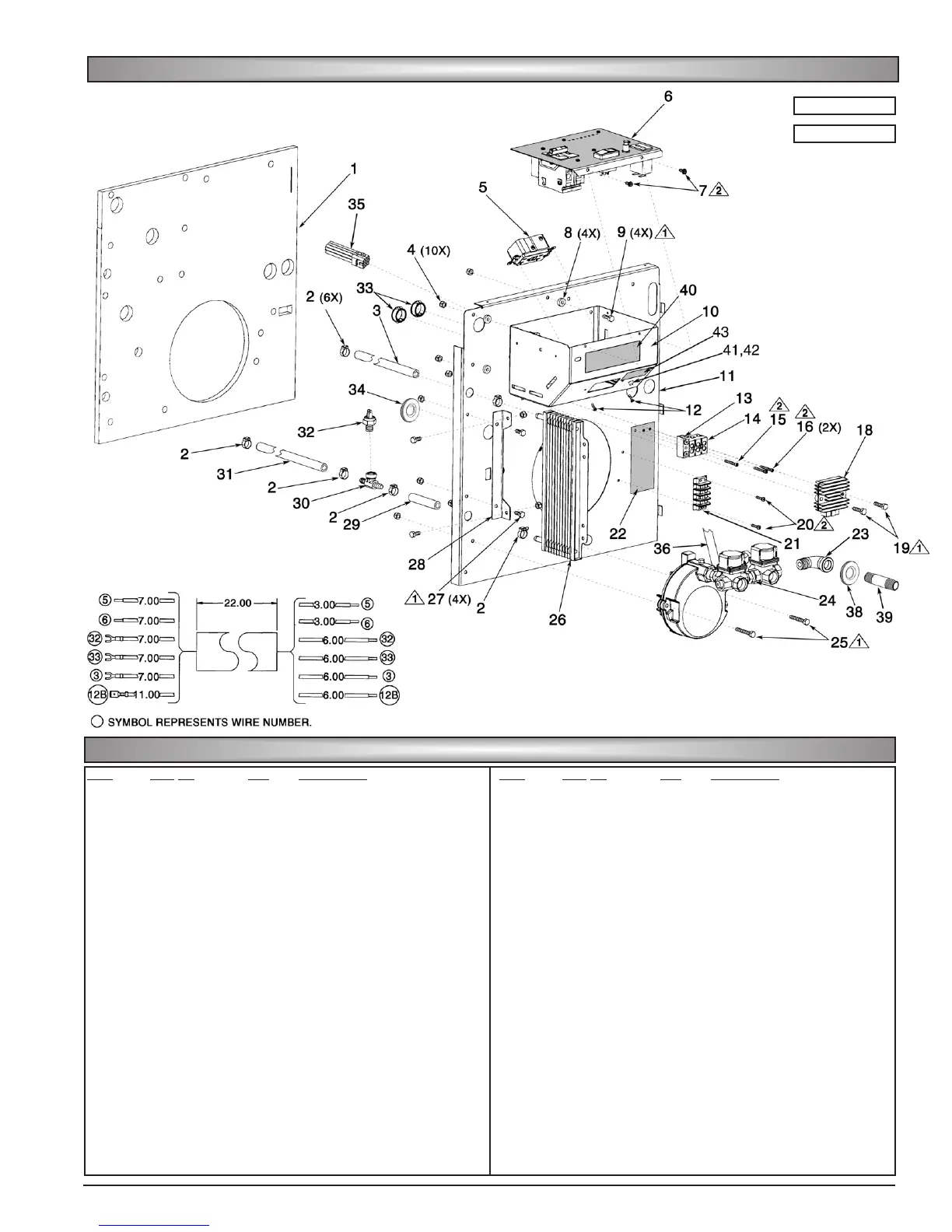

Item Part No Qty Description
1 094-0096 1 Insulation
2 N/A 6 Hose clamp, 23/32” I.D.
3 S012-0106 1 Hose, high temp oil, 3/8” x 26.5” lg
4 N/A 10 Nut, 1/4-20, Nylon stop
5 026-0338 1 GFCI Receptacle
6 See page 42 1 Control panel assy, CP200
7 N/A 2 Screw, 10-16 x .50” lg
8 094-0095 4 Spacer, .75 O.D.
9 N/A 4 Screw, 1/4-20 x .75” lg
10 S115-0238 1 Control box frame
11 115-0272 1 Panel, right hand (includes items
1 & 22)
12 N/A 2 Screw, 6-32 x .50” lg
13 026-0460 1 Terminal block, ground lug
14 026-0472 1 Terminal block
15 N/A 1 Screw, torx 8-32 x 1.25” lg
16 N/A 2 Screw, 8-32 x 1.25” lg
17 N/A 5 Nut, #8-32 (not shown - for items
15, 16 and 20)
18 N/A 1 Rectifier shipped with engine
(Contact Honda Service Center)
19 N/A 2 Bolt, 1/4-20 x 1
20 N/A 1 Screw, 8-32 x .75” lg
21 026-0539 1 Terminal block, 2 row 20A 4-pole
22 098-2800 1 Warning label
23 N/A 1 Elbow, 1/2 NPT x 1/2 NPT
Item
Part No Qty Description
24 019-0211 1 Regulator assy, GX670
(PM401211)
or 019-0213 1 Regulator assy, GX620
(PM400911)
25 N/A 2 Bolt, 1/4-20 x 1.75” lg
26 0057079 1 Oil cooler
27 N/A 4 Bolt, 1/4-20 x .63” lg
28 S114-0564 1 Bracket, oil cooler
29 Order S012-0106 1 Hose, high temp oil, 3/8” x 3” lg
30 069-0022 1 Tee, adapter oil temp
31 Order S012-0106 1 Hose, high temp oil, 3/8” x 13” lg
32 034-0162 1 Switch, oil temp
33 051-0091 2 Bushing, snap .875 ID
34 093-0053 1 Rubber grommet
35 026-0512 1 Wire harness, engine control
36 012-0120 1 Vapor hose assembly
37 026-0516 1 Wire harness, terminal block
power
38 093-0054 1 Fuel grommet, .84 ID x 1.875 OD
39 N/A 1 Nipple, 3” lg, 1/2 NPT
40 098-2826 1 Warning label
41 026-0309 1 Fuse holder
42 N/A 1 Fuse, 5A Type 3AG
43 098-2850 1 Fuse label
*N/A - These are standard parts available at your local hardware store.
