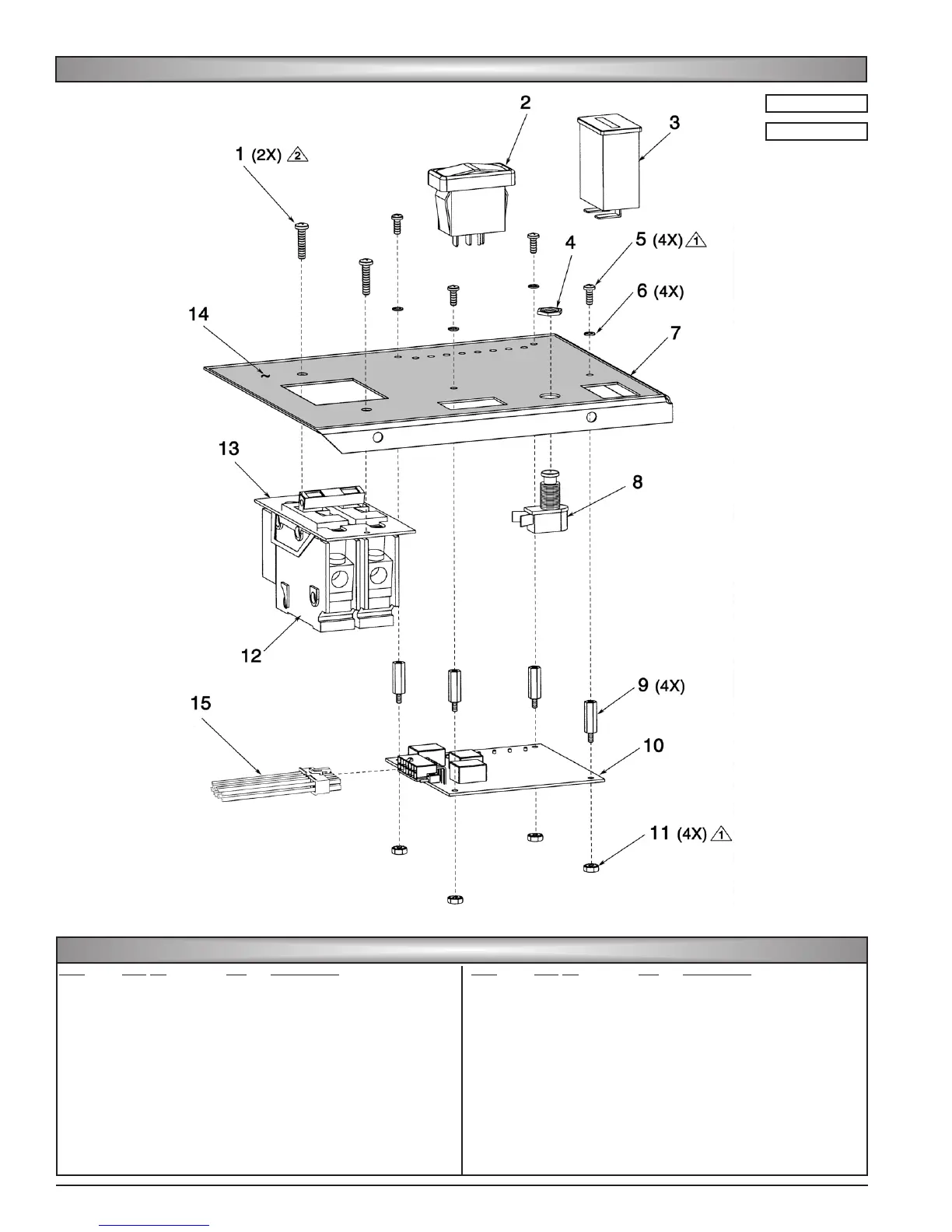

Item Part No Qty Description
1 N/A 2 Screw #8-32 x .75 phillips hd
2 034-0161 1 Switch, toggle
3 032-0067 1 Hourmeter, 120V AC 60HZ
4 (see #8) 1 Not available separately
5 N/A 4 Screw, 6-32 x .38”lg
6 N/A 4 Lock washer #6
7 115-0273 1 Control box top (includes item 14)
8 0056884 1 Switch, momentary
9 060-0175 4 Standoff, 6-32 x .75”lg
10 026-0534 1 Controller board, CP200
11 N/A 4 Nut #6-32, Nylon stop
Item Part No Qty Description
12 002-0060 1 Circuit breaker, 50 Amp,
120/240V (PM401211)
or 002-0061 1 Circuit breaker, 45 Amp,
120/240V (PM400911)
13 0058069 1 Circuit breaker mount
14 098-2820 1 Control panel label, CP200
15 026-0537 1 Wire harness
*N/A - These are standard parts available at your local
hardware store.
P
P
A
A
R
R
T
T
S
S
L
L
I
I
S
S
T
T
Torque to 10 lbs-in
Torque to 15 lbs-in
