Powermate PM7500 User Manual

10 Owner’s Manual for Portable Generator
.

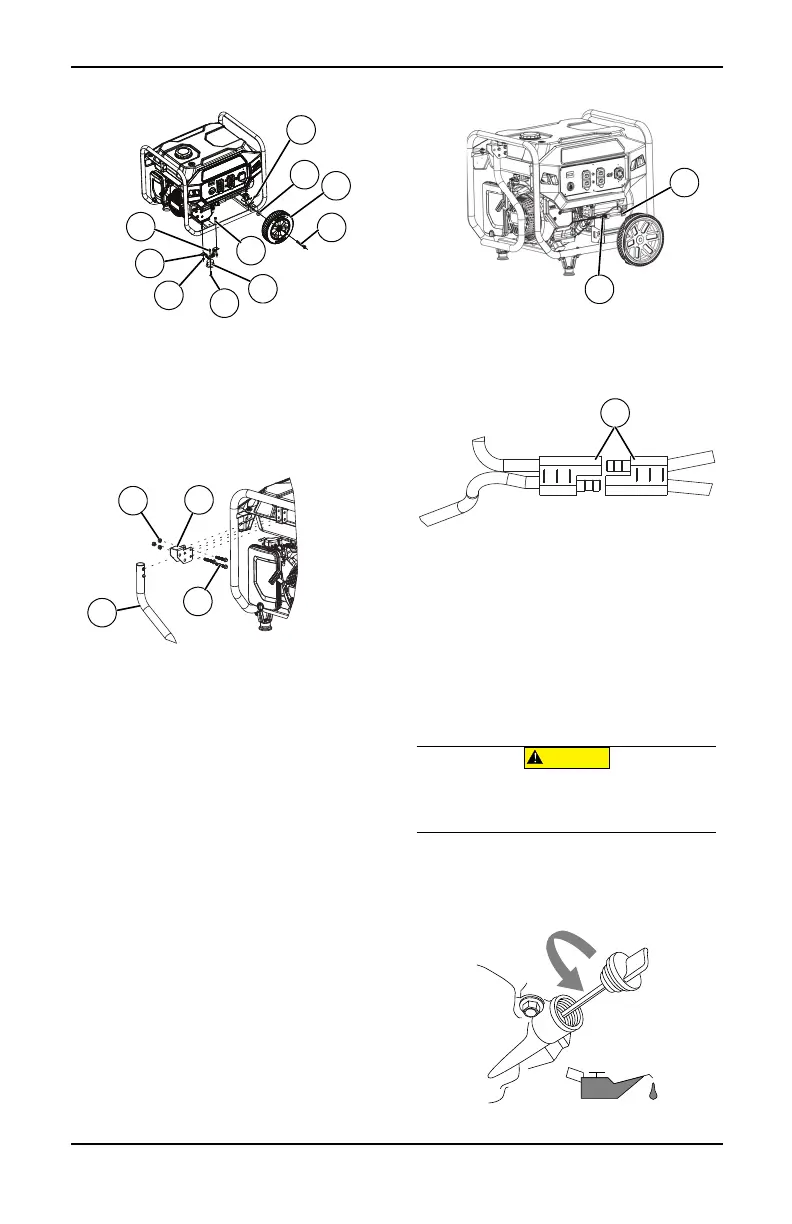

Figure 2-10. Wheel & Foot Assembly
See Figure 2-11.
Install handle as follows:
1. Slide long bolts (M) through handle
bracket and handle (A). Install hex nuts
(J).
Figure 2-11. Handle Assembly
Battery Cable Connection
(electric start only)
The unit has been shipped with the battery
cables disconnected.
1. Cut off cable ties securing battery cables
and remove red cover from battery termi-
nal.
2. See Figure 2-12 (A). First, connect the red
cable to the positive (+) battery terminal
with the bolt and nut supplied.
3. Make sure connections are secure and
slide rubber boot over the positive (+) bat-
tery terminal and connection hardware.
4. See Figure 2-12 (B). Connect the black
cable to the negative (-) battery terminal
with the bolt and nut supplied. Slide rubber
boot over the negative (-) battery terminal
and connection hardware.
Figure 2-12. Battery Cable Connection
5. See Figure 2-13. Connect battery quick
connect (C).
Figure 2-13. Battery Quick Connect
6. Make sure all connections are secure.
NOTE: If the battery is unable to start the
engine, charge it with the 12V charger
included in the accessory box (see the
Charging the Battery (electric start units only)
section for details).
Add Engine Oil
1. Place generator on a level surface.
2. Clean area around oil fill.
3. See Figure 2-14. Remove oil fill cap and
wipe dipstick clean.
Figure 2-14. Remove Dipstick
E
F
L
H
J
K
C
G
009456
B
D
A
M
A
009690
J
B
A
009635
C
009636
(000135)
CAUTION
Engine damage. Verify proper type and quantity of
engine oil prior to starting engine. Failure to do so
could result in engine damage.
000115
