Owner’s Manual for Portable Generator 5
Section 2 General Information and Setup

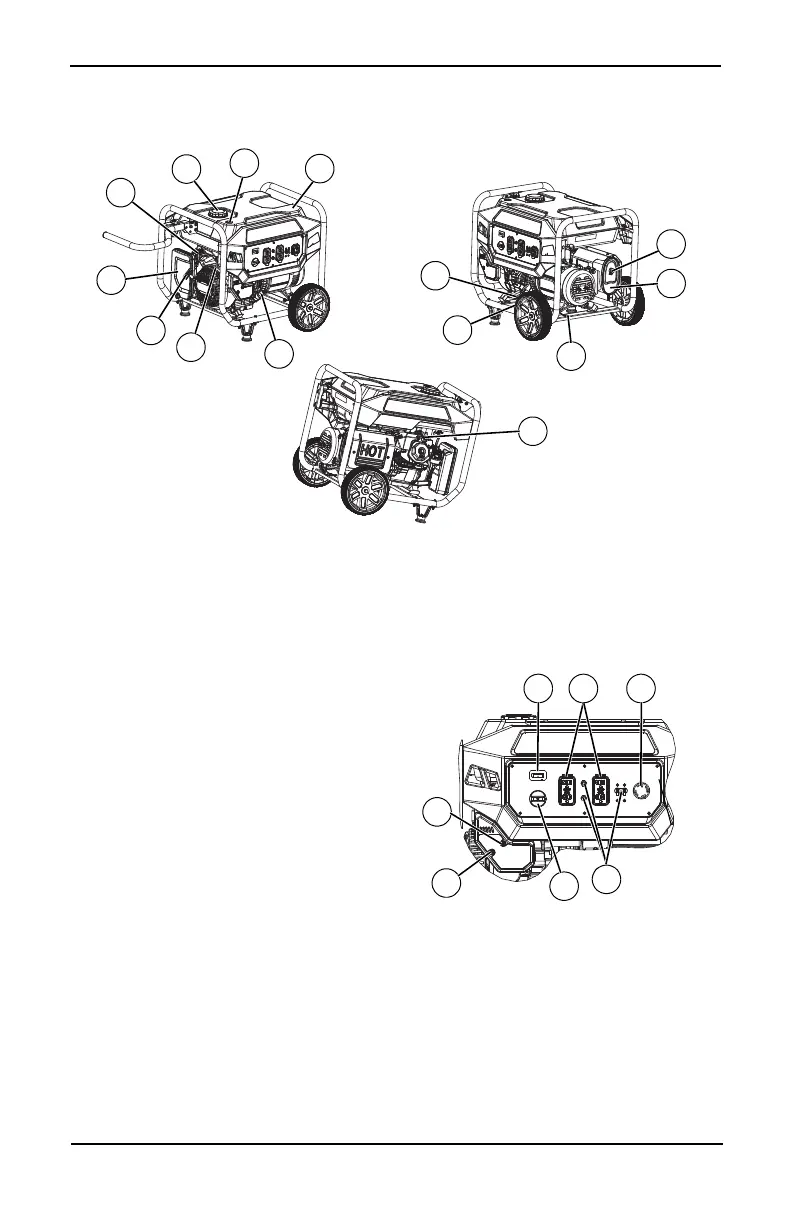

Figure 2-1. Features and Controls
Generator Components
Figure 2-2. PM7500 Control Panel with Recoil
Start
7
11
10
9
8
16
12
17
13
15
18
009535 009536
009537
14
22
21
1 120 Volt AC, 20 Amp, GFCI Duplex
Receptacle (NEMA 5-20R)
2 120/240 Volt AC, 30 Amp, Twistlock
Receptacle (NEMA L14-30R)
3 Circuit Breakers (AC)
4 Hour Meter
5 Off/Run/Cold Start Dial (Recoil Start Only)
6 Engine Start/Stop Button (Electric Start)
7Oil Drain
8 Air Filter
9 Fuel Tank
10 Grounding Lug
11 Muffler
12 Gas Cap
13 Fuel Gauge
14 Oil Check/Fill
15 Spark Plug
16 Recoil Starter
17 Fuel Shut Off
18 Spark Arrestor
19 COsense Red (Hazard) (if equipped)
20 COsense Yellow (Fault) (if equipped)
21 Battery (if equipped)
22 Engine ON/OFF Switch (if equipped)
