GENERATOR COMPONENTS
Please familiarize yourself with the locations and functions of the various components and controls
of your generator.

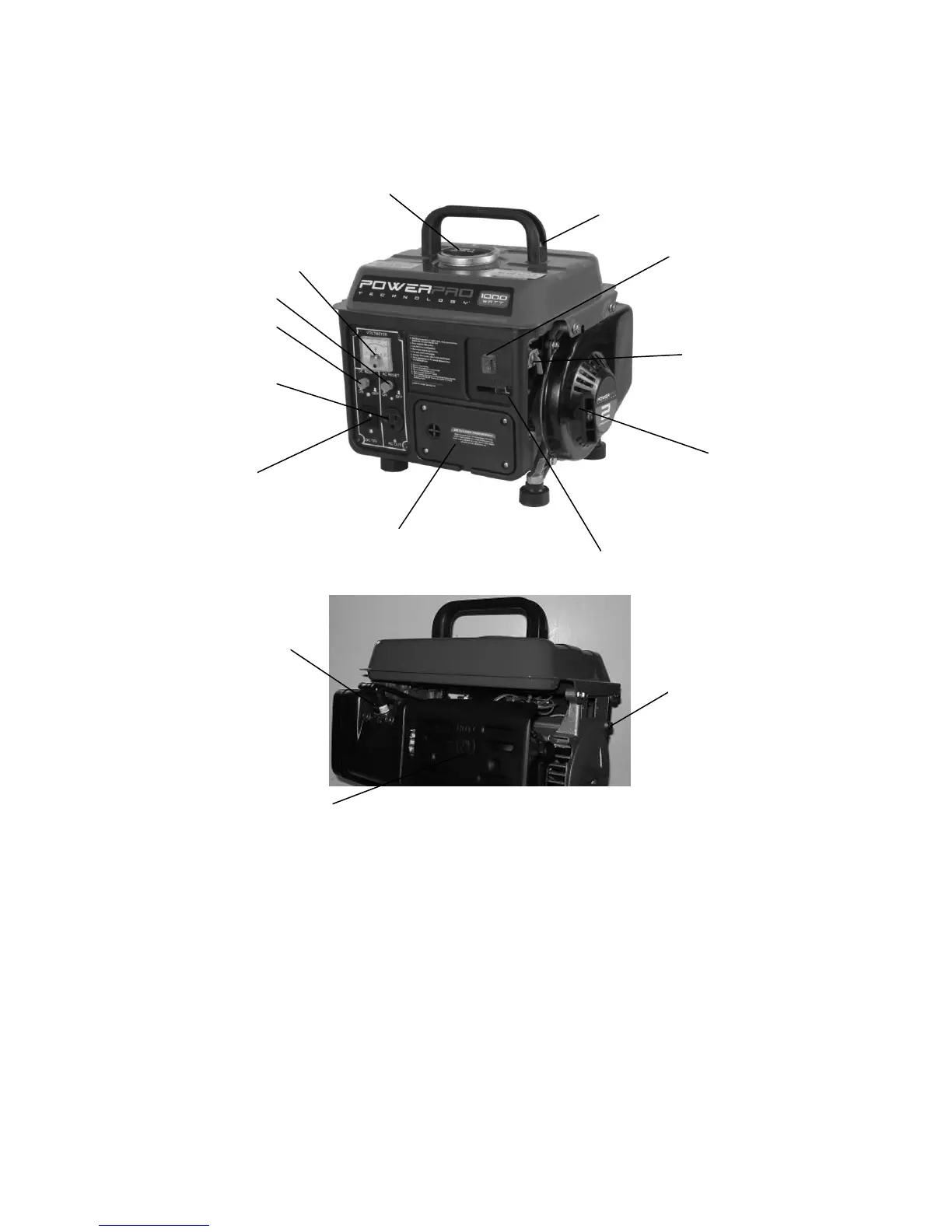

Fig.2 - Component Location
(1) Fuel Cap- Access to the fuel tank for adding
fuel.
(2) Volt Meter-Shows the voltage number.
(3) AC Circuit Reset Button-Reset button that
protects the generator from AC outlet overload.
(4) DC Circuit Reset Button- Reset button that
protects the generator from DC outlet overload.
(5) 120 Volt AC Receptacle- To connect electrical
devices that run on 120Volt, 60 Hz, single phase, AC
current.
(6) DC Terminal- For charging 12 V batteries.
(7) Air Cleaner- a removable, cleanable, sponge-like
element that limits the amount of dirt pulled into the
engine.
(8) Choke Lever- Adjusts the amount of air let into the
engine.
(9) Recoil Starter- Pull-cord for starting engine.
(10) Fuel Valve- Allows fuel to enter engine.
(11) Engine Switch- Used to start/stop engine.
(12) Carrying Handle – for easy transport.
(13) Spark Plug- Provides proper engine ignition.
(14) Muffler- Reduces engine noise.
(15) Ground Terminal- Connect grounding wires here
to properly ground unit.
