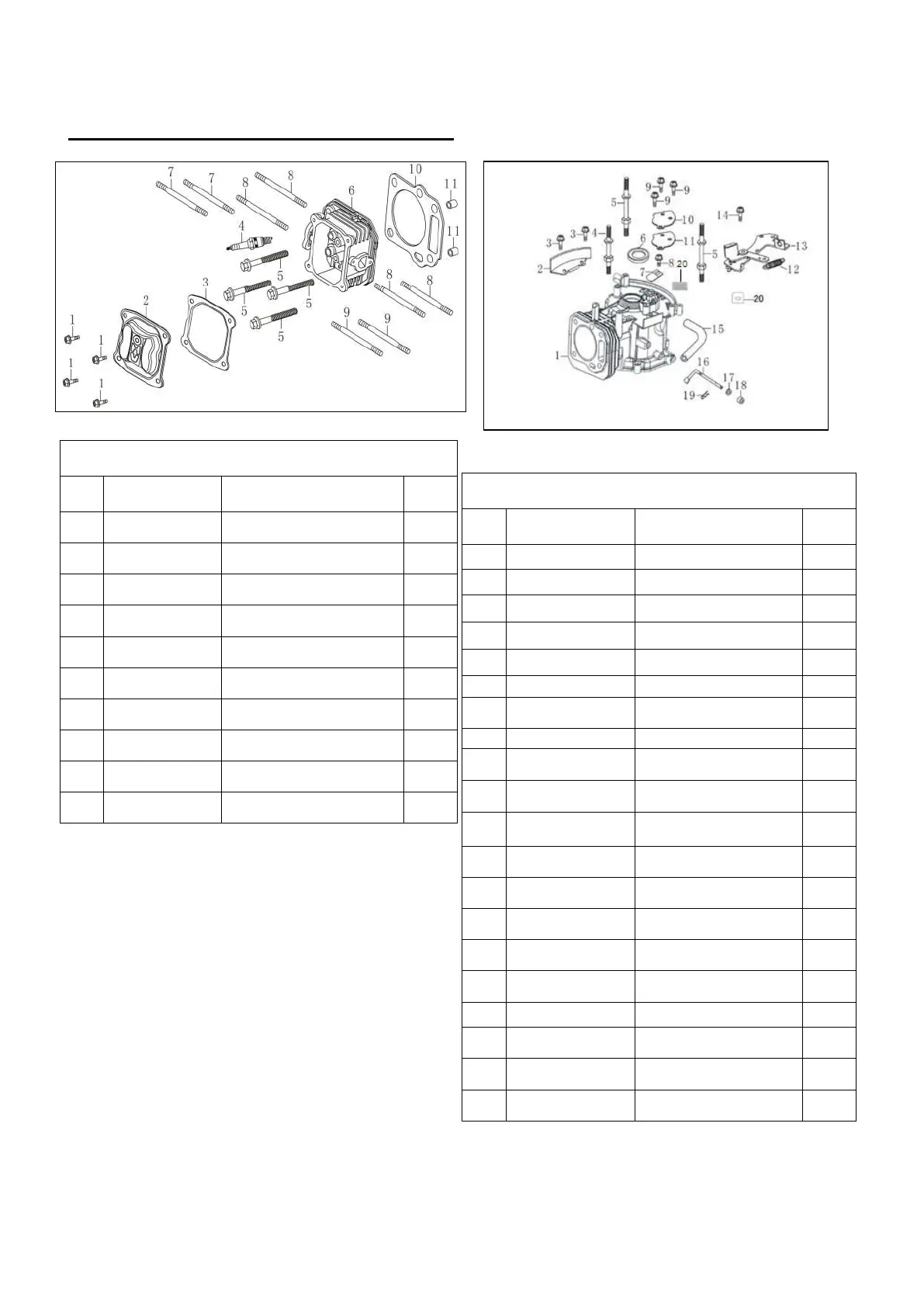

Engine explode view and part list
CYLINDER HEAD
Item Stock# Description Qty
1 380020128-0001 BOLT,HEXAGONAL 5
2 120230098-0001 COVER COMP. HEAD 1
3 120250037-0001 PACKING, HEAD COVER 1
4 270960029-0001 PLUG,SPARK 1
5 380140339-0001 BOLT, CONNECTING,ROD 4
6 120080553-0001
HEAD COMP，CYLINDER
1
7 380180101-0001 BOLT, STUD 2
8 380180144-0001 BOLT, STUD 2
9 120150197-0001 GASKET, CYLINDER 1
10 380600117-0001 PIN, DOWEL 2
CRANK CASE
Item Stock# Description Qty
1 110810194-0001 CRANK CASE 1
2 160200048-0001 SHIELD,TANK SIDE 1
3 380140013-0005 BOLT,FLANGE 2
4 380850002-0001 BOLT,STUD 1
5 380850006-0001 BOLT,STUD 2
6 380650335-0001 OIL SEAL 1
7 140250006-0001 REED VALVE 1
8 380140037-0003 BOLT,FLANGE M6*10 1
9 380140441-0001 BOLT,FLANGE M6*14 3
10 110840011-0001
CAP,BREATHER
CHAMBER
1
11 110850011-0001
PACKING，BREATHER
CHAMBER
1
12 381140465-0001 TENSION SPRING 1
13 293030012-0001 FLYWHEEL BRAKE 1
14 380140086-0002 BOLT,FLANGE 1
15 380740466-0001
TUBE，BREATHER
1
16 171630010-0001
SHAFT,GOVERNOR
ARM
1
17 380450527-0001 WASHER 1
18 380650338-0001 OIL SEAL 1
19 381350004-0001 PIN,LOCK 1
20 150290026-0001 OIL STRAINER 1
