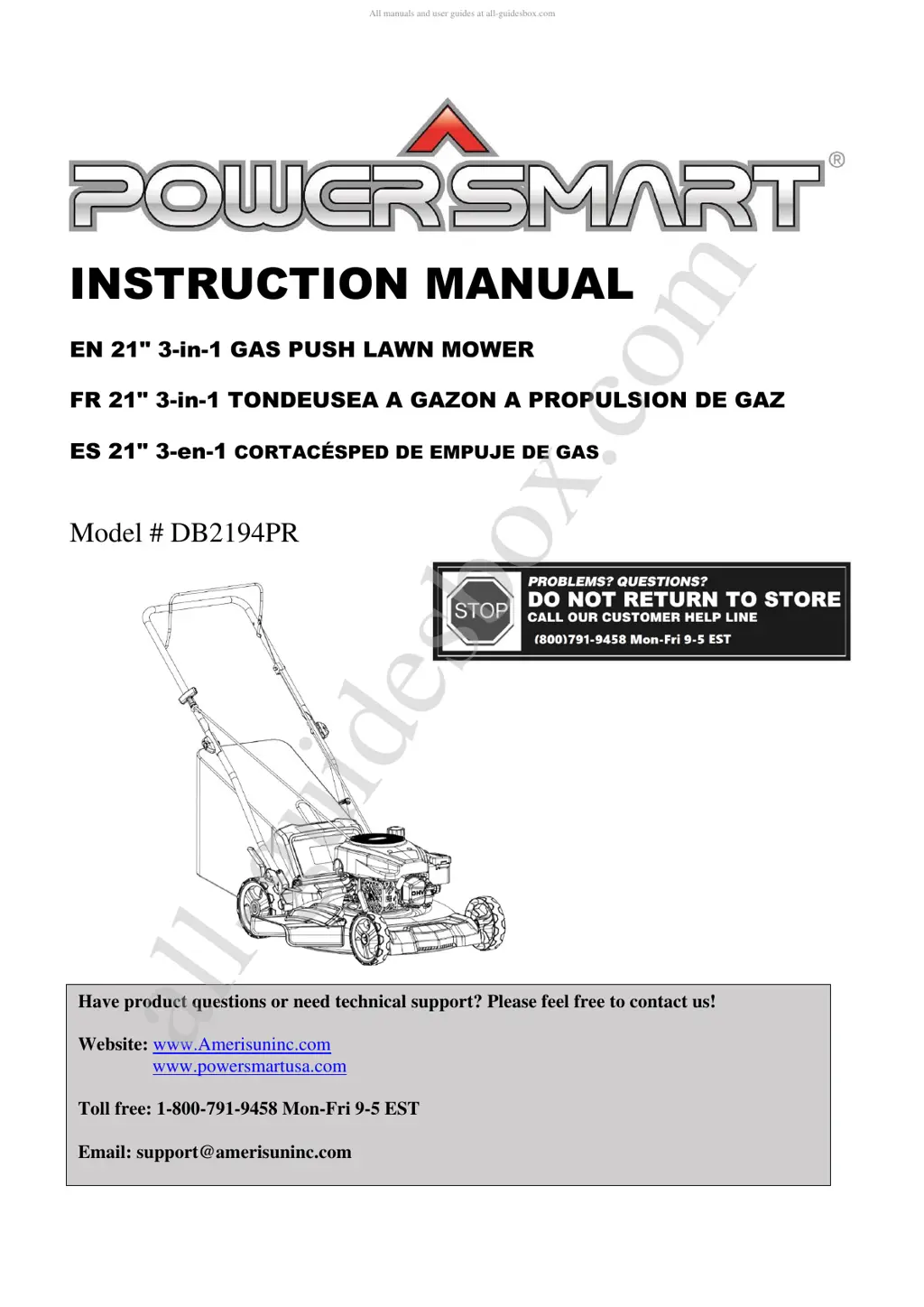

INSTRUCTION MANUAL

EN 21" 3-in-1 GAS PUSH LAWN MOWER

FR 21" 3-in-1 TONDEUSEA A GAZON A PROPULSION DE GAZ

ES 21" 3-en-1 CORTACÉSPED DE EMPUJE DE GAS

Model # DB2194PR

Have product questions or need technical support? Please feel free to contact us!

Website: www.Amerisuninc.com

www.powersmartusa.com

Toll free: 1-800-791-9458 Mon-Fri 9-5 EST

Email: support@amerisuninc.com

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

Questions and Answers:

G
Gabriel WebbJul 28, 2025
Why Powersmart DB2194PR Lawn Mower engine fails to start?
- L
  Leah MillerJul 28, 2025
  If your Powersmart Lawn Mower engine won't start, several factors could be at play. First, ensure the engine start/stop lever is engaged. Check that the spark plug wire is securely connected. If the fuel tank is empty or contains stale fuel, refill it with clean, fresh gasoline. Try pressing the primer bulb to prime the engine. Inspect the spark plug for faults, cleaning, adjusting the gap, or replacing it if necessary. A blocked fuel line could also be the culprit, so clean it out. Lastly, if the engine is flooded, wait a few minutes before attempting to restart it, and avoid priming it again.
J
Jessica ScottAug 1, 2025
What to do if Powersmart Lawn Mower gives an uneven cut?
- J
  James MunozAug 1, 2025
  If your Powersmart Lawn Mower is giving an uneven cut, it could be due to excessively high grass. Mow once at a high cutting height, then mow again at the desired height, or make a narrower cutting path. Another reason could be a dull blade, which you should sharpen or replace.
P
Paul GrayAug 5, 2025
How to fix Powersmart DB2194PR that idles poorly?
- S
  Shawn HarperAug 5, 2025
  If your Powersmart Lawn Mower idles poorly, it could be because the spark plug is fouled, faulty, or the gap is too wide. Reset the gap or replace the spark plug. Another cause might be a dirty air cleaner; clean or replace the filter.
J
Joshua BrownAug 10, 2025
Why Powersmart Lawn Mower engine runs erratic?
- D
  David AshleyAug 10, 2025
  If your Powersmart Lawn Mower engine runs erratically, it could be due to a loose spark plug wire; connect and tighten it. Alternatively, a blocked fuel line or stale fuel could be the issue; clean the fuel line and fill the tank with fresh gasoline, also drain the carburetor bowl. Water or dirt in the fuel system can also cause this; drain the fuel tank and refill with fresh fuel. Finally, a dirty air filter may be the cause; clean or replace it.
J
jaclynhowardAug 14, 2025
Why Powersmart Lawn Mower has excessive vibration/noise?
- K
  kelli19Aug 14, 2025
  If your Powersmart Lawn Mower is vibrating or making excessive noise, it might be because the blade is loose or unbalanced; tighten and balance it. Another cause could be a bent or damaged blade, which would require replacing the blade.
L
Laurie ReynoldsAug 18, 2025
Why Powersmart DB2194PR Lawn Mower engine overheats?
- M
  Miss Kelly Ramos DDSAug 18, 2025
  Your Powersmart Lawn Mower engine may be overheating because the engine oil level is low; fill the crankcase with the proper oil. Another potential reason is restricted airflow; clean the area around and on top of the engine to ensure proper ventilation.
J
joseph71Aug 23, 2025
Why Powersmart DB2194PR Lawn Mower will not mulch grass?
- C
  Colton FrankAug 23, 2025
  Your Powersmart Lawn Mower might not mulch grass effectively if the grass is wet. Avoid mowing when the grass is wet; wait until it is dry to cut.

Powersmart DB2194PR Specifications

General

Power Source	Gasoline
Engine Displacement	196 cc
Cutting Width	21 inches
Drive Type	Self-Propelled
Mulching	Yes
Side Discharge	Yes
Rear Bag	Yes
Start Type	Recoil
Engine Type	4-stroke
Wheel Size	8 inches (front), 11 inches (rear)
Oil Capacity	16.9 oz
Cutting Height	1.25 to 3.75 inches

Summary

INTRODUCTION AND SUPPORT

Contact Information and Inquiries

Provides contact details for customer service and product questions.

SAFETY INFORMATION

General Safety Procedures

Guidelines for safe operation, including hazards like carbon monoxide and fuel.

Important Safety Instructions

Detailed safety rules for operation, preparation, and children.

Slope, Fire, Fuel, Hauling, and Service Safety

Precautions for slopes, fire, fuel handling, transport, and servicing.

Warning Label Instructions

Explanation of various warning symbols and their meanings.

KNOWING YOUR LAWN MOWER

Component Identification

Diagram and list identifying parts of the lawn mower.

LAWN MOWER PREPARATION

Unpacking and Assembly

Steps for unpacking parts and attaching handles.

Attaching Handles

Detailed instructions for assembling the lower and upper handles.

Discharge and Catcher Setup

Procedures for side discharge and attaching the grass catcher.

OPERATION

Fuel and Oil Fill-Up

Instructions for adding fuel and engine oil before operation.

Engine Start/Stop and Mowing

How to start, stop, and safely operate the mower.

Mowing Modes

Guidance on using side discharge and rear bagger modes.

MAINTENANCE

Deck, Blade, and Oil Maintenance

Procedures for cleaning the deck, blade care, and oil checks.

Air Cleaner and Spark Plug Maintenance

Steps for maintaining the air cleaner and spark plug.

Maintenance Schedule

A table outlining routine maintenance tasks and intervals.

STORAGE AND TROUBLESHOOTING

Storage Preparation

Instructions for preparing the mower for extended storage.

Troubleshooting Common Issues

Table listing common problems and their resolutions.

PARTS LISTS AND WARRANTY

Exploded Views and Parts Lists

Diagrams and lists identifying mower and engine parts.

Limited Warranty Information

Details of the product warranty coverage and limitations.
