3. Remove (Qty. 4) hex nuts and remove big bottom plate.
4. Separate the belt from the drive pulley as shown in step 4.
5. Remove the auger belt from bottom as shown in step 5.
AUGER BELT INSTALLATION
WARNING! Entanglement Hazard – Before performing any service procedures, make sure the
battery is off to ensure the machine cannot accidently start.

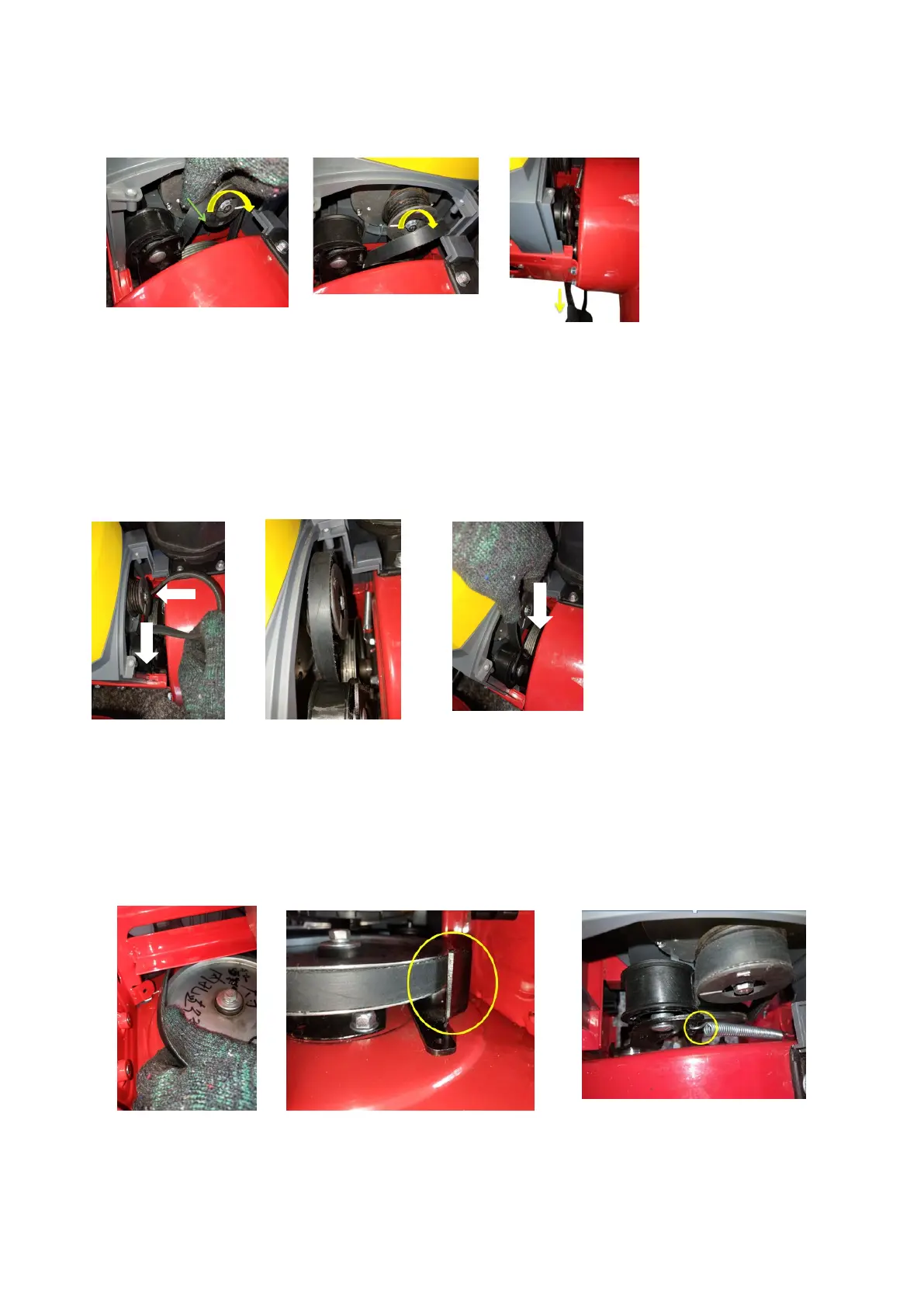

1. Insert belt and install to the small pulley as shown in step 1.
2. Press the belt on the small pulley as shown in step 2.
3. Install another side belt to big pulley from bottom as shown in step 3. Make sure the belt is
between big pulley and tension plate.
4. Attach the tension spring to the tensioning plate as shown in step 4.
5. Install belt cover and bottom plate.
