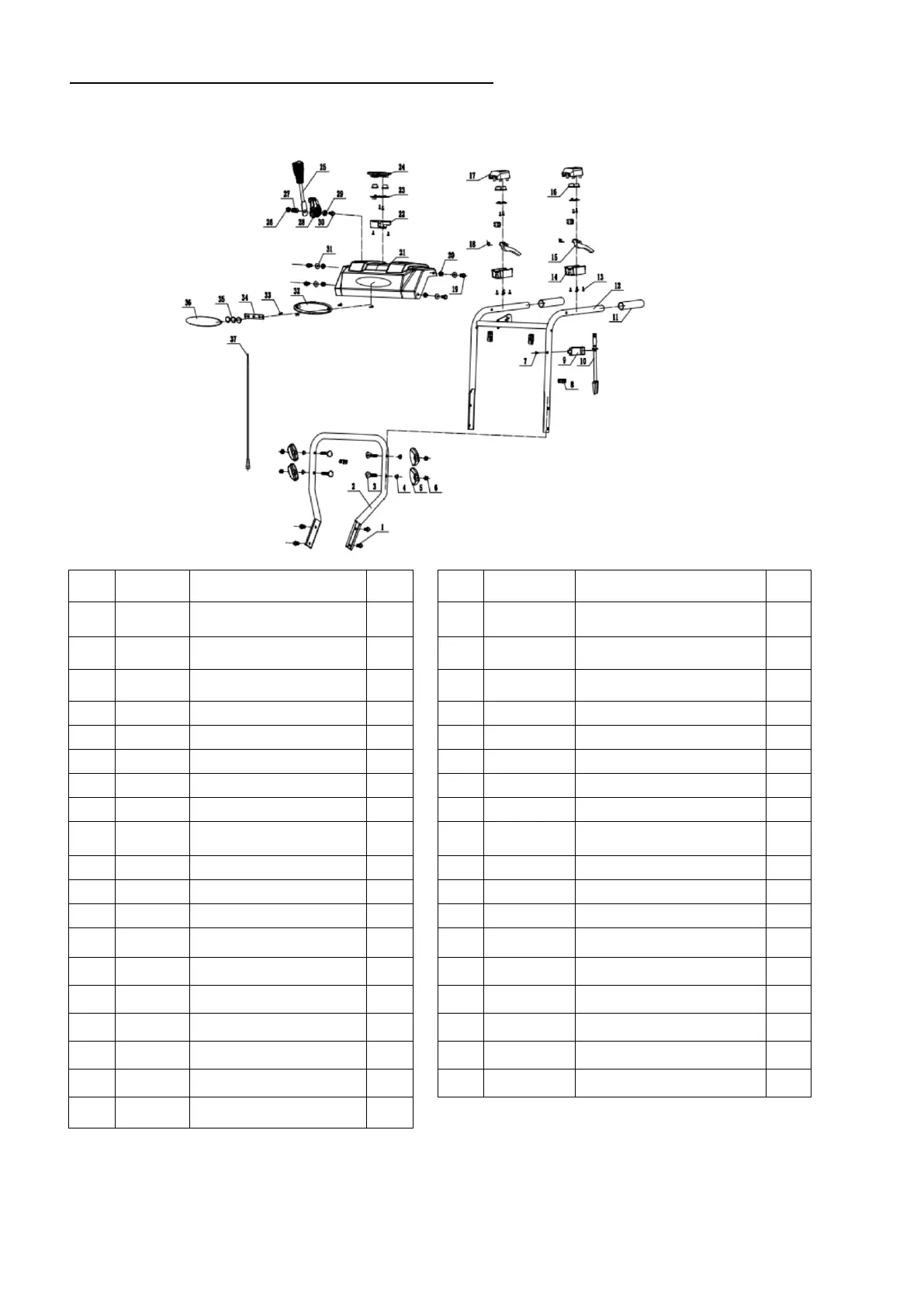

EXPLODED VIEW AND PARTS LIST
Panel Assembly
Part Stock# Description Qty
Part Stock# Description Qty
1 303020240 Hex Flange Bolt M8x20 4
20 303030077 Flange Lock Nut M8 4
2 303160873 Lower Handle 1
21 203050637 2805 Panel 1
3 303020140 T-Screw M8×50 4
22 203010876 PC Board Fixed Back Cover 1
4 303043010 Concave pad 8 4
23 301013039 PC Board 1
5 203021419 Knob 4
24 203010877 PC Board Fixed Front Cover 1
6 303030097 Nromal Nut M8 4
25 203070126 Control Handle Assembly 1
7 303010366 Screw 6×16 1
26 303030077 Flange Lock Nut M8 1
8 203050519 Clip 4
27 303130074 Press Spring 1
9 203050512 Rocker Fixing Seat 1
28 203021099 Drive Cable Control Panel 1
10 203050057 Clean Out Tool 1
29 203020380 Dental Pad 1
11 203070123 Handle Cover 2
30 303020312 Hex Bolt M8×55 1
12 303181295 Upper Handle Welded 1
31 303042013 Flat Washer 8 4
13 303010026 Screw 4.2×12 20
32 203050561 Light Back Cover 1
14 203010908 Lower Cover of Switch Box 2
33 303010313 Screw 4x12 2
15 203010909 Switch Box Handle 2
34 301013042 Light Plate 1
16 203010910 Button 6
35 203030007 Transparent lamp Cup 3
17 203010911 Upper Cover of Switch Box 2
36 203030008 Transparent lamp Cover 1
18 303130361 Trigger Torsional Spring 1 2
37 301040162 Control Signal Cable 1
19 303020275 Hex Bolt M8x40 4
To Next Page
