Powersmart DB7624E - Page 27

27

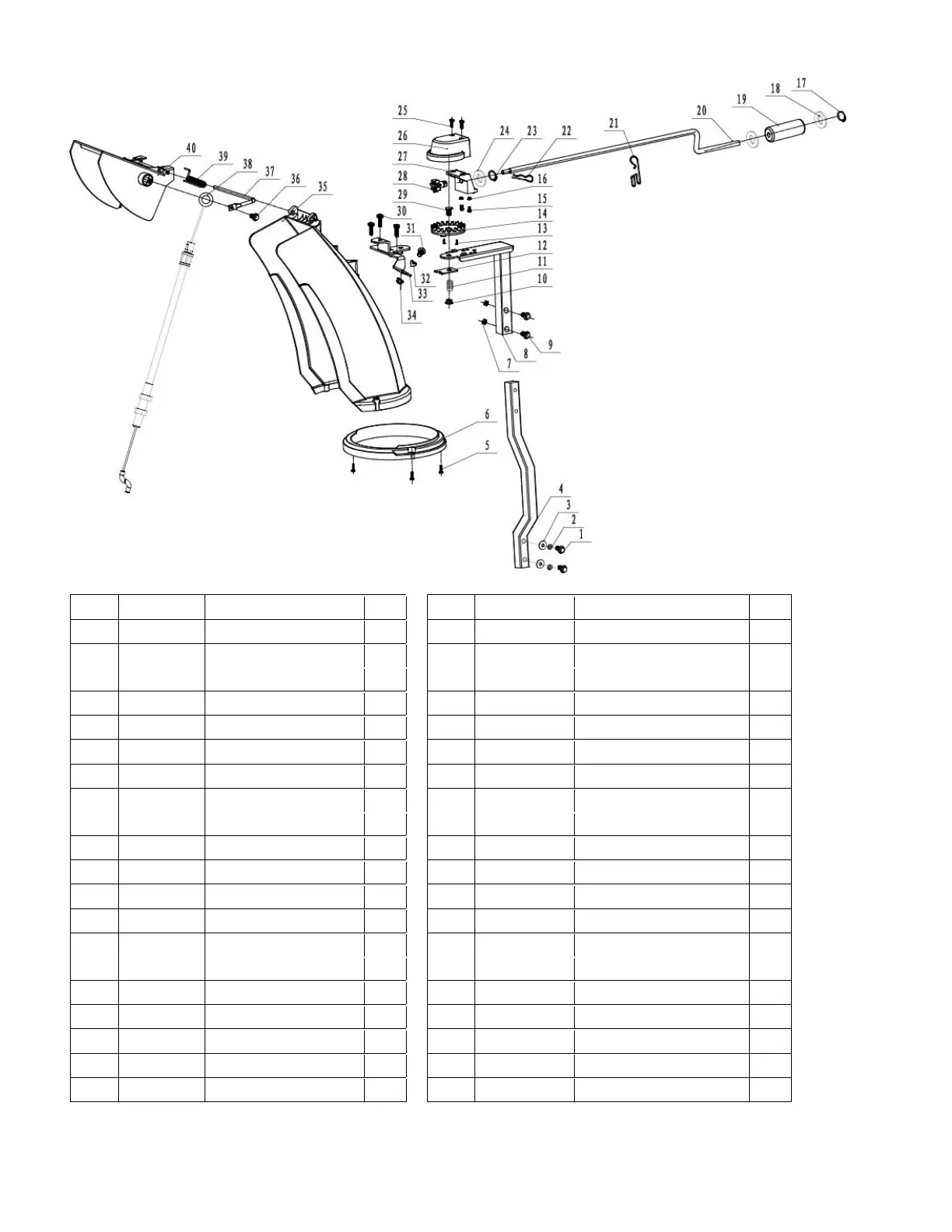

Chute Assembly (All Parts Numbers Begin with C)
Item
Stock #
Description
Qty
Item
Stock #
Description
Qty
1
303020275
Bolt M8x40
2
21
303130339
Clip
1
2
303041022
Spring Washer 8
2
22
303160737
Cutter Pin
1
3
303042023
Flat washer 8
2
23
303050032
Snap Ring 13
1
4
303080523
Support Tube
1
24
303042130
Flat Washer 13
1
5
303010176
Screw
3
25
303010270
Screw 4x14
2
6
203010820
Discharge Chute Seat
1
26
203010825
Steering Gear Cover
1
7
303030087
locknut M6
2
27
203010818
Gear Holder
1
8
303180953
Chute Direction Base
1
28
303060131
Steering Pinion Gear
1
9
303020546
Flange Bolt M6x40
2
29
303020165
Square Neck Bolt M8×55
1
10
303030077
Locknut M8
1
30
303010176
Screw 6x16
3
11
303130325
Spring
1
31
303020246
Flange Bolt M6×16
1
12
303071021
Bracket
1
32
303071025
Tension Bracket
1
13
303010270
Screw 4x14
2
33
303071017A
Gear Bracket
1
14
203021301
Steering Gear
1
34
303030032
Locknut M6
1
15
303020246
Flange Bolt M6x16
2
35
203050376
Discharge Chute
1
16
303030032
Locknut M6
2
36
303010176
Screw 6x16
1
17
303050029
Snap Ring 10
1
37
303160657
Fixed Link
1
18
303042004
Flat Washer 10
2
38
302080047
Chute Deflector Cable
1
19
203020371
Chute Direction Knob
1
39
303130324
Tension Spring
1
20
303160662
Z-lever
1
40
203050377
Chute Deflector
1
