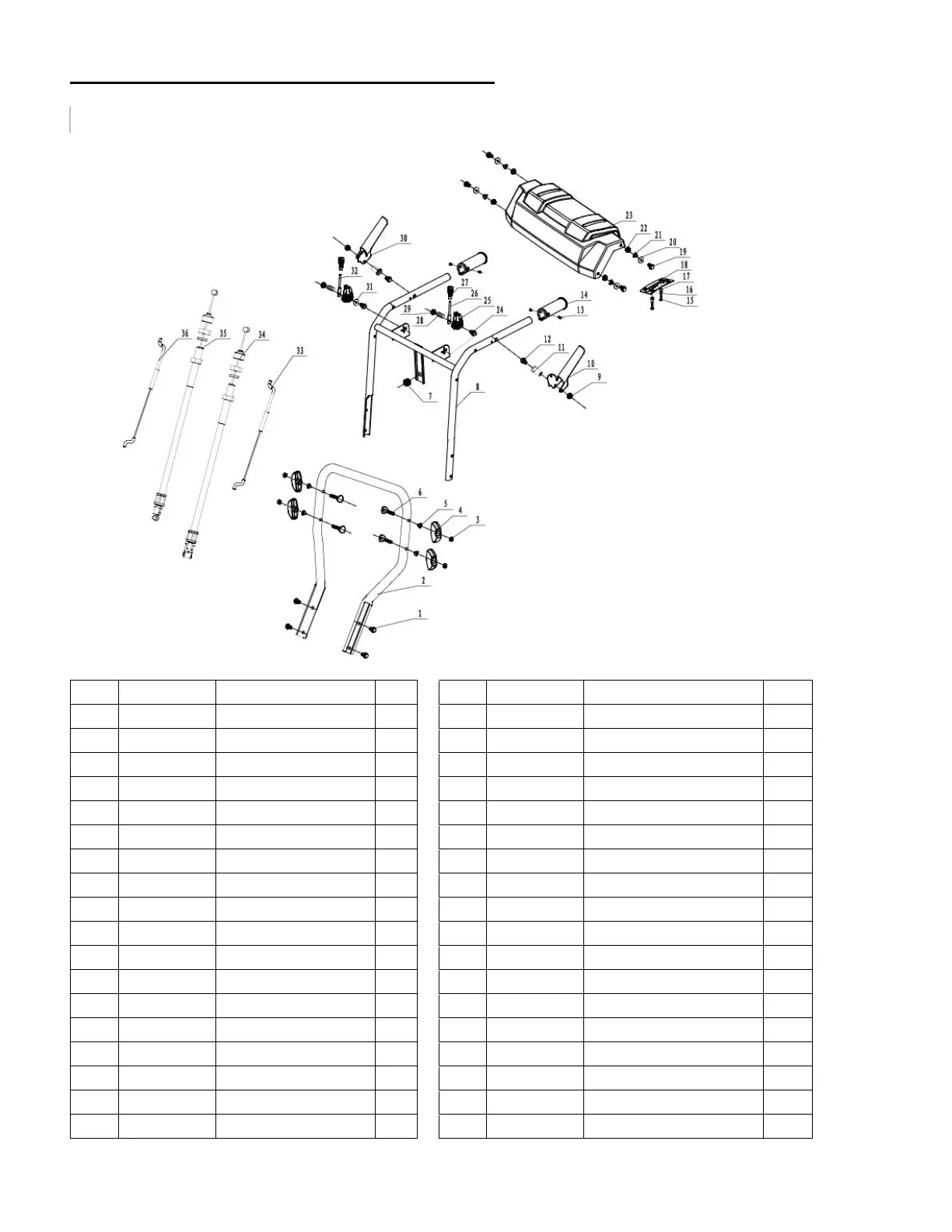

EXPLODED VIEW AND PARTS LIST
Panel Assembly (All Parts Number Begin with P)
Item
Stock #
Description
Qty
Item
Stock #
Description
Qty
1
303020240
Flange Screw M8×20
4
19
303020275
Flange Screw M8x40
4
2
303080530
Lower Handle
1
20
303042013
Flat Washer 8
4
3
303030026
Nut M8
4
21
303043010
Saddle Washer 8
4
4
203020865
Knob
4
22
303030036
locknut M8
4
5
303043010
Saddle Washer 8
4
23
203050373
Operation Panel
1
6
303020139
T-screw M8X55
4
24
303020312
Flange Screw M8×55
2
7
203020881
Rubber Washer
1
25
203021099
Cable Holder
2
8
303180951
Upper handle
1
26
303071016
Control Rod
1
9
303030025
Cap Nut M6
2
27
203070079
Knob
2
10
303070273B
Auger Control
1
28
303130074
Press Spring
2
11
303160235
Spacer
2
29
303020380
Locknut M8
2
12
303020297
Flange Screw M6×4
2
30
303070272B
Drive Control
1
13
303010237
Screw ST4x10
4
31
203020380
Tooth Washer
1
14
203070007
handle Grip
2
32
303160748
Shift Control Rod
1
15
303010176
Screw M6x16
2
33
303200103
Upper Auger Cable
1
16
303042042
Flat Washer 6
2
34
303200104
Shift Control Cable Right
1
17
303160746
Cushion Cover
2
35
303200105
Shift Control Cable Left
1
18
303071057
Shift Plate
1
36
303200106
Upper Drive Cable
1
