GRASS CATCHER

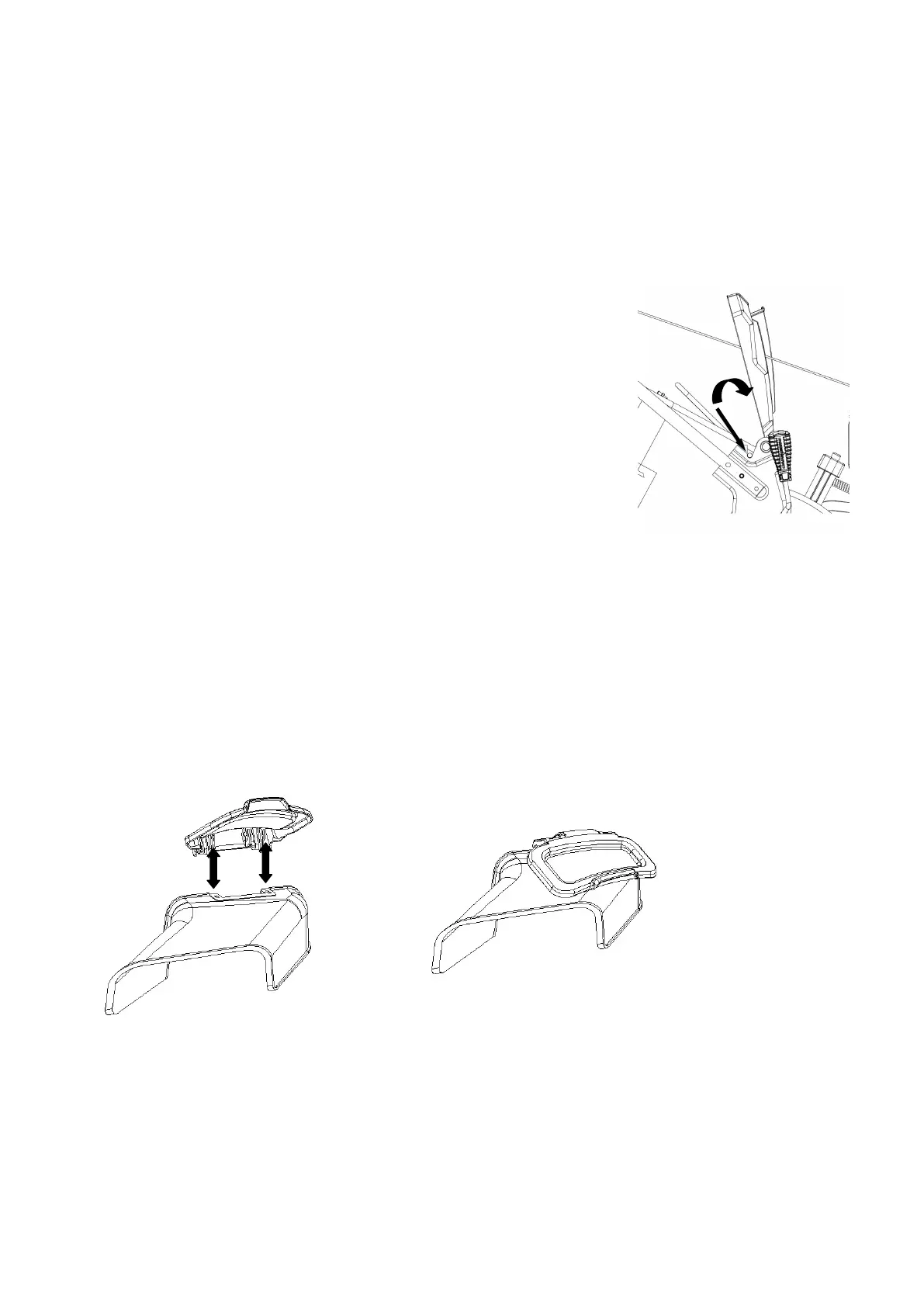

Attach grass catcher
1. Lift mower rear discharge door.
2. Place grass catcher into the slots in the handle brackets.
3. Release the rear discharge door so that it rests on the grass catcher.
Caution: Make sure that the Mulching Control Lever is in the bagging
position
Remove grass catcher
1. Lift mower rear discharge door.
2. Lift grass catcher up and off the slots in the handle bracket.
3. Move the Mulching Control lever to the mulching position .
4. Release mower rear discharge door to allow it to close rear opening of
mower.
SIDE DISCHARGE CHUTE
To convert mower for side discharge, ensure that the mulching control lever is in the mulching position,
the grass catcher has been removed and that the rear discharge door is closed.
1. Lift the spring-loaded discharge cover located on the side of the mower.
2. Slide two hooks of the side discharge chute under the hinge pin and lower the spring on the side
discharge cover.
Caution: Do not attempt to remove the permanently mounted spring loaded side discharge cover at any
time.
