GRASS CATCHER

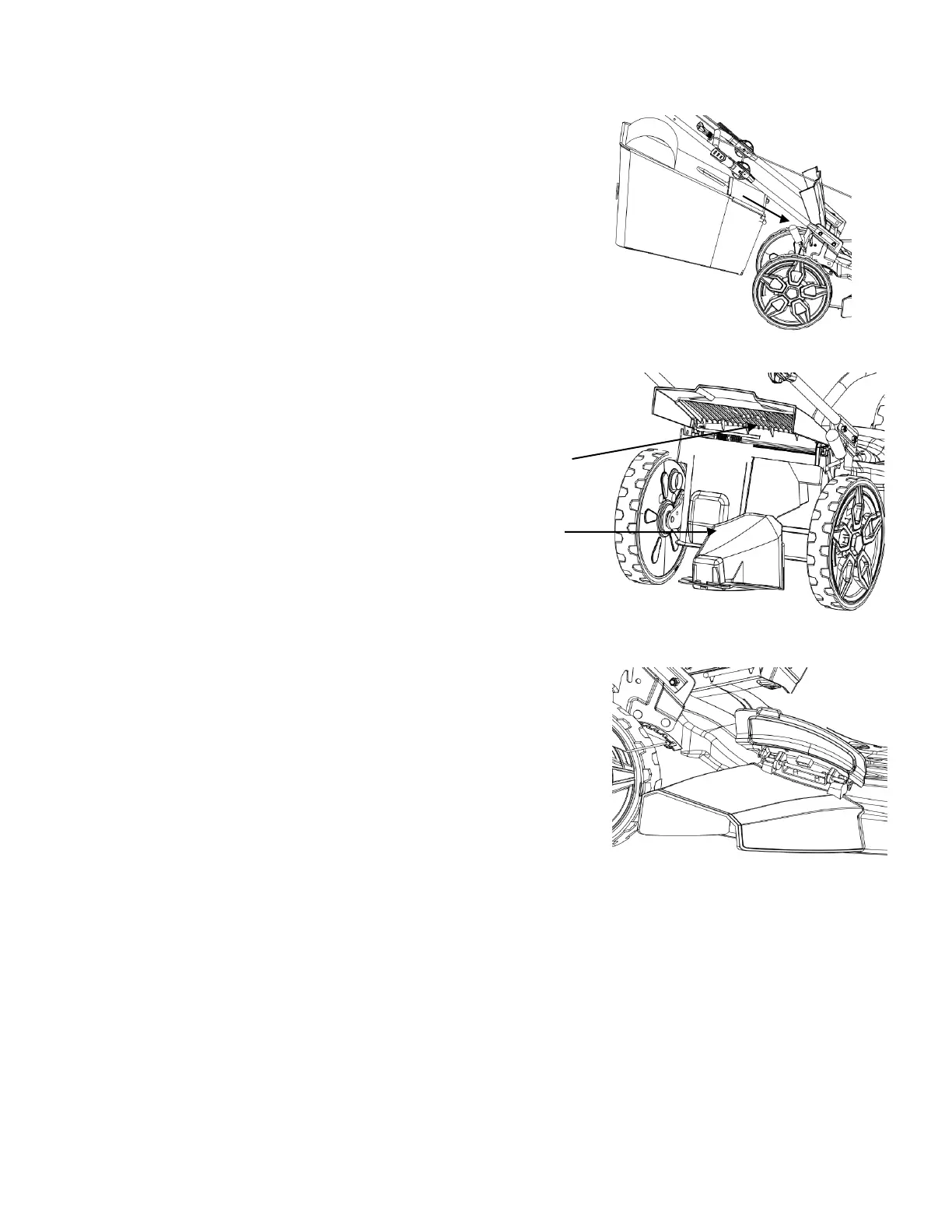

Attach grass catcher
1. Lift mower rear discharge door.
2. Place grass catcher into the slots in the handle brackets.
3. Release the rear discharge door so that it rests on the grass catcher.
Caution: Make sure that the mulch plug adapter has been removed
from of the rear deck door’s opening.
Remove grass catcher
1. Lift mower rear discharge door.
2. Lift grass catcher up and off the slots in the handle bracket.
3. Slide the mulch plug into the ejector opening.
4. Release mower rear discharge door to allow it to close rear opening
of mower.
SIDE DISCHARGE CHUTE
To convert mower for side discharge, ensure that the mulch plug had
been inserted, the grass catcher has been removed and that the rear
discharge door flap is closed.
1. Lift the spring-loaded discharge cover located on the side of the
mower.
2. Slide two hooks of the side discharge chute under the hinge pin and
lower the spring on the side discharge cover.
Caution: Do not attempt to remove the permanently mounted spring loaded side discharge cover at any
time.
Rear Discharge
Door
Mulch
Plug
