KNOWING YOUR LAWN MOWER

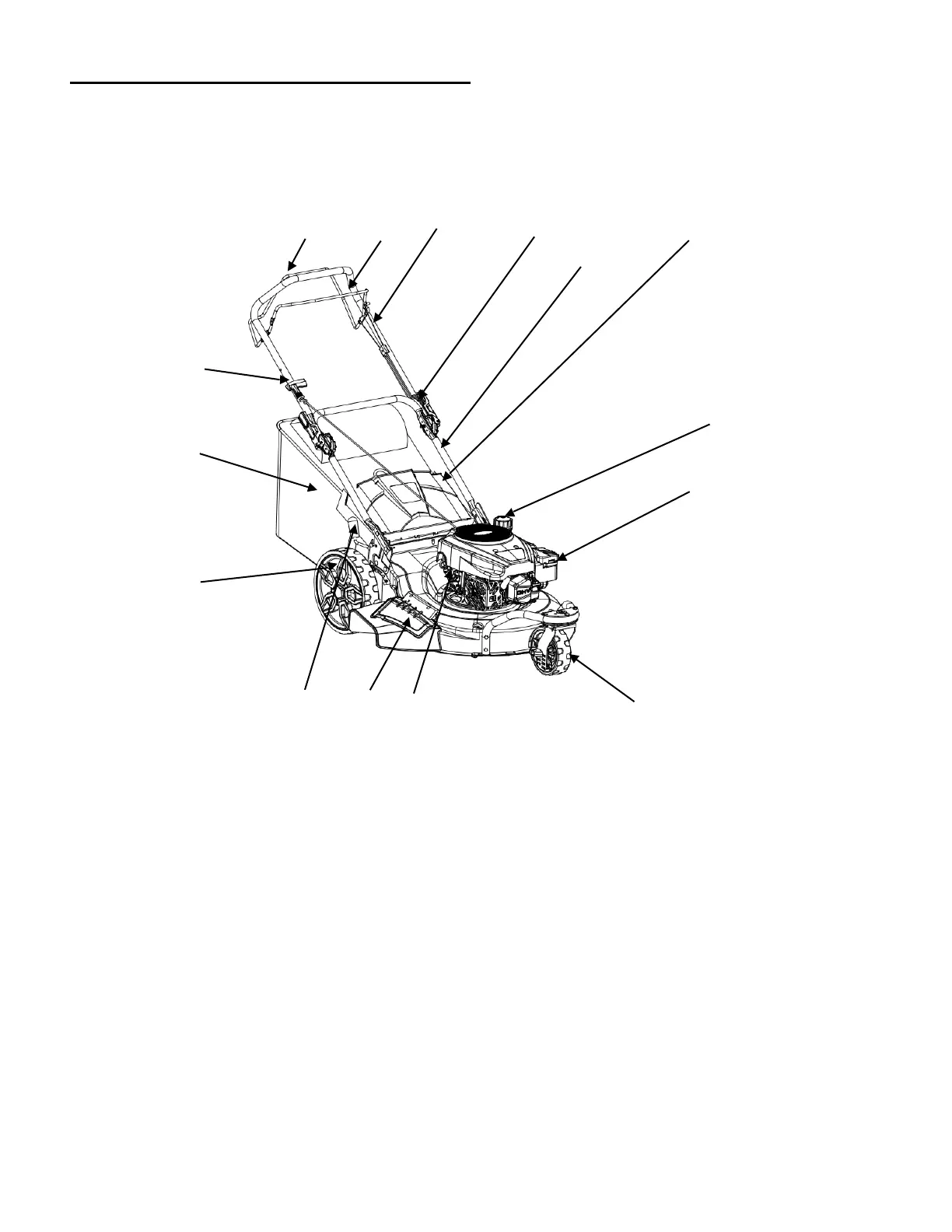

Please use the illustration below to familiarize yourself with the location and function of the components
that control of your lawn mower.
1 Recoil Starter handle 9 Fuel tank cap
2 Grass catcher 10 Rear discharge door
3 Rear wheel 11 Lower handle
4 Cutting height adjustment lever 12 Quick handle lock lever
5 Oil dipstick 13 Upper handle
6 Side discharge cover 14 Engine start/stop lever
7 Front wheel 15 Drive control bar
8 Primer bulb
15 14 13
12 11 10
4 6 5
9
8
7
1
2
3
