15

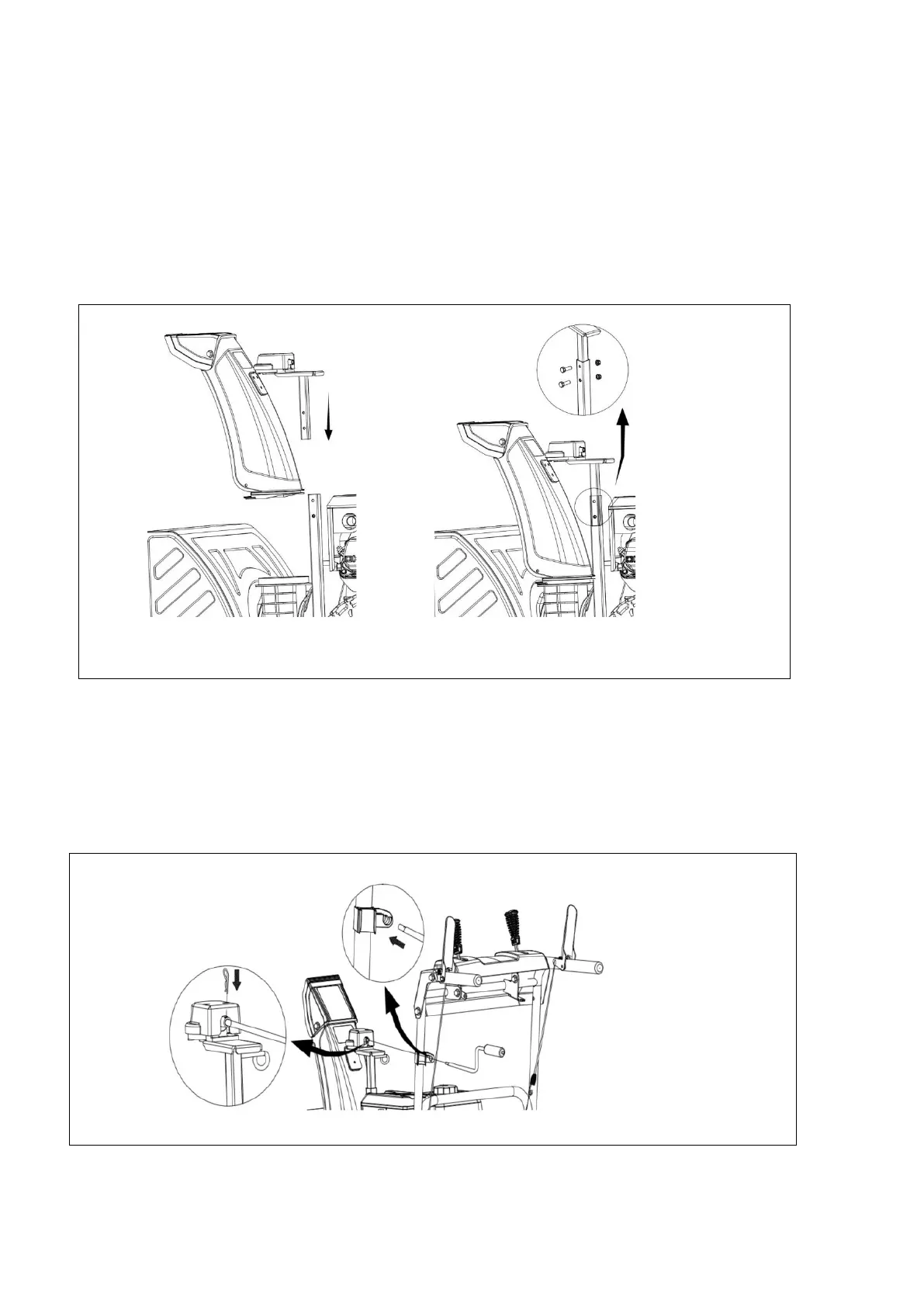

Step 4: Installing The Chute Assembly
1.
Insert Lower Discharge Chute/Support Tube Assembly into the designated Chute opening for the
Lower Discharge Chute, while inserting the Support Tube into the designated base of the Frame.
(See Figure 5).
2.
Secure Support Tube to base with (2) Screws and nuts provided.
Figure 5
Step 5: Installing the Chute Handle
1.
Slide Chute Handle through Chute Handle Guide near the Upper Panel, as indicated on Figure 6.
2.
Attach Chute Handle to base of Chute Gear Connection and secure with Cotter Pin, as indicated on
Figure 6.
