Powersmart PSSHD24 - Exploded View and Parts List

28

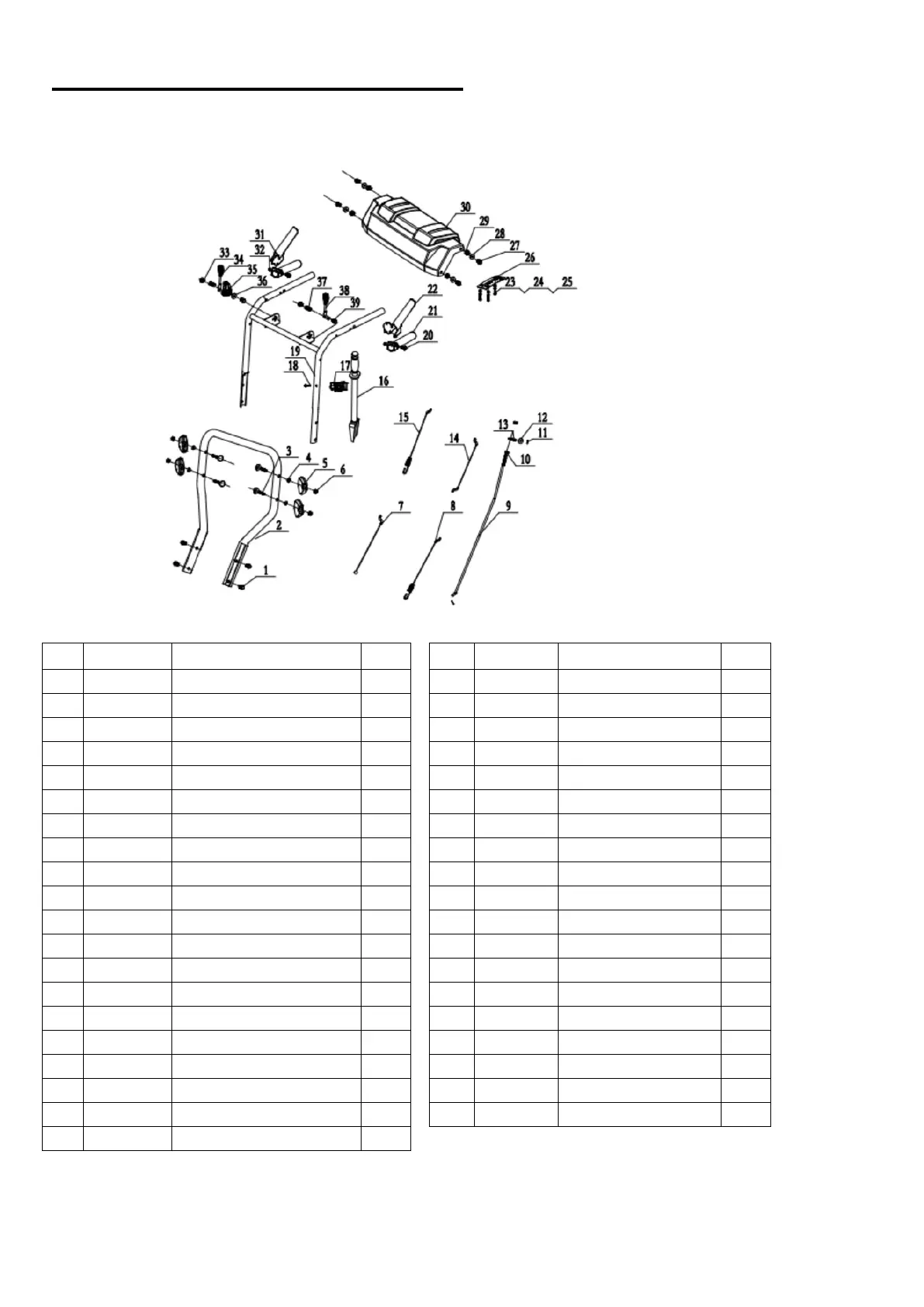

EXPLODED VIEW AND PARTS LIST
Panel Assembly
Item Stock# Description Qty Item Stock# Description Qty
1 303020498 Hex Flange Screw M8X18 4 21 203070105 Handle Cover 2
2 303080555 Lower Handle 1 22 303181183 Left Operation Trigger 1
3 303020461 Washer Φ8 4 23 303010193 Screw 6×16 3
4 303043010 T-screw M8×55 4 24 303042042 Flat Washer φ6×φ16×2 3
5 203020336A Knob 4 25 303160746 Cushion Cover 3
6 303030066 Nut M8 4 26 303071343 DB7109 Gear Plate 1
7 303200050 Lower Drive Cable 1 27 303020275 Hex Washer Bolt M8X40 4
8 303200012 Lower Auger Cable 1 28 303042013 Flat Washer φ8×φ22×2 4
9 303071442 Speed Control Connection Rod 1 29 303030077 Flange Lock Nut M8 4
10 303030076 Flange Normal Nut M8 2 30 203050373 Panel
1
11 303160846 Dowel Pin φ2 2 31 303071336 Right Operation Trigger
1
12 303042023 Flat Washer φ8×φ18×2 1 32 303030130 Flang Nut
2
13 303123034 Connection Rod Pin Φ7 1 33 303030077 Flang Lock Nut
2
14 303200106 Upper Auger Cable 1 34 203070085 Control Handle
1
15 303200130 Upper Drive Cable 1 35 203021099 Drive Cable Control Plate
1
16 203050057 Clean Out Tool 1 36 203020380 Tooth Gasket
1
17 203050512 Rocker Seat 1 37 303130074 Spring
2
18 303010164 Screw M6×20 1 38 203070102 Control Handle
1
19 303181160A Upper Handle Welding 1 39 303020274 Hex Bolt M8X45
2
20 303020486 Hex Flange Bolt M6X50 2
