30

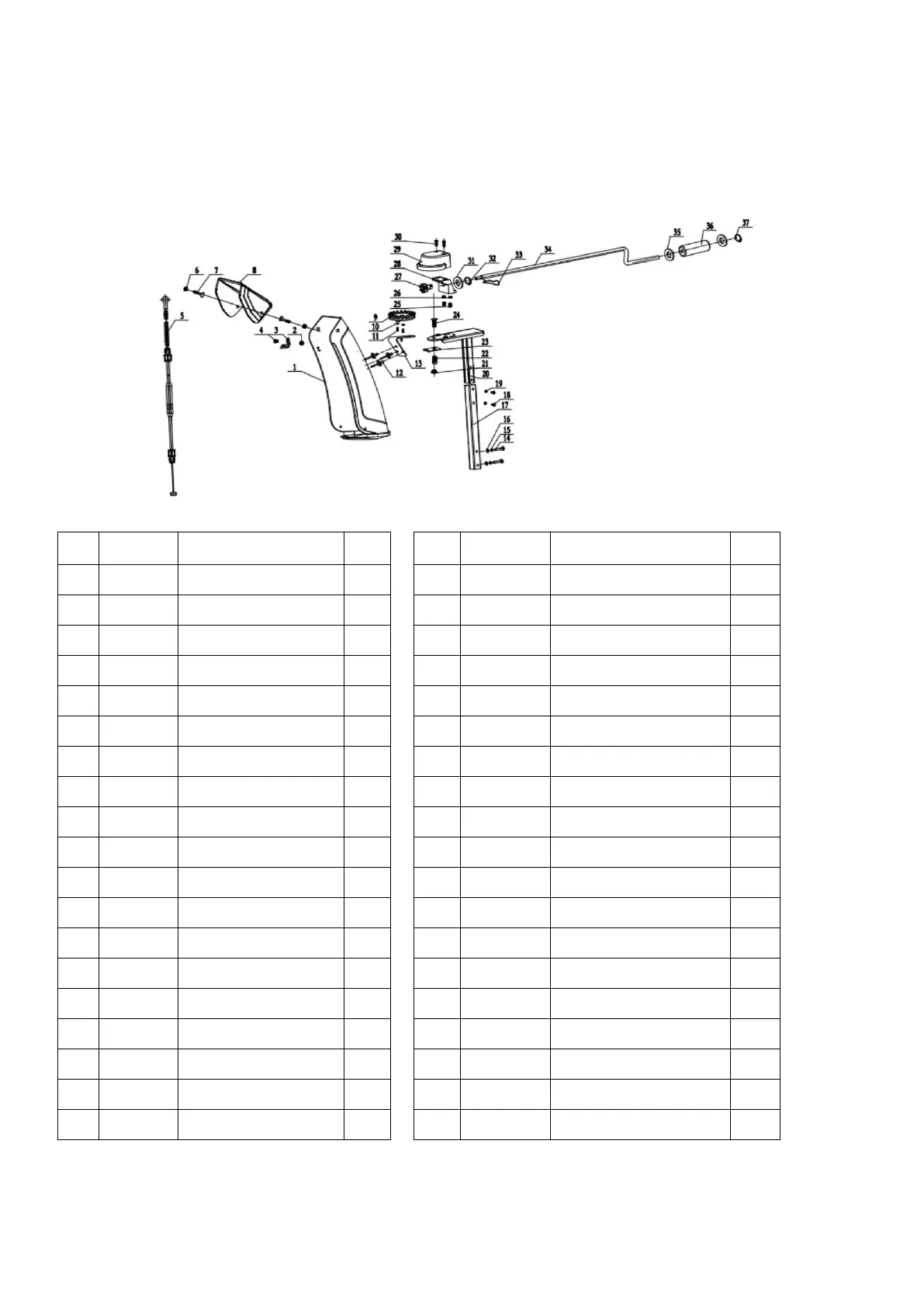

Chute Assembly
Item Stock # Description Qty Item Stock # Description Qty
1 203050514 Chute 1 20 303181164 Small Support Tube Welded 1
2 303030087 Hex Flang Lock Nut M6 1 21 303030077 Locknut M8 1
3 303071344 Cable Seat 1 22 303130325 Pressure Spring φ3 1
4 303020244 Hex Flang Bolt M6×14 1 23 303071056 Locating Plate 1
5 303200117 Chute Cable 1 24 303020165 Square Bolt M8X55 1
6 303030077 Hex Flang Lock Nut M8 2 25 303020246 Bolt M6X16 2
7 303020622 Bolt M8×20 2 26 303030032 Locknut M6 2
8 203050515 Upper Chute 1 27 303060131A Steering Pinion 1
9 203021301 Chute Steering gear 1 28 203010818 Steering Gear Seat 1
10 303042019 Flat washer φ4×φ12×1 2 29 203010817 Steering Gear Cover 1
11 303010026 Screw 4X12 2 30 303010026 Screw 4X12 2
12 306110029 Rivet φ6×10 3 31 303043058 Flat Washer φ13.5×φ24×2 1
13 303071053 Steering Dead Plate 1 32 303050044 Shaft Ring φ13 1
14 303020275 Hex Bolt M8×40mm 2 33 303160845 Dowel Pin φ2.5 1
15 303041022 Spring Washer Φ8 2 34 303160755A Z-long Rocker 1
16 303042023 Flat Washer φ8×φ18×2 2 35 303042004 Flat Washer φ10×φ22×2 2
17 303181010
Chute Support Tube
Welding
1 36 203020371 Rocker Lever 1
18 303020503 Hex Flange Bolt M6×35 2 37 303050029 Shaft Ring φ10 1
19 303030087 Hex Flange Lock Nut M6 2
