Powersmart PSSW24 - Exploded View and Parts List; Panel Assembly

28

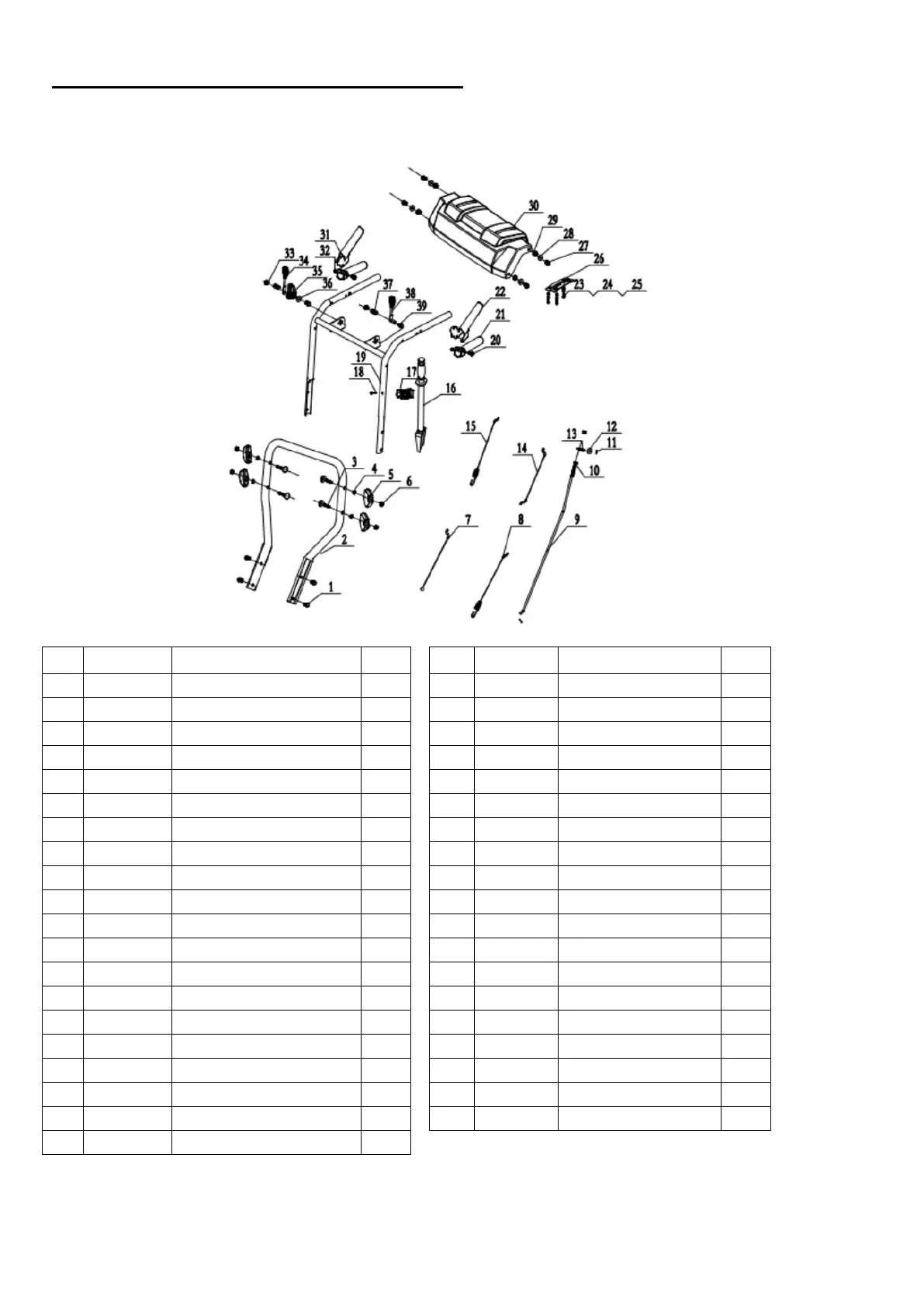

EXPLODED VIEW AND PARTS LIST
Panel Assembly
Item
Stock#
Description
Qty
Item
Stock#
Description
Qty
1
303020498
Hex Flange Screw M8X18
4
21
203070105
Handle Cover
2
2
303080555
Lower Handle
1
22
303181183
Left Operation Trigger
1
3
303020461
Washer Φ8
4
23
303010193
Screw 6×16
3
4
303043010
T-screw M8×55
4
24
303042042
Flat Washer φ6×φ16×2
3
5
203020336A
Knob
4
25
303160746
Cushion Cover
3
6
303030066
Nut M8
4
26
303071343
DB7109 Gear Plate
1
7
303200050
Lower Drive Cable
1
27
303020275
Hex Washer Bolt M8X40
4
8
303200012
Lower Auger Cable
1
28
303042013
Flat Washer φ8×φ22×2
4
9
303071442
Speed Control Connection Rod
1
29
303030077
Flange Lock Nut M8
4
10
303030076
Flange Normal Nut M8
2
30
203050373
Panel
1
11
303160846
Dowel Pin φ2
2
31
303071336
Right Operation Trigger
1
12
303042023
Flat Washer φ8×φ18×2
1
32
303030130
Flang Nut
2
13
303123034
Connection Rod Pin Φ7
1
33
303030077
Flang Lock Nut
2
14
303200106
Upper Auger Cable
1
34
203070085
Control Handle
1
15
303200130
Upper Drive Cable
1
35
203021099
Drive Cable Control Plate
1
16
203050057
Clean Out Tool
1
36
203020380
Tooth Gasket
1
17
203050512
Rocker Seat
1
37
303130074
Spring
2
18
303010164
Screw M6×20
1
38
203070102
Control Handle
1
19
303181160A
Upper Handle Welding
1
39
303020274
Hex Bolt M8X45
2
20
303020486
Hex Flange Bolt M6X50
2
