5
How To Connect a DigiMod 1000NPS to a DigiMod 500
In case of ground loop problems, remove the GND wire connection in the cable.
In order to connect the master module outputs to the slave module inputs:
1. Connect the cable that you’ve just made to the DSP in the DigiMod 1000NPS master module (with the MOLEX 3-pin connector).
2. Connect the other end of the cable with its two Phoenix 5-pin connectors to the slave module’s input connectors as seen in the gure
below:

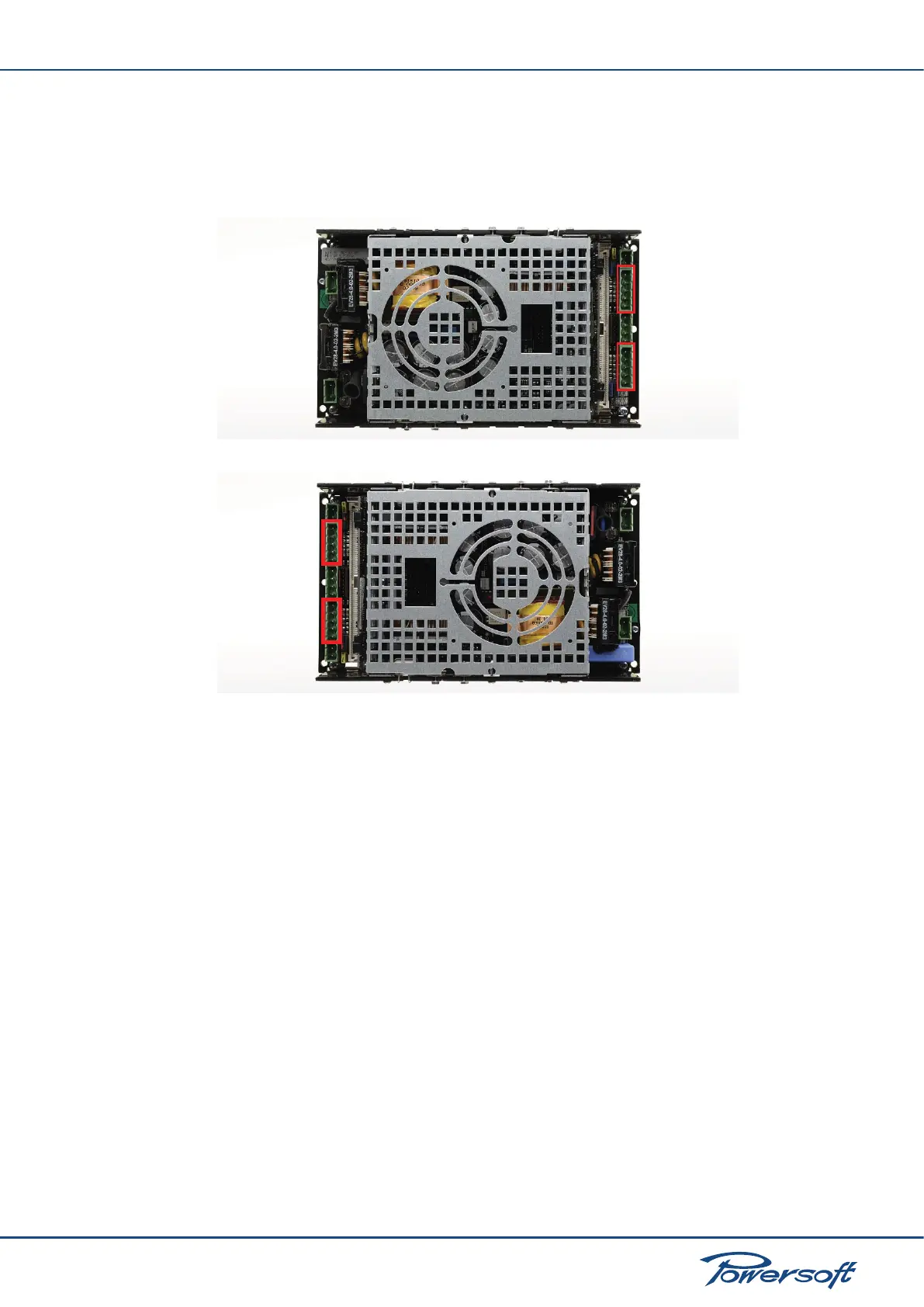

FIGURE 8: DigiMod 500 Phoenix input connector
FIGURE 9: DigiMod 1000 Phoenix input connector (DigiMod 1000 IS is identical)
