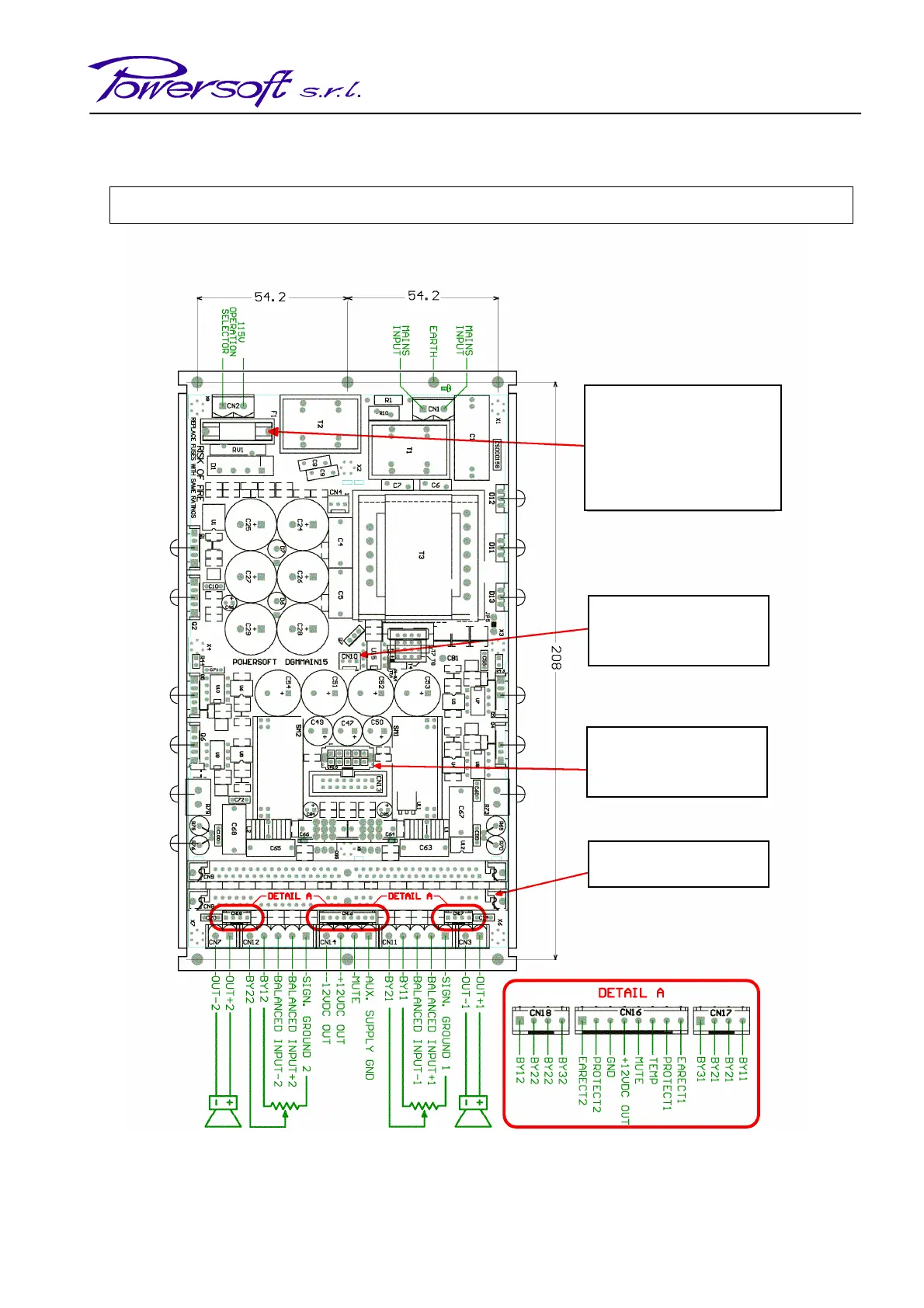

Connecting Layout
DigiMod1000/1500/2000HV
For Digimod1000
F1 = 5X20, 4A slow blow for 230Vrms
Mains operation
F1 = 5X20, 6,3A slow blow for 115Vrms
Mains opearation
For Digimod1500
F1 = 5X20, 6,3A slow blow for 230Vrms
Mains operation
F1 = 5X20, 10A slow blow for 115Vrms
Mains opearation
CN10 = 24Vdc Fan Connector
Pin out:
1 - negative fan wire
2 - positive fan wire
3 - negative fan wire
CN15 = Power connector for
slave unit wiring
CN8 = Simm board connector
see details
!
!!
!
"#
"#"#
"#
$%!#
$%!#$%!#
$%!#
$%!#
$%!#$%!#
$%!#
$%!#
$%!#$%!#
$%!#
#
##
#
#
##
#
"
""
"
!
!!
!
To Next Page
