2
TABLE OF CONTENTS
CHAPTER 1 Pedal specifications
CHAPTER 2 Installation and Removal
a. Tension Adjustment
CHAPTER 3 Pairing
CHAPTER 4 Setting crank arm length
CHAPTER 5 Calibration and manual zero
a. Temperature Compensation
CHAPTER 6 Battery replacement
CHAPTER 7 Firmware
CHAPTER 8 Precautions
CHAPTER 9 Warranty

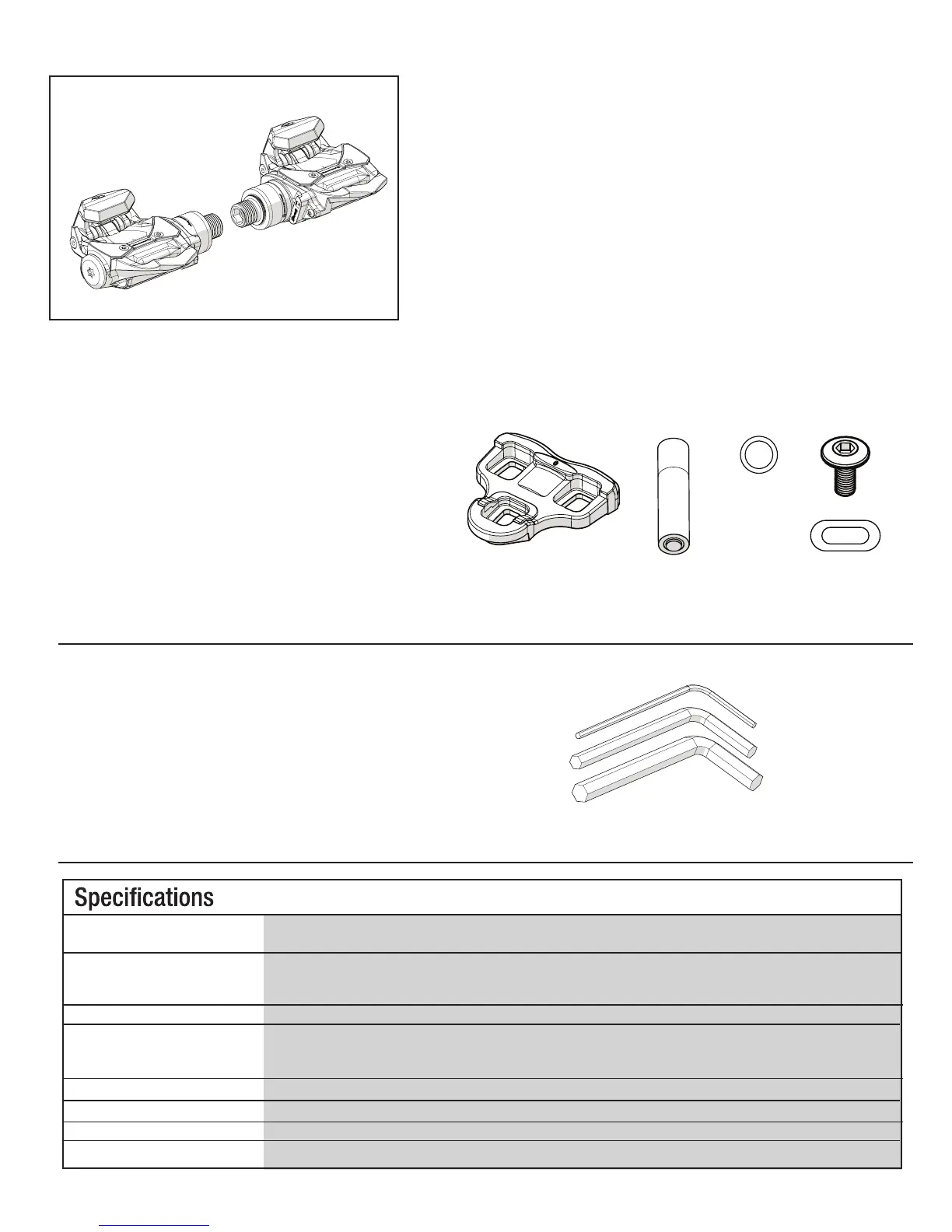

PACKAGE CONTENTS
1. Right pedal
2. Left pedal
3. Pedal washers (pair)
4. Cleats (pair)
5. Cleat mounting hardware
6. Batteries (2-AAA)
7. Pedal Identification Card
(not pictured)
2x 2x 6x2x
TOOLS REQUIRED
2.5mm hex key
6mm hex key
8mm hex key (Allen wrench)
Weight
Stack Height
Tension Adjustment
Est. Battery Life
Normal Operating Temperature
Warranty
53 mm from the crank to pedal center, Overall
Center-Center: 249 mm w/ Shimano cranks, 250 mm
w/SRAM cranks, 248.5 mm w/Campy cranks
14 mm
60 hours
-40ºF to +140ºF
2 years
398 grams per pair of pedals (without batteries)
Cornering angle
Specific lean angle determined by multiple factors.
25.5 degrees of lean (crank all the way down on the inside
175mm, 75mm BB drop, 147mm Q-factor, 700x23 tire size)
Adjustable 6-20 Nm
CHAPTER 1: PEDAL SPECIFICATIONS
Center of pedal
