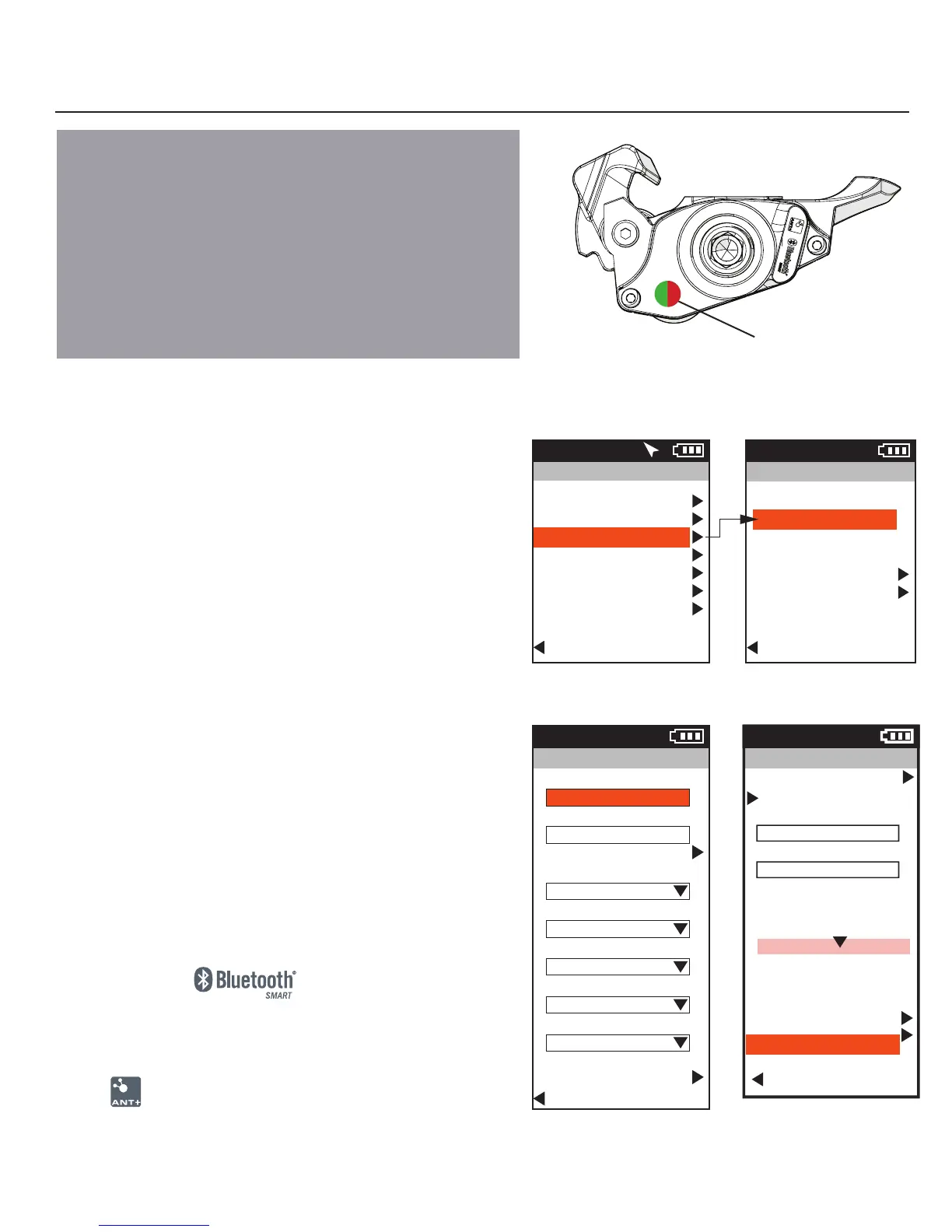

PAIRING
The pedals are factory paired to each other during the production pro-
cess. They operate in a master/slave configuration. The right pedal (slave)
is permanently paired to the left pedal and transmits data to it during
activity. The left pedal (master) combines its data with the data of the
right pedal and transmits the combined data to the receiving unit. Only
the left pedal (master) can be paired to a display unit. Display units will
not be able to pair to the right side pedal. For pairing instructions specific
to your receiving device see your display unit’s instructions for pairing.
To pair:
1. Awake both pedals by spinning them a few times individually. Upon
awaking the green and red LED will illuminate. Then the green LED will
blink every 2 sec when functioning normally.
2. Go to the SENSORS screen on your display and select POWER SENSOR
from the menu and initiate the pair. Note: this can take up to 60 seconds.
3. When the ID from the appropriate sensor shows on the display screen
select this sensor by pressing the ENTER button. Then activate the sen-
sor. (ANT+ ID>ACTIVATE SENSOR)
Bluetooth SMART and ANT+ - The pedal broadcasts data using Bluetooth
Smart and ANT+ simultaneously. You can pair your pedal to any device
using either of these wireless protocols.
Bluetooth Smart
Bluetooth Smart is the low energy version of Bluetooth wireless
technology. Learn more about this technology visit www.bluetooth.com
ANT+
ANT+ is a low energy form of wireless technology used in many sport
electronics. To learn more about ANT+ visit www.thisisant.com
LED
Power Sensor
9:34
A
Activate Sensor
Start Paring
Name
Power2
Sensor ID
2484
Circumference, mm
2096
Auto Zero
On/Off
Battery
---
Crank Lenght
Delete Sensor
Calibration
Back to Bike
Main Menu
Ride
History
Sensors
Training
Navigation
User
Device
Back to Dashboard
9:34
A
71º
Sensors
Select a Bike
Bike 1
Bike2
Add a Bike
Calibration
Back to Main Menu
9:34A
Bike1
Name
Bike1
Weight
17.0
Pair All
Power Sensor
Power1
Cadence Sensor
None
Speed/Combo
None
Heart Rate Sensor
HeartRate1
RU Sensor
None
Delete Bike
Back to Sensors
9:34
A
CHAPTER 3: PAIRING
PEDAL SLEEP AND WAKING
After 4 minutes without movement the pedal goes to sleep to conserve
battery life. Wake the pedal up by spinning the pedal several times.
The pedal has a two stage wake up proceedure to prevent battery drain
during transport.
• Initial wake (dose mode): When pedal is spun only once.
Goes back to sleep after 10 seconds of no movement.
• Full wake: Looks for continued rotation after initial wake within
10 seconds.
To Next Page
