PowerTec 71536 - Assembly; Unpacking

3
ASSEMBLY
ASSEMBLY
3
UNPACKING
Refer to Figure 1
Check for shipping damage. Check immediately whether all
parts and accessories are included.
ITEM DESCRIPTION QTY
A
Fence
1
B
Fence lock knobs
2
C
Washers 5/16"
2
D
T-Bolt 5/16"-18 x 1"
2
E
MDF adjustable fence faces
2
F
Flat head screws 1/4"-20 x 1-1/2"
4
G
Washers 1/4"
4
H
Locking knobs
4
I
Bit guard
1
J
Bit guard knobs 1/4"
2
K
T-Bolts 1/4"-20 x 1"
2
L
Washers 1/4"
2
M
Router dust port
1
N
Pan head screws M4 x 10 mm
2
O
Washers 1/4"
2
P
Featherboard
1
Q
T-Bolts 5/16"-18 x 1-1/2"
2
R
Spacers
2
S
Locking knobs 5/16"
2
T
Tape measure with adhesive backing
(right to left)
1
U
3" Flip stop
1
V
1/4" Square Rods
2
W
4 mm Round Rods
2

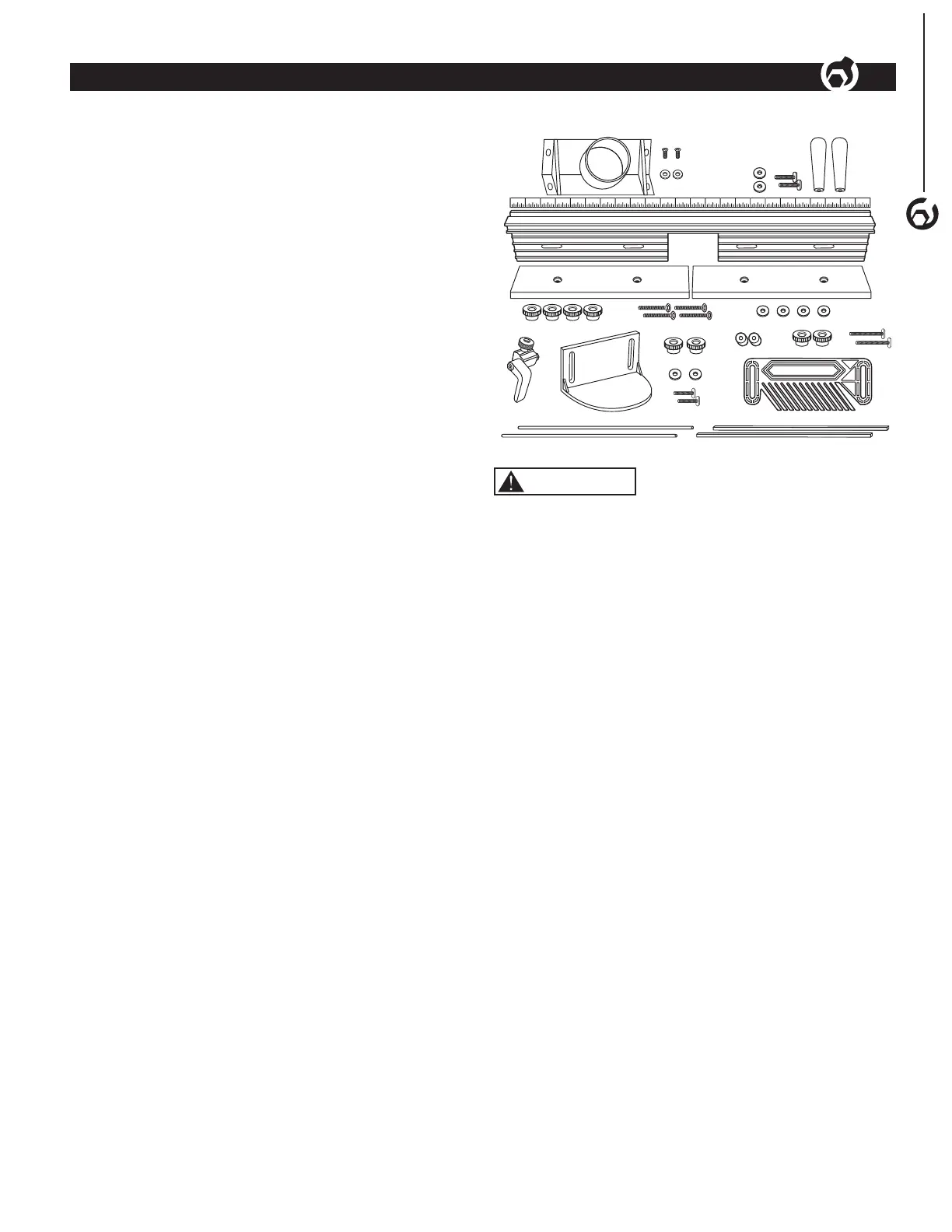

Figure 1
2324 22 21 1520 1319 111218 91017 7 8 16 56 314 14 2
U
H
K
M
A
B
N
C
O
GF
T
L
J
Q
R
P
E
I
S
D
E
W V
WARNING
Do not use the router table fence until it is completely assembled
and you have read and understood this entire operating manual
and the operating manual of the tool being used with this router
table fence.
