PowerTec DC5370 - Parts Illustration & List

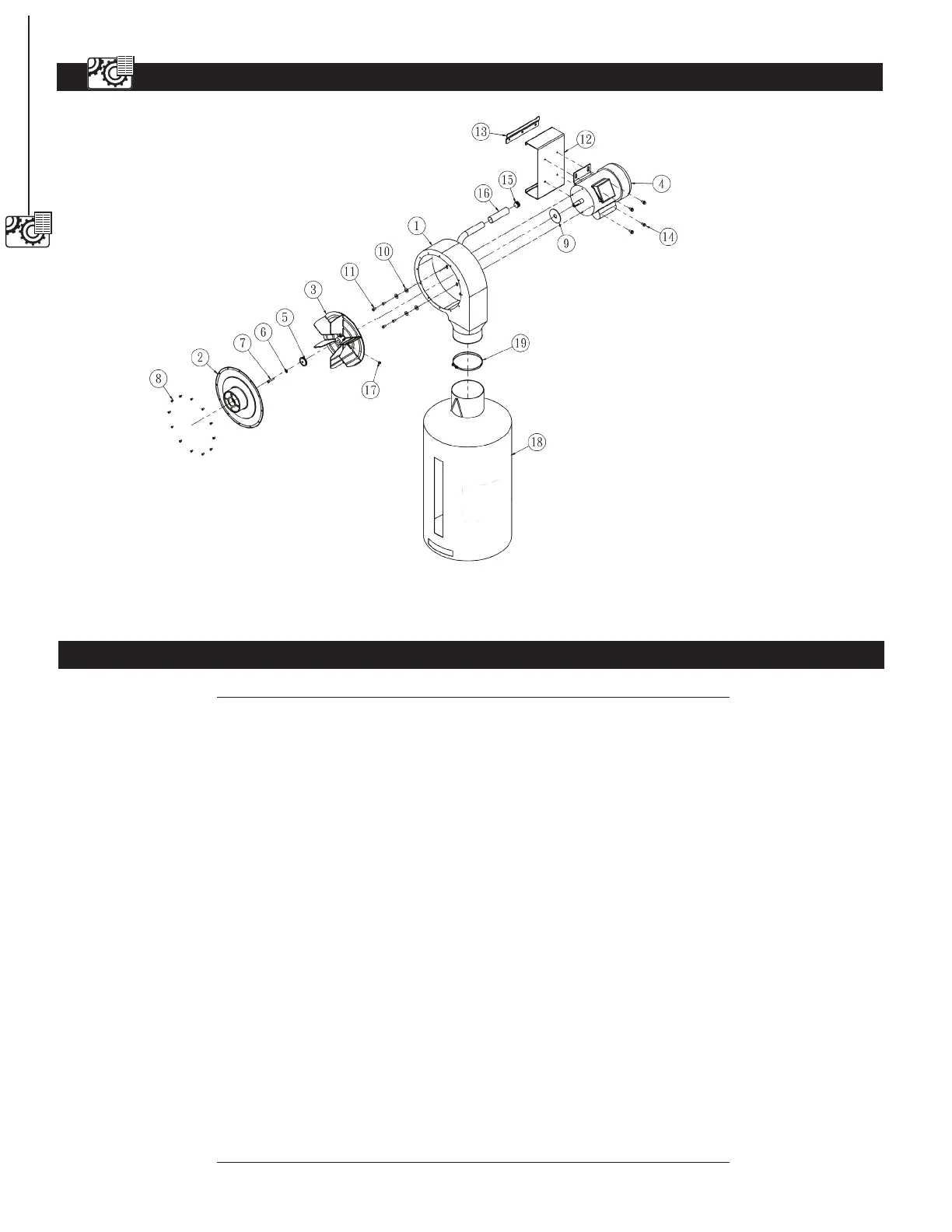

WALL MOUNT DUST COLLECTOR PARTS ILLUSTRATION
8
WALL MOUNT DUST COLLECTOR PARTS LIST
PARTS LIST
8
Key No. Part No Description Qty
1 DC5370001 Main housing 1
2 DC5370002 Inlet cover 4" 1
3 DC5370003 Impeller 10" 1
4 DC5370004 Motor 1
5 DC5370005 Impeller washer 1
6 DC5370006 Spring washer 1/4" 1
7 DC5370007 Cap screw M6 x 30 1
8 DC5370008 Phillip HD tp screw M5 x10 12
9 DC5370009 Motor gasket 1
10 DC5370010 Flat washer 1/4" x 18 4
11 DC5370011 Hex screw 1/4" x 1/2" 4
12 DC5370012 Motor plate 1
13 DC5370013 Wall mount bracket 1
14 DC5370014 Flange bolt 1/4" x 1/2" 4
15 DC5370015 Cap 1" 1
16 DC5370016 Handle cover 1
17 DC5370017 Set screw 5/16" x 5/16" 1
18 DC5370018 Collection bag 1
19 DC5370019 Bag clamp 5" 1
