4

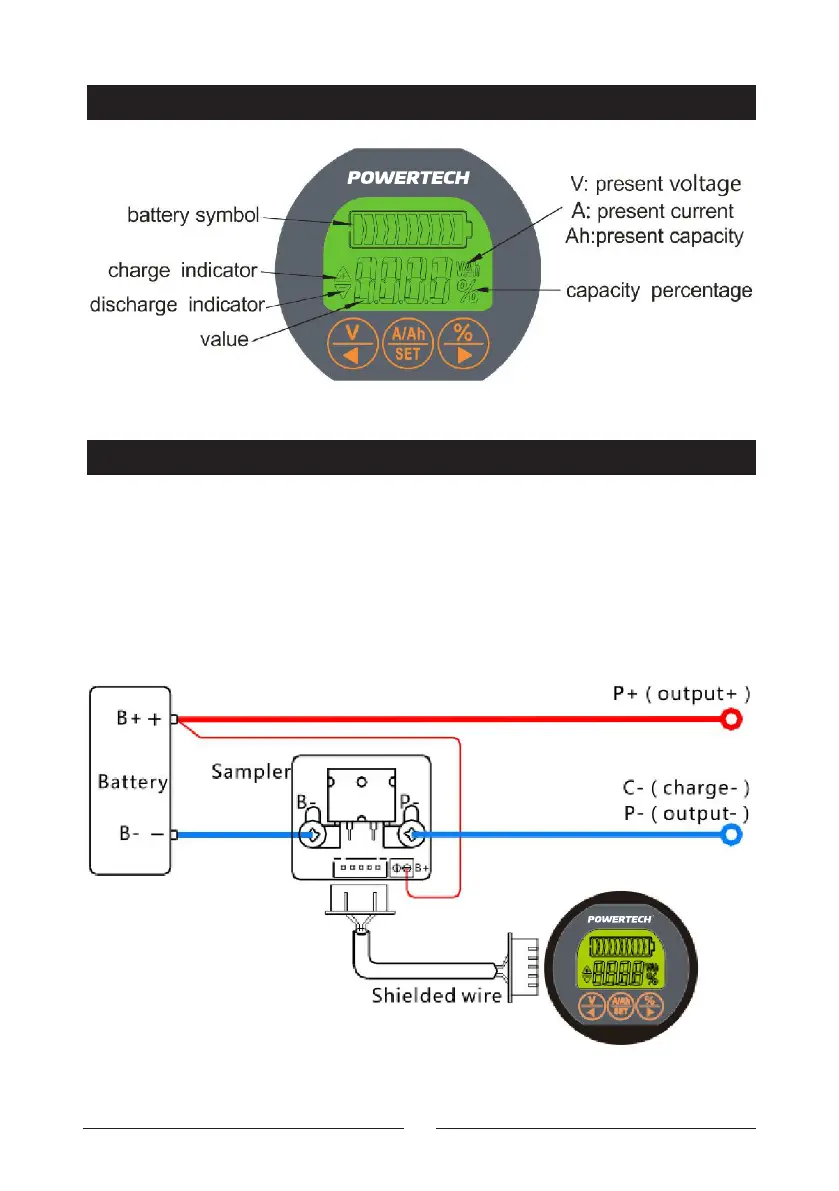

PRODUCT DIAGRAM
CONNECTION
We need a shielded wire and a ordinary wire (0.3-0.75 mm?).One end of the
ordinary wire connects to positive of battery, another end connects to B+ of
sampler (any one is ok). The B- of sampler connects to B- of battery. P- of
sampler connect to P-of output. Finally connect sampler to coulometer by the
shielded wire.(Notice: The diagram is not equal proportion).
Connection diagram of 50A sampler
