INSTALLATION
Bracket
Panel

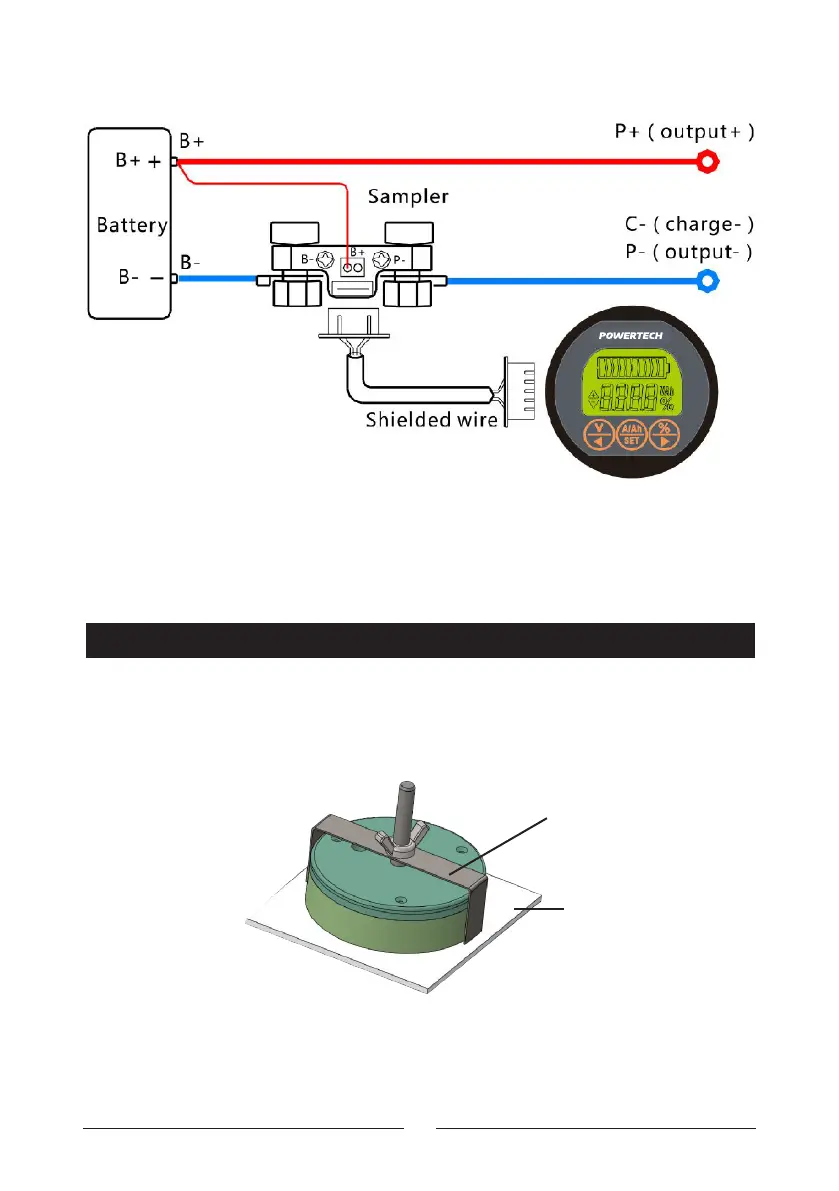

Connection diagram of 100A/350A sampler
Attention: Please connect as shown strictly. The sampler must be connected to
the negative circuit, it is forbidden to connect to the positive circuit. If you want
to extend the shielded wire, you must use 4 lines of same specification.
First, open a round holes of 54.5mm on the panel of the equipment. Then install
the coulometer from the front of the panel. Finally, tighten the bracket on the
back. As shown below:
