3. OPERATING INSTRUCTIONS

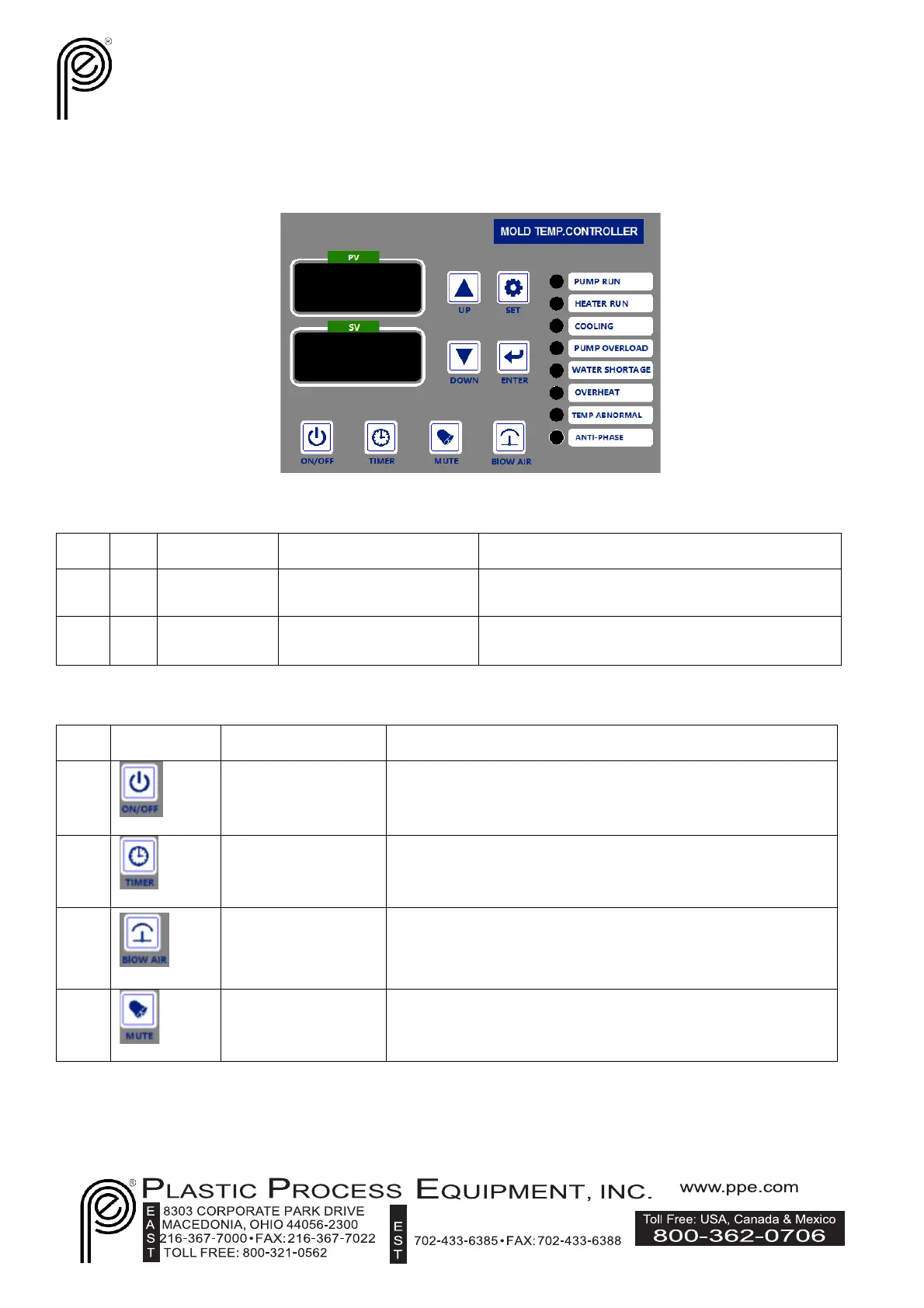

3.1 FRONT PANEL LAYOUT
3.2 DESCRIPTION OF DISPLAY
ITEM Name Explanation Remarks
1 PV Temperature
Process Values
Temp. And alarm code
Show [0100], means the actual value is 100
Show [100.0], means the actual value is 100.0
2 SV Parameters Temp. And parameters
Set Values
3.3 DESCRIPTION OF KEY PAD
ITEM Name Explanation Remarks
3 Switch ON/OFF
Switch on, [TEMP.] shows [OFF];
After switch on, pump and heater delayed operation;
Switch off, [ TEMP.] shows [OFF]
5
Set the equipment
start timely
According to [F-71], customer can set timer.
6 Blow ON/OFF
Only using under stop condition. After it’s OFF, machine will
stop working,(when customer doesn’t operate after it’s ON, it
will be OFF automatically, customer can set time based on
parameter 3-[F-16] ).
7 Mute ON/OFF Customer won’t hear alarm as switch on.
