BEARING HOUSING
MOUNTING BOLTS
with LOCK WASHERS
GREASE CHANNEL
GREASE FITTINGS
BEARING INSERT
SPONGE CORD
for Rev 0 housings
INTERNAL RETAINING RING
EXTERNAL RETAINING RING
SEAL CARRIER
OIL SEAL
CONTACT SEALS
O-RING
SSP SERIES
BEARING
PART #
BEARING
SIZE
BEARING
BORE (mm)
BEARING
BORE (in)
SHAFT DIA.
at EXT.
HUB KIT PART
NUMBER
BEARING KIT
PART NUMBER
SEAL KIT
PART NUMBER
SSP015 22215 15 75 2.953 2 7/16 SSP015HUBKIT SSP015BRGKIT SSP015SEALKIT
SSP020 22220 20 100 3.937 3 1/2 SSP020HUBKIT SSP020BRGKIT SSP020SEALKIT
SSP022 22222 22 110 4.331 4 SSP022HUBKIT SSP022BRGKIT SSP022SEALKIT
SSP024 22224 24 120 4.724 4 1/2 SSP024HUBKIT SSP024BRGKIT SSP024SEALKIT
SSP026 22226 26 130 5.118 5 SSP026HUBKIT SSP026BRGKIT SSP026SEALKIT
SSP028 22228 28 140 5.512 5 SSP028HUBKIT SSP028BRGKIT SSP028SEALKIT
SSP030 22230 30 150 5.906 5 1/2 SSP030HUBKIT SSP030BRGKIT SSP030SEALKIT
SSP032 22232 32 160 6.299 6 SSP032HUBKIT SSP032BRGKIT SSP032SEALKIT
SSP034 22234 34 170 6.693 6 1/2 SSP034HUBKIT SSP034BRGKIT SSP034SEALKIT
SSP036 22236 36 180 7.087 7 SSP036HUBKIT SSP036BRGKIT SSP036SEALKIT
SSP038 22238 38 190 7.480 7 SSP038HUBKIT SSP038BRGKIT SSP038SEALKIT
SSP044 22244 44 220 8.661 8 SSP044HUBKIT SSP044BRGKIT SSP044SEALKIT
SSP148 23148 48 240 9.449 9 SSP148HUBKIT SSP148BRGKIT SSP148SEALKIT
SSP152 23152 52 260 10.236 9 SSP152HUBKIT SSP152BRGKIT SSP152SEALKIT
SSP156 23156 56 280 11.024 10 SSP156HUBKIT SSP156BRGKIT SSP156SEALKIT
SSP160 23160 60 300 11.811 11 SSP160HUBKIT SSP160BRGKIT SSP160SEALKIT
SSP268 23268 68 340 13.386 12 SSP268HUBKIT SSP268BRGKIT SSP268SEALKIT
SSP276 23276 76 380 14.961 13 SSP276HUBKIT SSP276BRGKIT SSP276SEALKIT
SSP284 23284 84 420 16.535 14 SSP284HUBKIT SSP284BRGKIT SSP284SEALKIT
APPENDIX D SSP BEARING ASSEMBLY
BRG Kit includes
the following:
BEARING INSERT
INTERNAL RETAINING RING
EXTERNAL RETAINING RING
OIL SEAL
2 CONTACT SEALS
O-RING
SEAL Kit includes
the following:
OIL SEAL
2 CONTACT SEALS
O-RING
All kits include standard and taconite contact seals. Hub and bearing kits include fixed and free retainer setups.
OM 019-06 Contact your sales representative for more information 11/19
©2019 | Precision Pulley & Idler | All Rights Reserved
CORPORATE OFFICE • P.O. Box 287 • Pella, IA 50219
800.247.1228 • 641.628.3115 • 641.628.3658 FAX
Install seal carrier until the edge of the bevel is even
with the bearing housing face as shown below
SSP
SIZE
Shaft Diameter
at Bearing
Shaft Diameter
at Ext.
Capscrew & Washer
SC
(Qty: Size) ft-lbs
015 2.953 2 7/16 4 @ 5/8-11 UNRC x 2 1/2 150 0.25
020 3.937 3 1/2 4 @ 3/4-10 UNRC x 3
250
0.39
022 4.331 4
6 @ 3/4-10 UNRC x 3
0.41
024 4.724 4 1/2 0.45
026 5.118 5
6 @ 7/8-9 UNRC x 3 1/2
400
0.63
028 5.512 5 0.53
030 5.906 5 1/2 0.63
032 6.299 6 6 @ 7/8-9 UNRC x 6 0.56
034 6.693 6 1/2
8 @ 7/8-9 UNRC x 6
0.40
036 7.087 7 0.24
038 7.480 7 0.32
044 8.661 8 16 @ 7/8-9 UNRC x 6 0.60
148 9.449 9
16 @ 7/8-9 UNRC x 6
0.60
152 10.236 9 0.60
156 11.024 10 0.60
160 11.811 11 0.60
268 13.386 12 24 @ 7/8-9 UNRC x 6 0.60
276 14.961 13 20 @ 1-1/4-6 UNC x 6
1,000
0.45
284 16.535 14
24 @ 1-1/4-6 UNC x 6
0.45

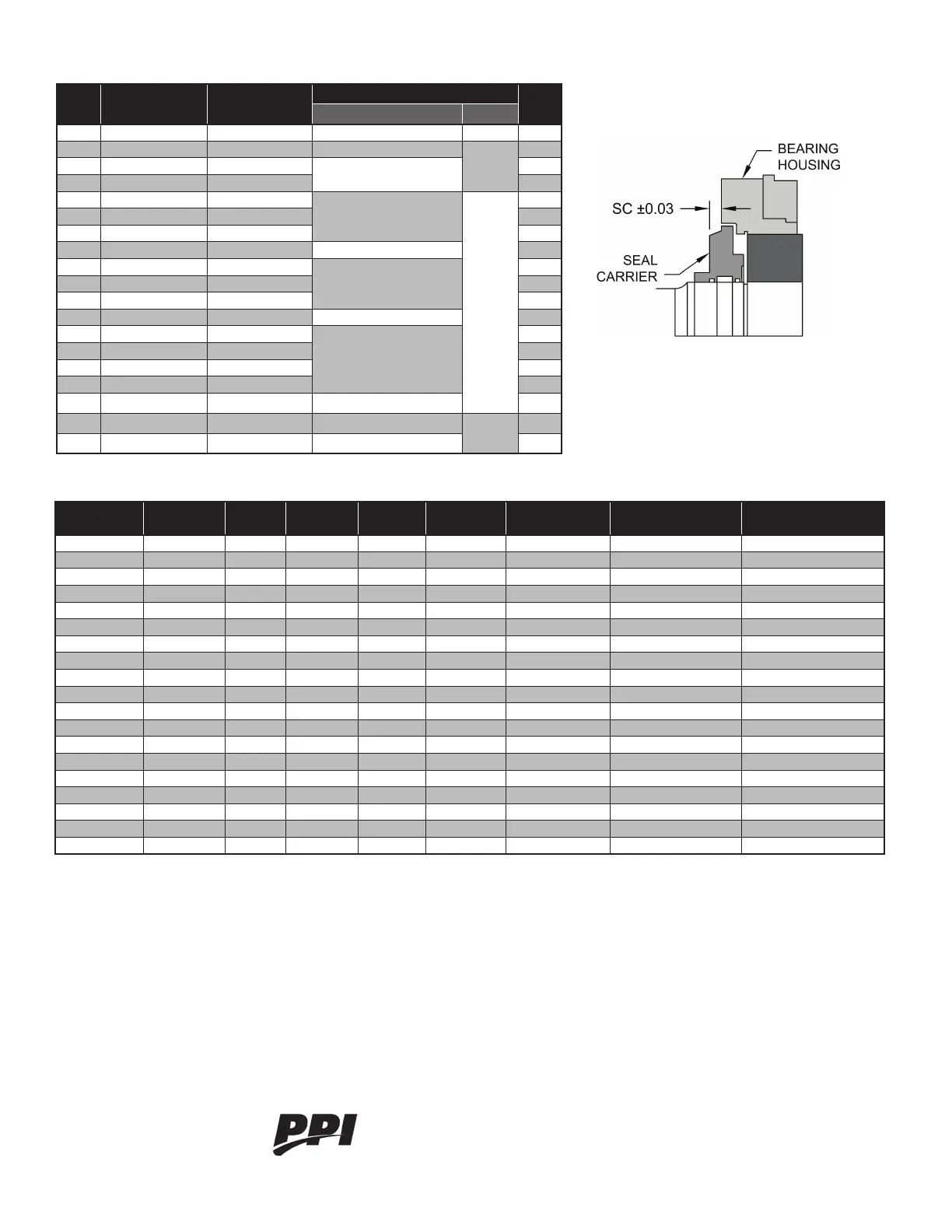

APPENDIX C SSP SEAL LOCATION & BOLT TORQUE CHART
