PR electronics 5202B - Product Specifications Details; Order Information; Electrical Specifications

24
25
Electrical specifications:
Specifications range:
-20 to +60°C
Common specifications:
Supply voltage universal ............................. 21.6...253 VAC
50...60 Hz
19.2...300 VDC
Internal consumption, 5202B1 and 5202B2 . ≤ 1.5 W (2 channels)
Max. consumption, 5202B1 and 5202B2 ... ≤ 1.5 W (2 channels)
Internal consumption, 5202B4 ..................... ≤ 2.0 W (2 channels)
Max. consumption, 5202B4 ........................ ≤ 2.0 W (2 channels)
Fuse ............................................................. 400 mA T / 250 VAC
Isolation voltage, test / operation ............... 3.75 kVAC / 250 VAC
Calibration temperature............................... 20...28°C
Auxiliary voltage:
NAMUR supply ............................................ 8 VDC / 8 mA
Max. wire size .............................................. 1 x 2.5 mm
2
stranded wire
Screw terminal torsion ................................ 0.5 Nm
Relative humidity ......................................... < 95% RH (non-cond.)
Dimensions (HxWxD) ................................... 109 x 23.5 x 130 mm
DIN rail type ................................................. DIN 46277
Protection degree ........................................ IP20
Weight ......................................................... 230 g
EMC immunity influence ..................................... < ±0.5%
Extended EMC immunity:
NAMUR NE 21, A criterion, burst ....................... < ±1%

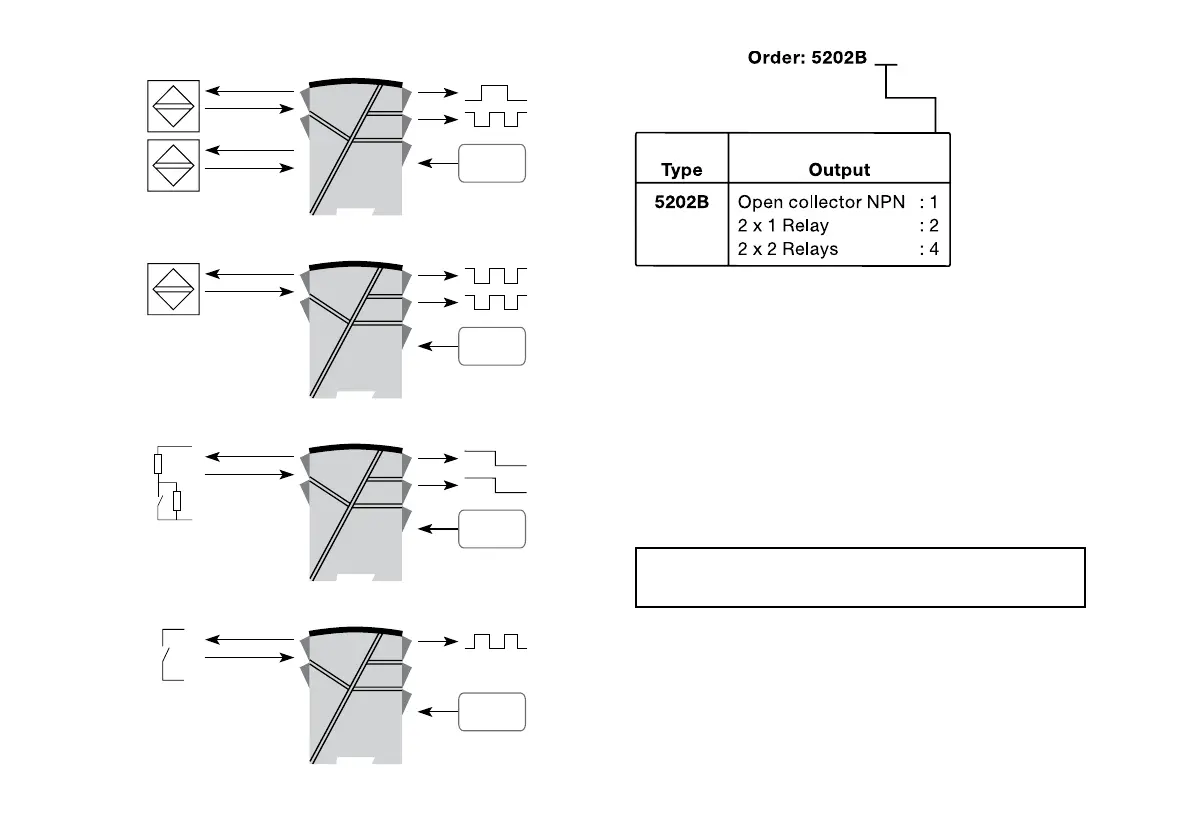

Rp
Rs
Supply
Supply
Supply
Supply
NAMUR sensors
1 NAMUR sensor
Contact with
cable error detection
Contact
Outputs
Output
Outputs
Cable
error
Signal
2 outputs
