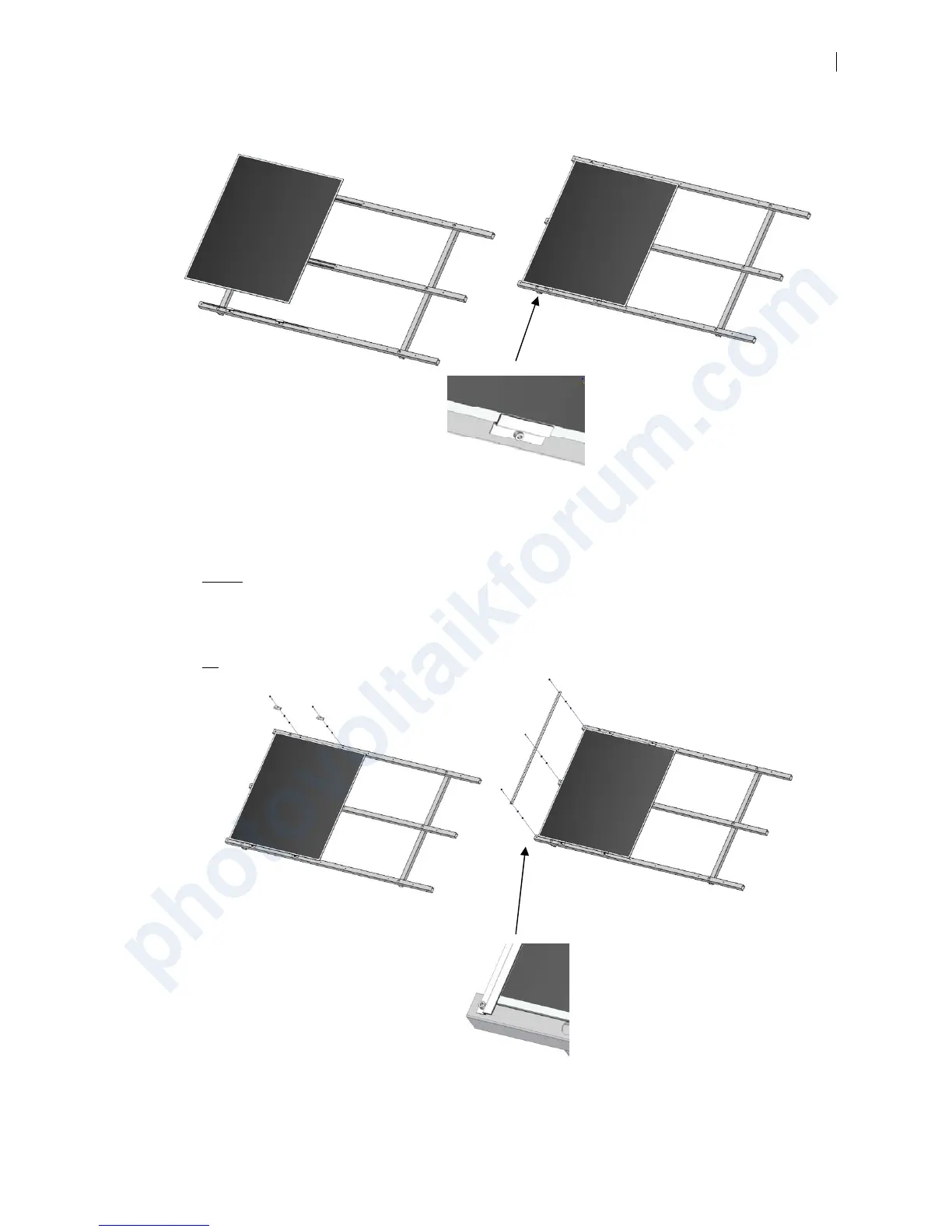

4. Leanthemodule ontheframemakingthemoduleslidebehindtheclamps.









5. Proceedaddingtheupperclampsandthelateralfixingbar.Finallyfixupfirmlyallthe
clamps.Verticalfixingbarsarefixedontheframein3points.

NOTE: Tighten the screws with the torque provided by the manufacturer for the
hardware used. Pramac recommend bolts and nuts with guaranteed
mechanical characteristics, with a bolt/nut friction factor constant and
known.
Ex: BoltsM8‐Class4.8–factor0.20→fricontorque=14.3Nm





