2PM-1440E-LB 11-13-17 V1
Copyright © October 2017 Quality Machine Tools, LLC
PM-1440E-LB

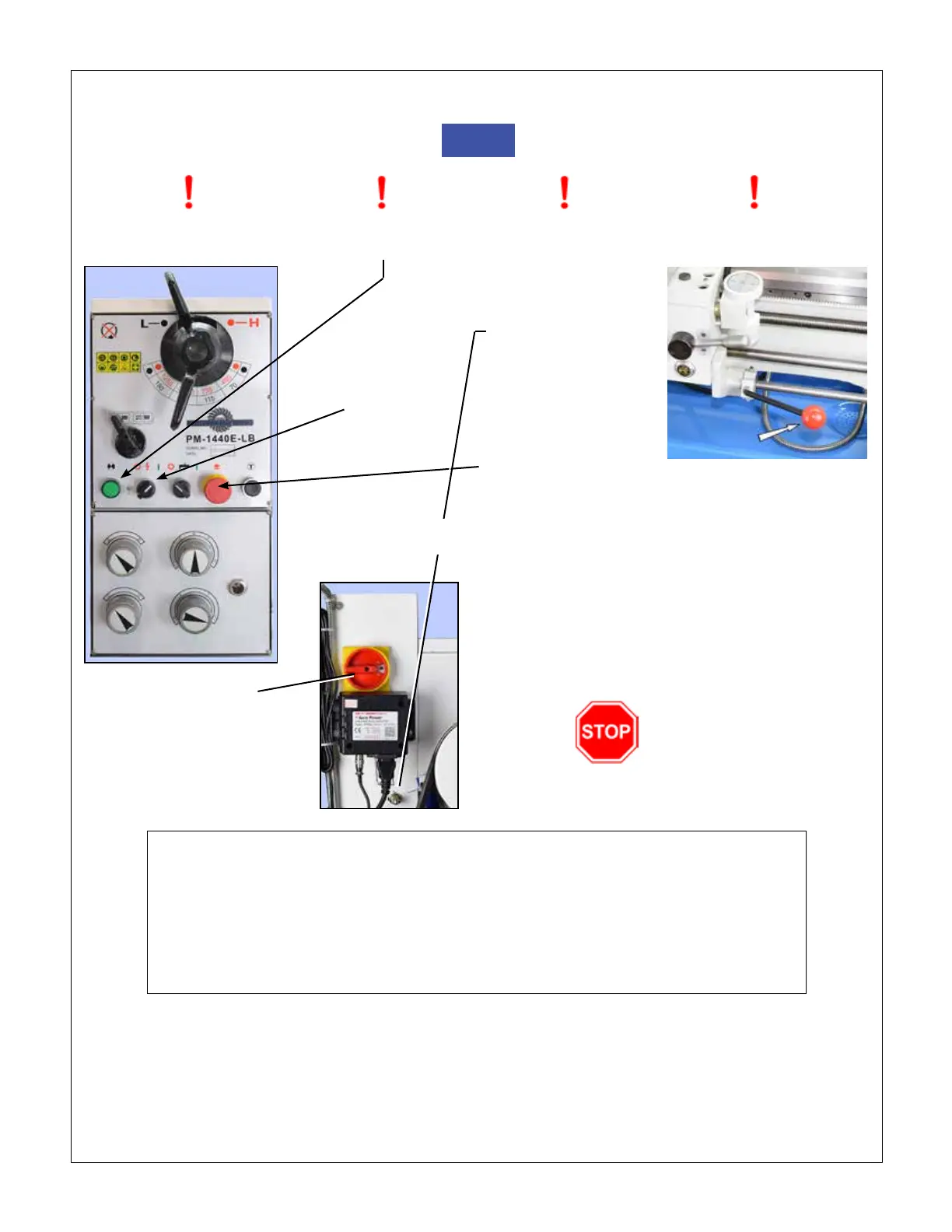

FAQ
Check main power switch ON
Check circuit breaker QF1
AC power connected, but
motor doesn’t run (1)
This manual contains essential safety advice on the proper setup, operation, maintenance, and service
of the PM-1440E-LB lathe. Failure to read, understand and follow the manual may result in property
damage or serious personal injury.
There are many alternative ways to install and use a lathe. As the owner of the lathe you are solely
responsible for its proper installation and safe use. Consider the material contained in this manual to
be advisory only. Quality Machine Tools, LLC cannot be held liable for injury or property damage during
installation or use, or from negligence, improper training, machine modications or misuse.
This manual describes PM-1440E-LB machines as shipped from late 2017. There may be detail di󰀨erences
between your specic machine and the information given here (with little or no impact on functionality). If you
have questions about any aspect of the manual or your machine, please email us at service@precisionmat-
thews.com. Your feedback is welcomed!
(4)
Main power
switch ON (back
of machine)?
Master switch
(24Vac control
circuit) must also
be ON
(2)
GREEN light OFF?
By design the motor should NOT run
if the Motor Control lever is UP or
DOWN when power is connected.
Electrical schematic, Section 5: Move
the Motor Control switch to neutral
= OFF (mid travel), to energize the
gate relay KA0, thus restoring normal
conditions.
This material was originated by Precision Matthews. No portion
of the manual may be reproduced or distributed in any form
without the written approval of Quality Machine Tools, LLC.
The 3 gearboxes in this machine
(Headstock, Saddle Feed and
Apron) may have been shipped
empty. They must be lled be-
fore use, see Section 4.
(3)
Footbrake moves freely?
Treadle should be fully UP.
Belt cover installed?
Chuck cover down?
Each of the above has a
microswitch that must be
closed for power to be
connected to the motor
E-Stop button in? Twist
it, should pop out.
Cover
microswitch
