9.25, 9.25i Treadmill
Page 18

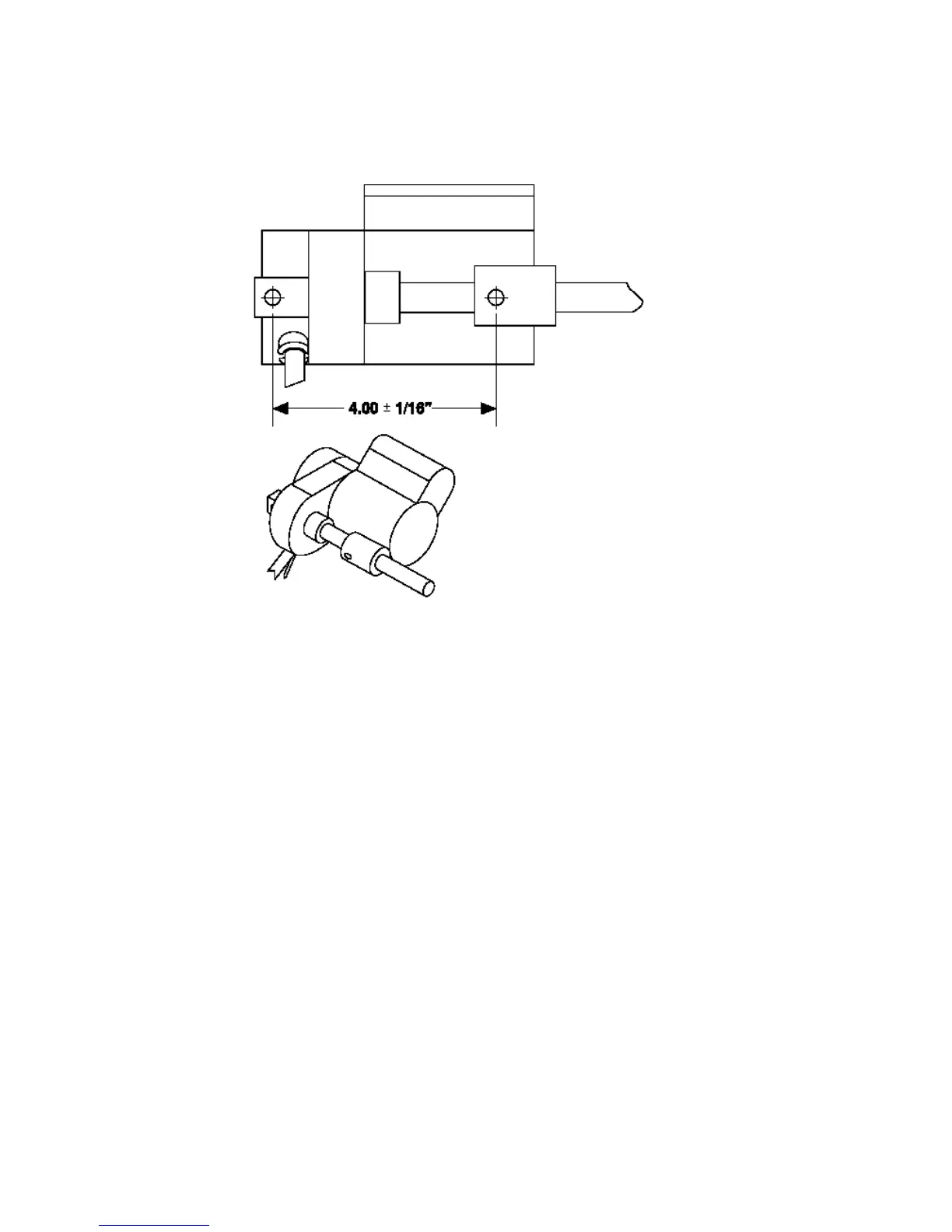

Diagram 4.1 - Lift Motor Calibration
Note:
When you perform the next step, keep the white plastic nut in the same relative position to the
drive screw. If necessary though, you may turn the drive screw 1/2 of a revolution.
12. Mount the lift motor on the treadmill as described in Procedure 6.4 of this appendix.
13. Check the operation of the treadmill as described in Section Three of this appendix.
