9.25, 9.25i Treadmill
Page 7
11. The last routine is the circuit breaker trip test. This test checks the ability of the treadmill to
trip the circuit breaker under software control. If the STOP key is pressed the trip signal will
be sent to the circuit breaker and the circuit will trip, shutting off the treadmill. If you do not
wish to trip the circuit breaker, press the ENTER key to exit the diagnostic program.

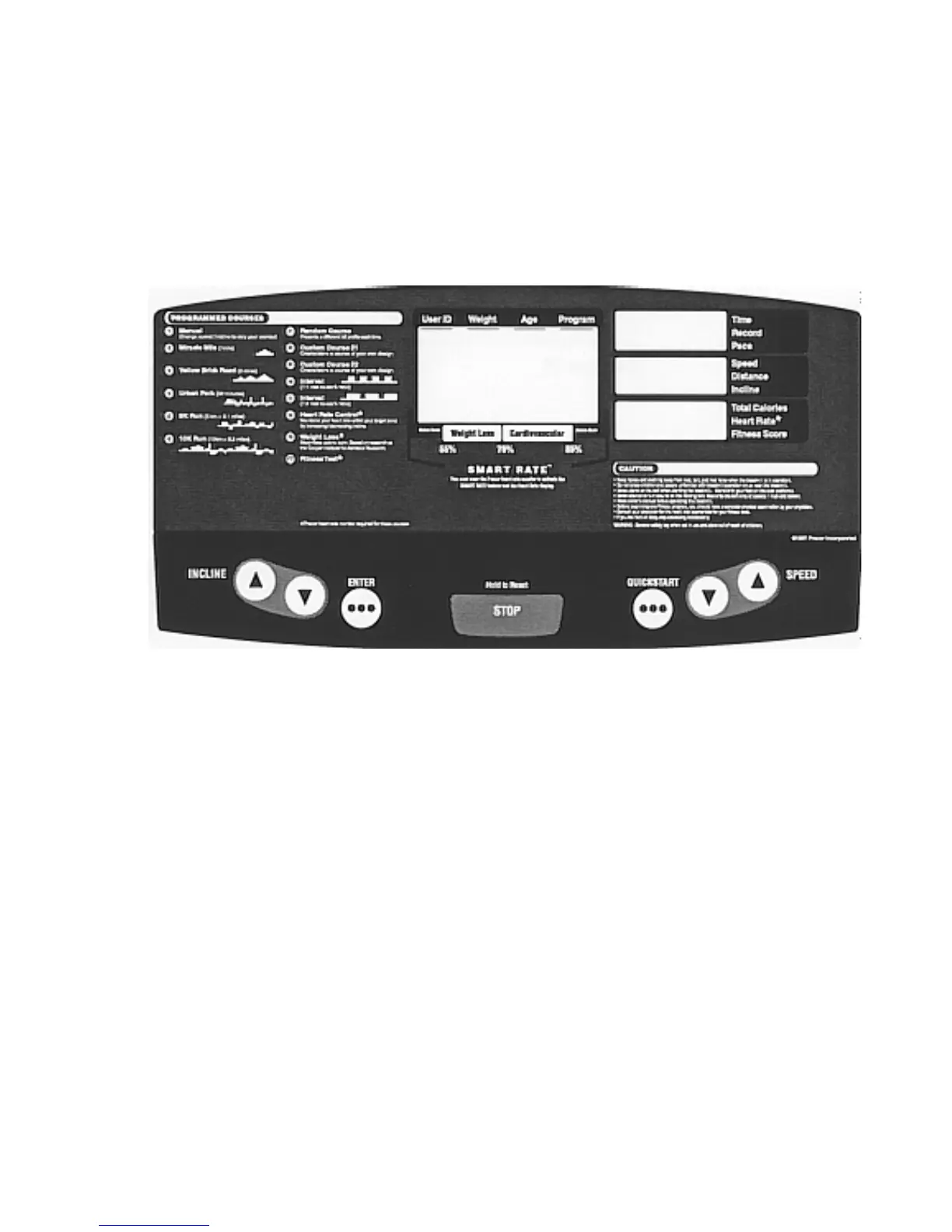

Diagram 2.2 - Display Housing, 9.25i
