22 Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 883 / 833
2. Fully tighten the fasteners on the back of each upright
support.

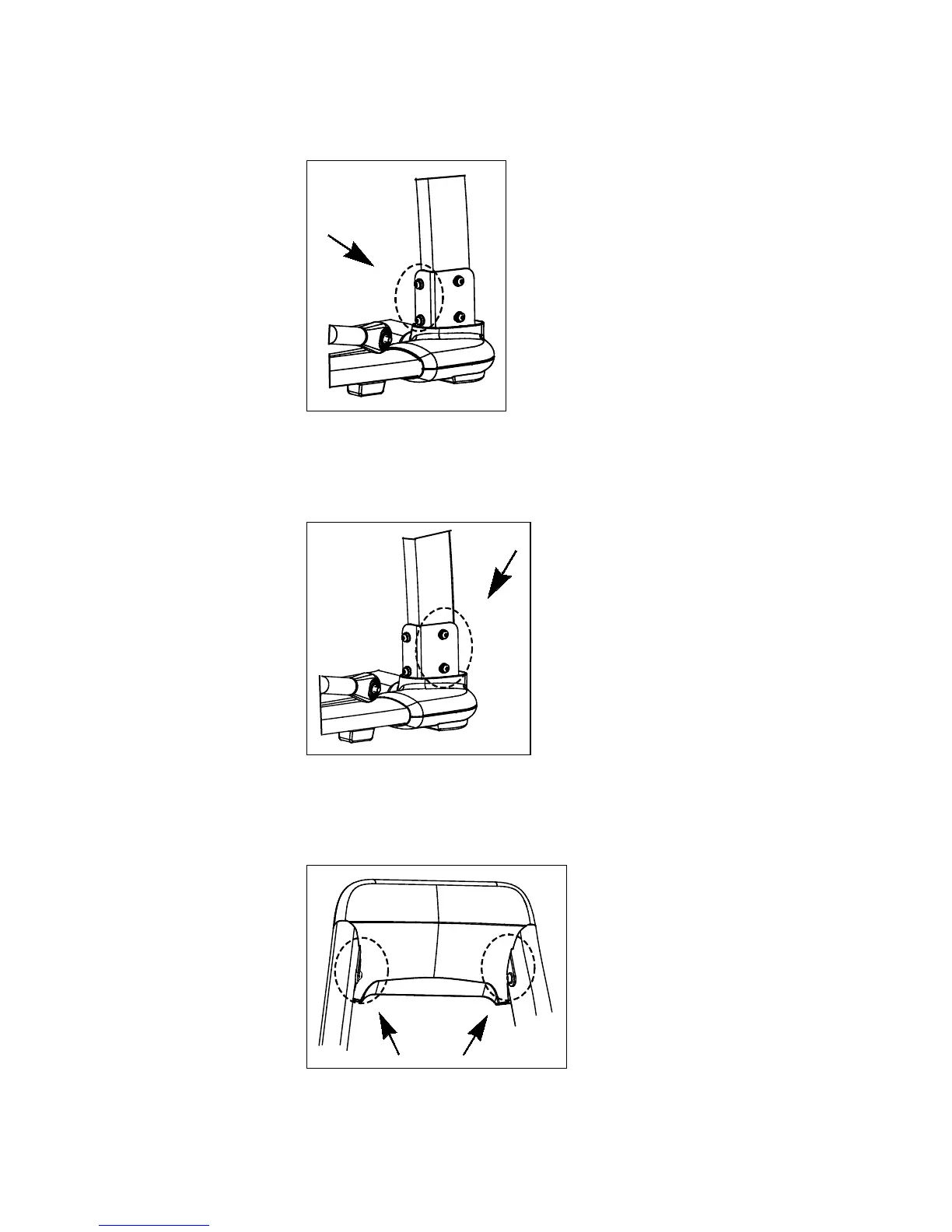

Figure 11: Tighten the back fasteners on the upright supports
3. Fully tighten the fasteners on the lower sides of each
upright support.
Figure 12: Tighten the front fasteners on the upright supports
4. Fully tighten the fasteners on the upper front of the center
column support.
Figure 13: Tighten the front fasteners on the center column
support
