Assembling the Equipment
9
To attach the lower link arms to the movable arms:
1. Attach the right lower link arm to the movable arm using one joint connector
screw, one star washer, and one joint connector nut. Fully tighten the
fasteners using the 5 mm hex wrench.
CAUTION: Guide the handlebar to its balance point and let it rest there. When
attaching the lower link arms, have your assistant hold the moving handlebar.
Failure to do so could result in injury.

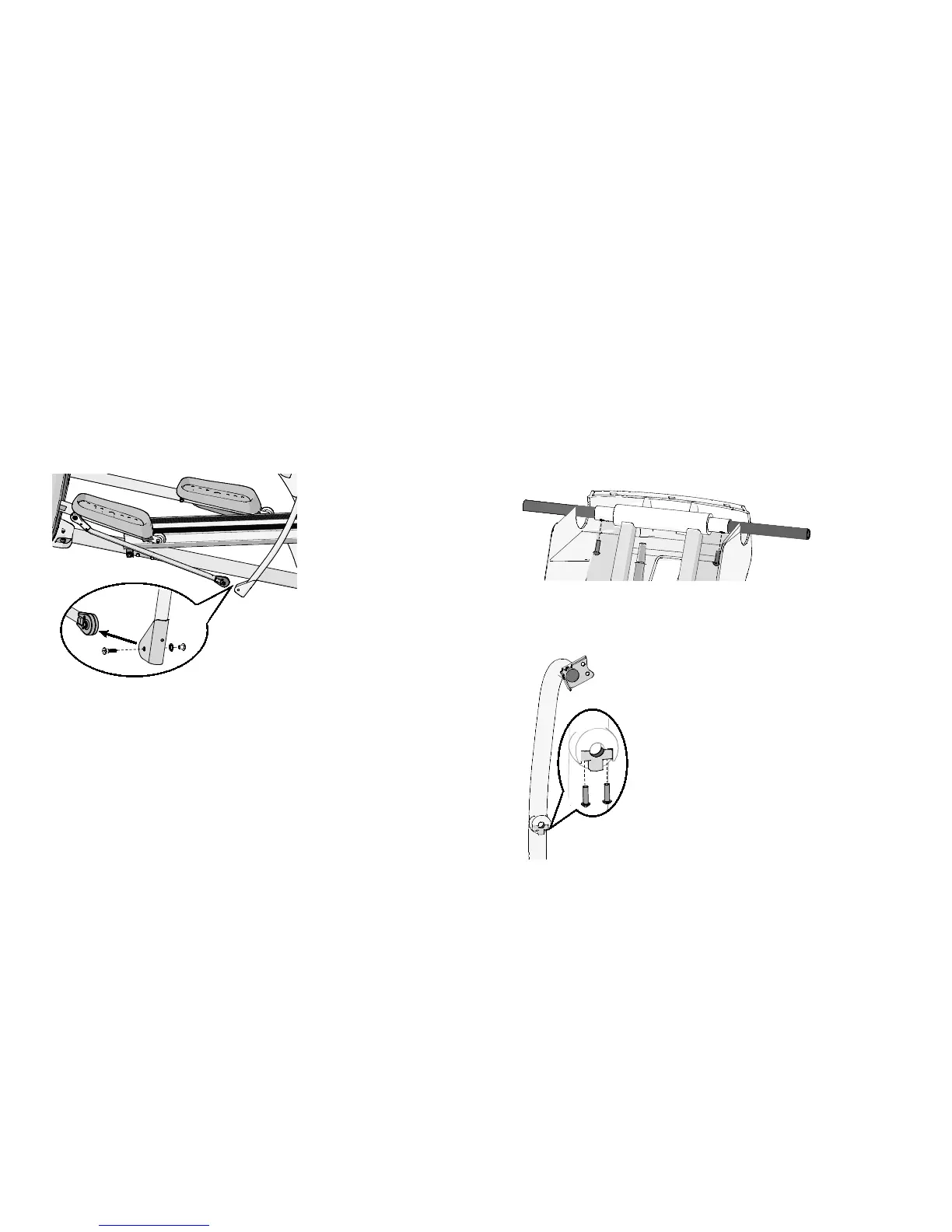

Figure 12: Lower link arm attachment
2. Repeat this procedure to attach the left lower link arm to the left movable arm.
Attaching the Stabilizer (EFX 423 Model Only)
This assembly procedure applies to EFX 423 model only. For other models, the
stabilizers will be attached at a later point in the assembly.
To attach the stabilizers:
1. Slide the handlebar shaft into the stabilizer assembly as shown in the
following figure and secure it using two ¹₄-inch x ⁷₈-inch buttonhead screws.
Fully tighten the fasteners.
Figure 13: Secure the handlebar shaft
2. Insert a clamp into each stabilizer and secure it loosely with two buttonhead
screws.
Figure 14: Location of clamp in stabilizer
