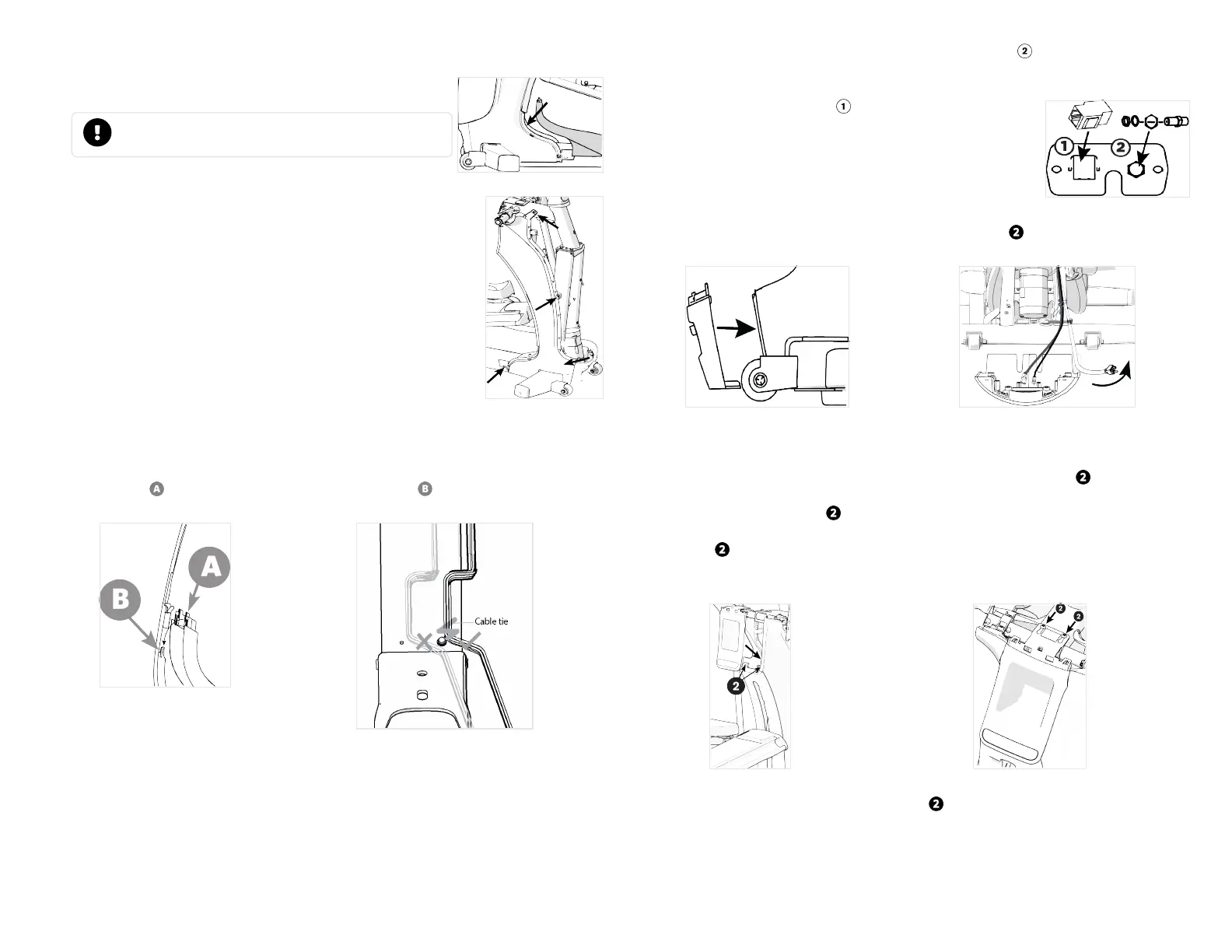

Install side covers
1. For 800 EFX only: Lift up the lower frame cover about an inch
from the frame.
IMPORTANT Although there are two screw holes in
the frame cover, DO NOT install these screws.
Figure 5
2. Secure each side panel using four self-tapping screws for each
panel.
3. Tighten the fasteners to 35 in-lb (3.95 N-m) of torque.
4. Repeat steps 2 and 3 to attach the second side panel.
5. For 800 EFX only: Press the side panels into place ensuring the
latches under each panel are secured.
Figure 6
Notes for 800 EFX
l Ensure cables do not catch on the latch of the forward frame cover (Figure 7) and are tied
to the outside, away from the screw (Figure 8).
l
Ensure the clips on to lower frame cover hook over the clips on the right and left side
panels (Figure 7). Gently secure the parts together with no gap between them.
Figure 7
Figure 8
Install lower panel and front cover
1. Place the cover plate (came with hardware kit) into the center opening of the lower panel.
2. For touchscreen consoles: Install the coax coupler, star washer, and nut into the jack plate
on the lower panel and tighten (Figure 9).
3.
Connect the coax cable to the inside end of the coax coupler . Tighten the connector
using a 7/16-inch open-end wrench. NOTE Check the bend radius (about 6 inches, 15.24
cm) on the coax cable so that it is at a natural angle.
4.
Attach the Ethernet coupler into the jack plate on the lower
panel (Figure 9) and plug the Ethernet cable into the coupler.
Figure 9
5.
For all consoles - Attach the lower panel using two screws , and route the power cable
through the slot (Figure 12). Fully tighten fasteners on the panel (see arrow in Figure 11).
Figure 10 Figure 11
Install yoke cover and shelf
1.
Attach the yoke cover to the back of the base mount using two screws (Figure 12).
NOTE Ensure the small latches engage with the side covers.
2.
Fully tighten the fasteners to 35 in-lb (3.95 N-m) of torque.
3. Position the shelf into the tabs near the top of the yoke cover, then secure it using two
screws (Figure 13).
4. Push in the edge of the shelf and squeeze the two hooks and latches until they engage or
snap into place.
Figure 12 Figure 13
5.
Attach the shelf at the top using two screws . Tighten the fasteners to 35 in-lb (3.95 N-
m) of torque.
