24 Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 885 / 835 / 815
11. Attach the cable to the appropriate connector inside the
base of the EFX, as shown in the following illustration and
table.
Important: Install coaxial cable using a torque wrench and
torque to not exceed 8 lb-in. If a torque wrench is not
available, install the coaxial cable using a wrench to “snug +
¼ turn.” It is permissible to use a wrench on the internal nut
to aid the tightening process.

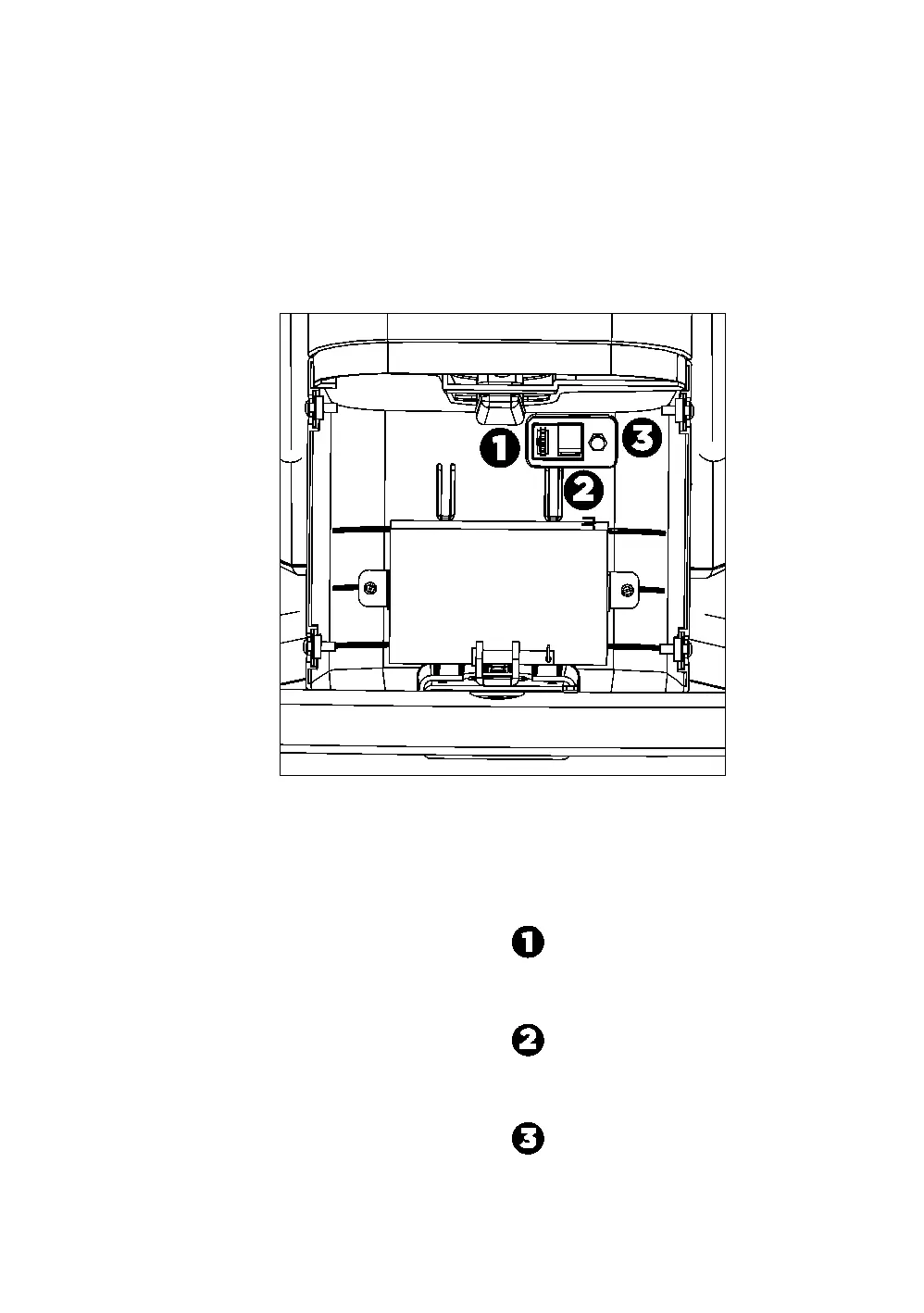

Figure 6: Cable connection points inside EFX base
Connect … To …
The console power cable (red
and black, individual leads)
The power connector on the jack
panel
The television cable (black and
round)
The coaxial connector on the
jack panel
The Ethernet cable (black and
flat)
The eight-connector modular
jack on the jack panel
