Assembling the EFX 19
Installation Requirements
Prior to assembly, make sure you have the required tools and
hardware.

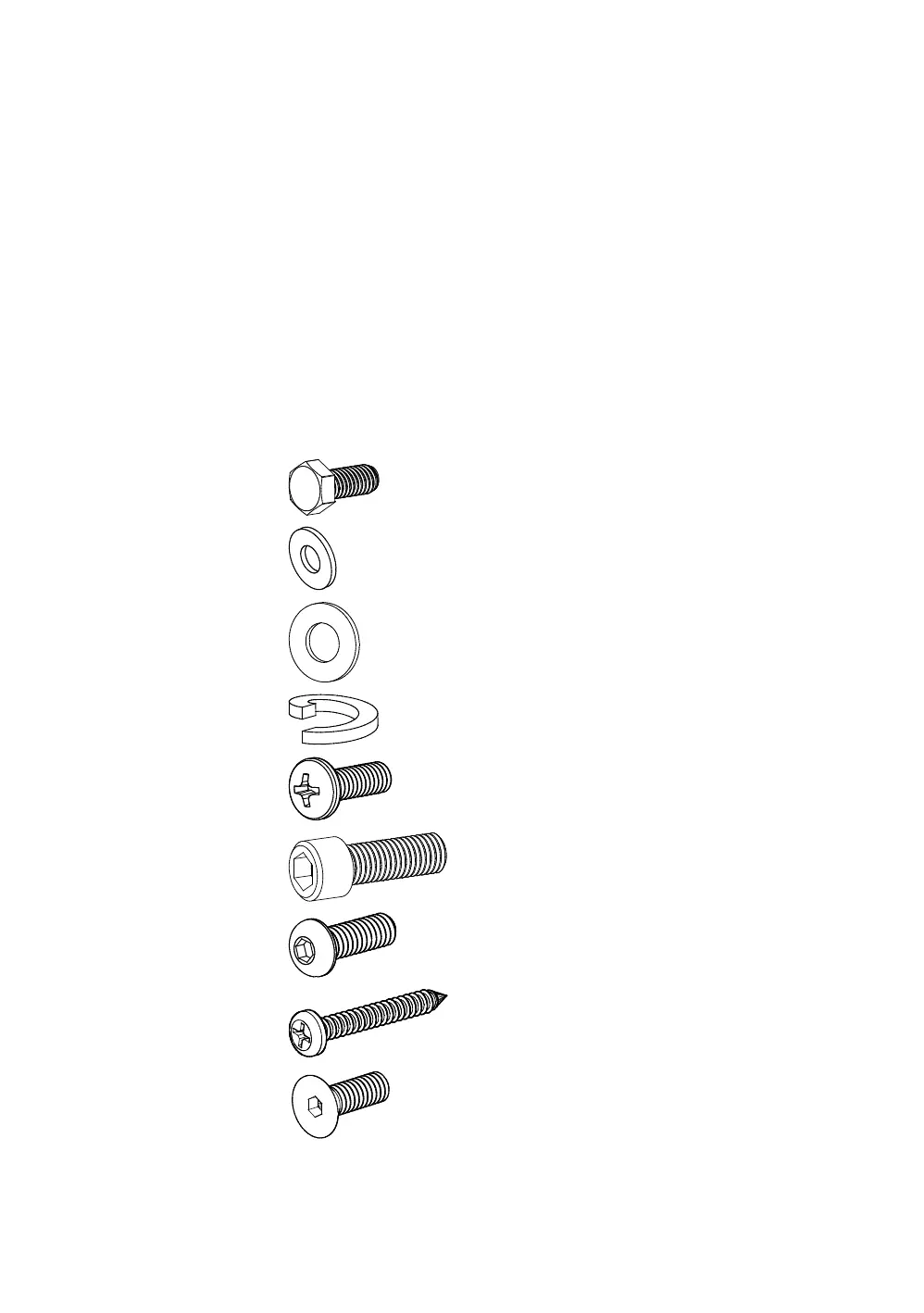

Hardware Kit (not to scale)
The hardware kit shipped with this equipment contains the
fasteners and other hardware components shown in the
following table. Before you begin assembly, make sure that
your hardware kit is complete. If not, please contact Precor
Customer Support.
Fasteners
Quantity
Hex head screws (1¹₄-inch) 2
Flat washers (⁵₁₆-inch) 20
Flat washers (³₈-inch) 4
Split washers (⁵₁₆-inch) 20
Phillips-head cap screws (³₄-inch) 3
Socket head cap screws (⁵₁₆–inch
x 1¹₄–inch)
6
Buttonhead screws (⁵₁₆–inch x
1–inch)
14
Self-tapping screws (1¹₂-inch)
4
Flat head hex drive screws (¹₄-inch
x ⁵₈-inch)
4
