Precor GluteBuilder GPL724/D45HE - Page 13

13

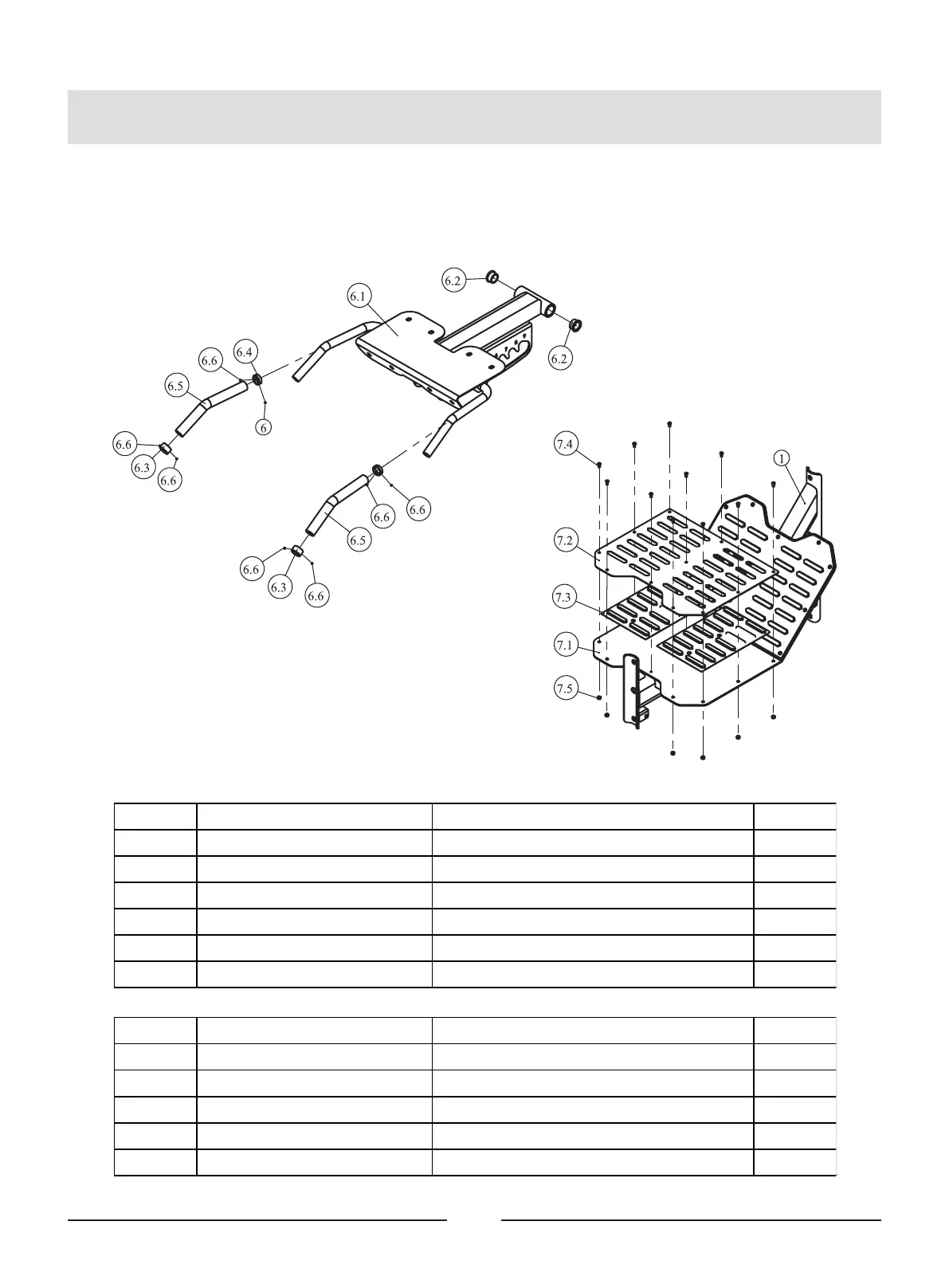

Exploded View and Parts List
Upper Handlebar ASSY
Pedal frame ASSY
Item No. Part No. Description QTY
7.1 D45HE0500 Pedal frame 1
7.2 D45HE2600 Anti-skid plate 2
7.3 D45HE3100 rubber pad 4
7.4 PNLM6*12DY20 Button Head Cap Screw M6*12 22
7.5 NM6DY2 Nylon Lock Nut M6 16
Item No. Part No. Description QTY
6.1 D45HE0800 Upper Handlebar 1
6.2 M02502000 Bushing Φ25.4 2
6.3 V39600V2 Aluminium Grip Cap Φ25.4 2
6.4 V39500V2 Aluminium Grip Ring Φ25.4 2
6.5 SD1004B1600 Grip 2
6.6 YZGB7710-32*3.2DY2 Socket Set Screw 10-32*3.2 8
