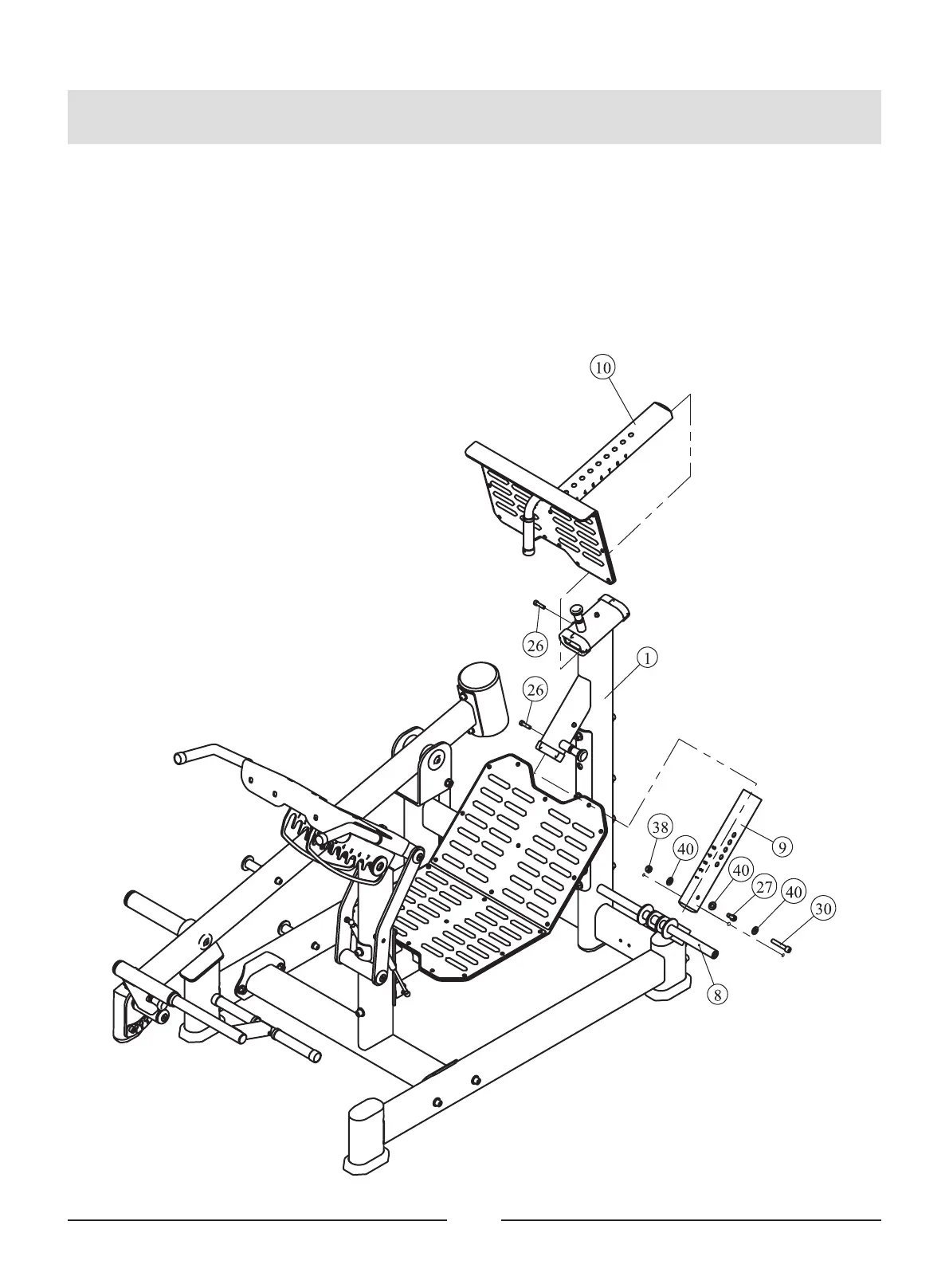

STEP 6
1. Attach one FOAM Frame ASSY (#8) to Adjusting Frame ASSY (#9), using:
one M10*25 SHCS (#27)
one M10*60 SHCS (#30)
three Φ11*Φ23*2 Flat Washer (#40)
one M10 Nylon Lock Nut (#38)
2. Attach one Adjusting Frame ASSY (#9)
to Rear Main Frame ASSY (#1), using:
one M8*30 SHCS (#26)
3. Attach one Rear pedal Frame ASSY
(#10) to Rear Main Frame ASSY (#1),
using:
one M8*30 SHCS (#26)
Note: Wrench Tighten Bolts.
