©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide
6

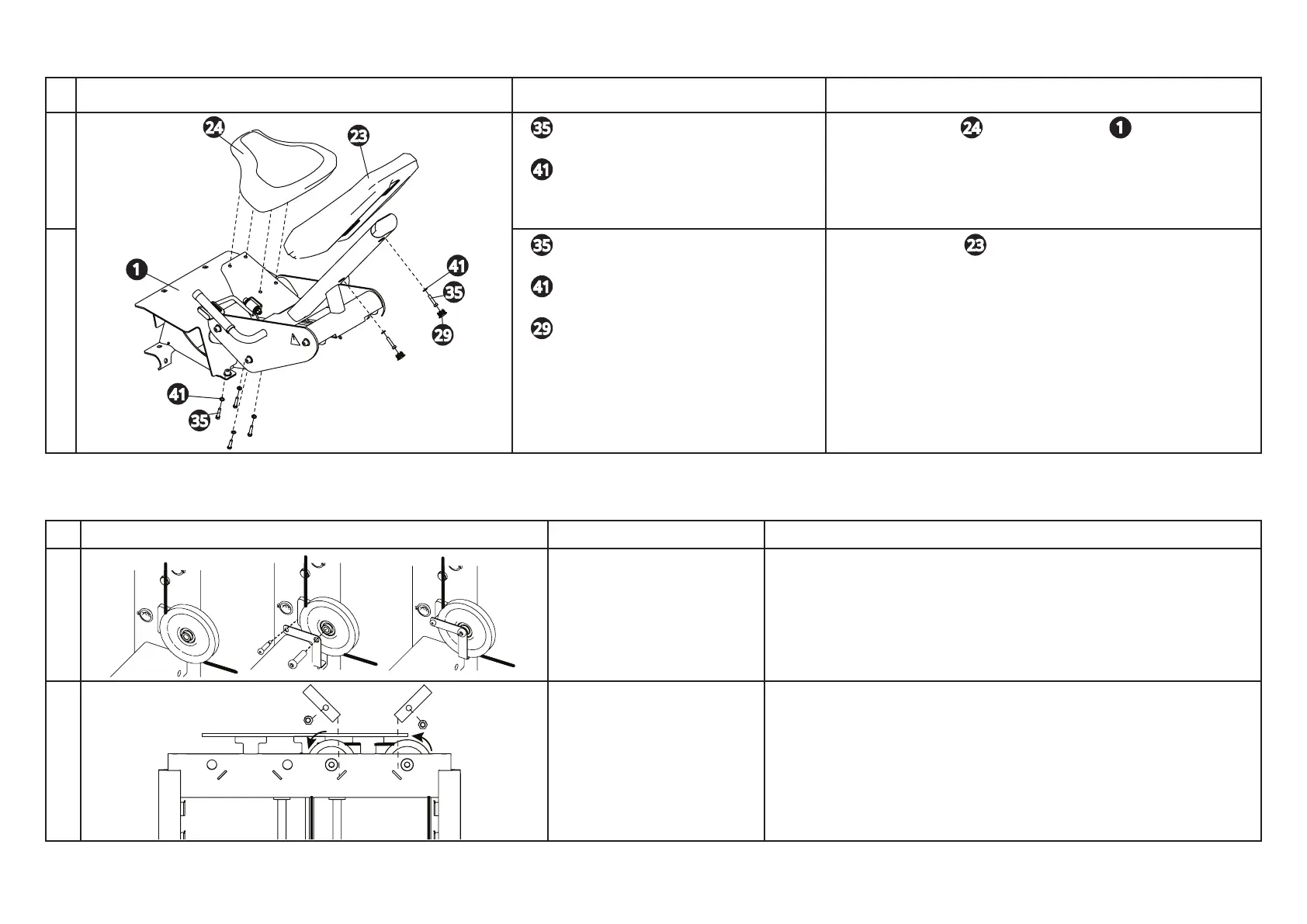

Seat Assembly
Image Hardware Instructions
1 4 hex head screws 5/16-inch x 1½-inch
4 washers, 9 mm
Tool: Socket wrench, ½-inch
Attach the seat pad to the main frame seat base.
Note Slide the seat base up to assist with attaching seat pad
fasteners.
2 2 hex head screws 5/16-inch x 1½-inch
2 washers, 9 mm
2 hole plugs
Tool: Socket wrench, ½-inch with extension
Attach the back pad .
CAUTION! DO NOT drop hardware down frame tube.
Route the Cable
Image Hardware Instructions
1 Tools: Hex wrench, 8 mm
Hex wrench, 4 mm
To route the cable around the lower pulley on the weight stack tower,
remove the cable retainer. Route the cable around the pulley and then
replace the cable retainer.
2 Tools: Hex wrench, 8 mm
Open-end wrench, 19 mm
Torque wrench
To route the cable to the upper pulleys of weight stack tower, remove the
cable retainers, route the cables, and replace the retainers. Tighten to 50
ft-lb (67 N-m) of torque.
24
1
23
41
35
29
41
35
1
23
24
29
35
41
41
35
