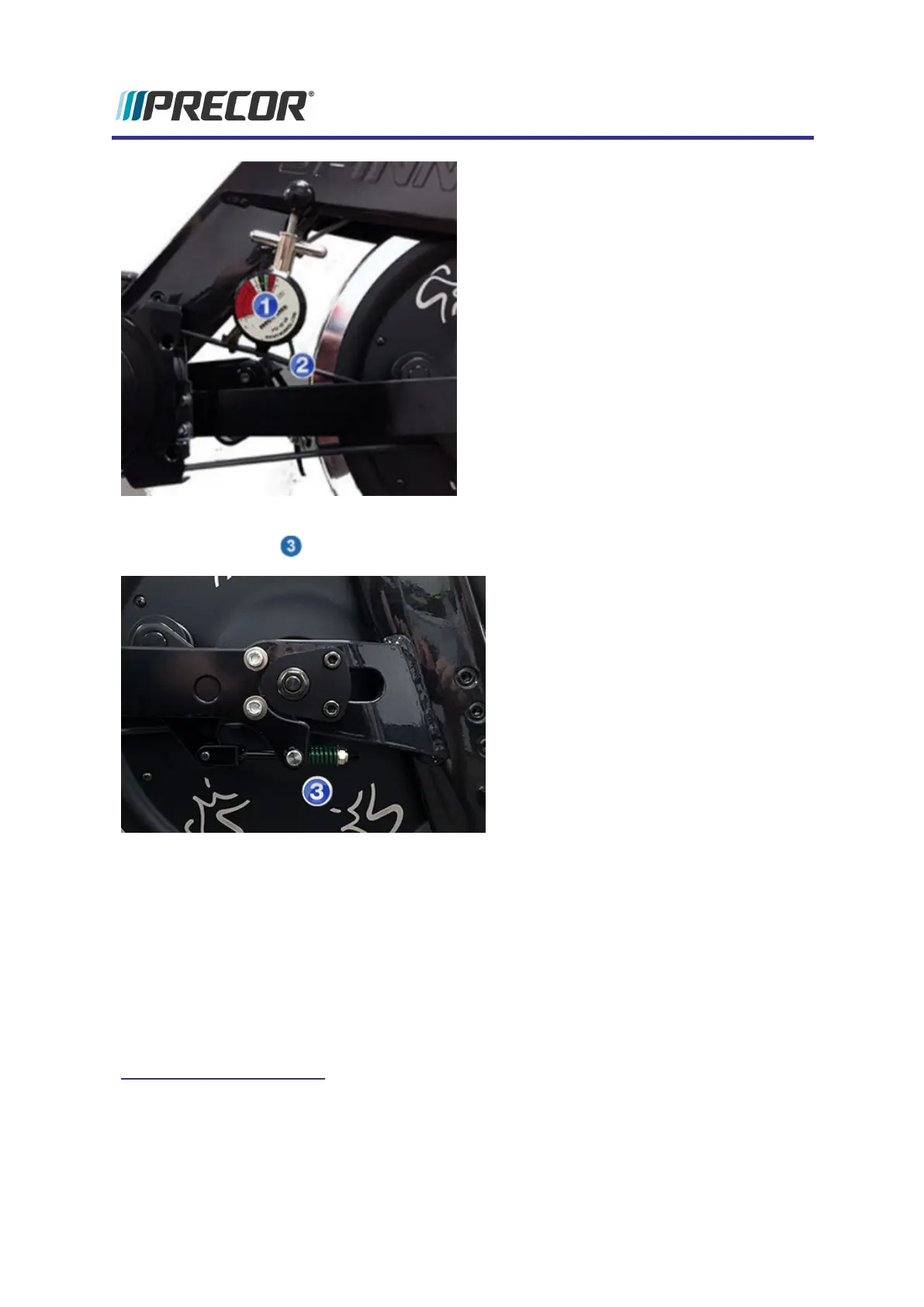

4. Adjust the belt tension between 140 - 150 lbs tension using the 13 mm belt tensioner
adjustment nut . Replace the belt if it cannot be adjusted within the specified limits.
5. Slowly turn the crank and verify the belt is operating smoothly and with no other issues
(noises, binding, etc.).
6. Mount and pedal bike to verify that there are no issues with the belt adjustment.
7. Replace belt guard covers in reverse order, see "Belt/Chain Guard Cover Replace-
ment" on page18.
8. Verify bike operation per "Operation Verification Checklist" on page7 and return to ser-
vice.
See Also
"Adjustment Procedures" on page8
10
3 Adjustment Procedures
Belt Drive Tension Adjustment
