Brake Pad Replacement
About
This procedure provides instruction to remove and install the Brake Pad.
The leather pad is an extremely simple and reliable resistance system. The resistance adjust-
ment knob is used to apply pressure and increased friction to the flywheel creating changing
pedal resistance.

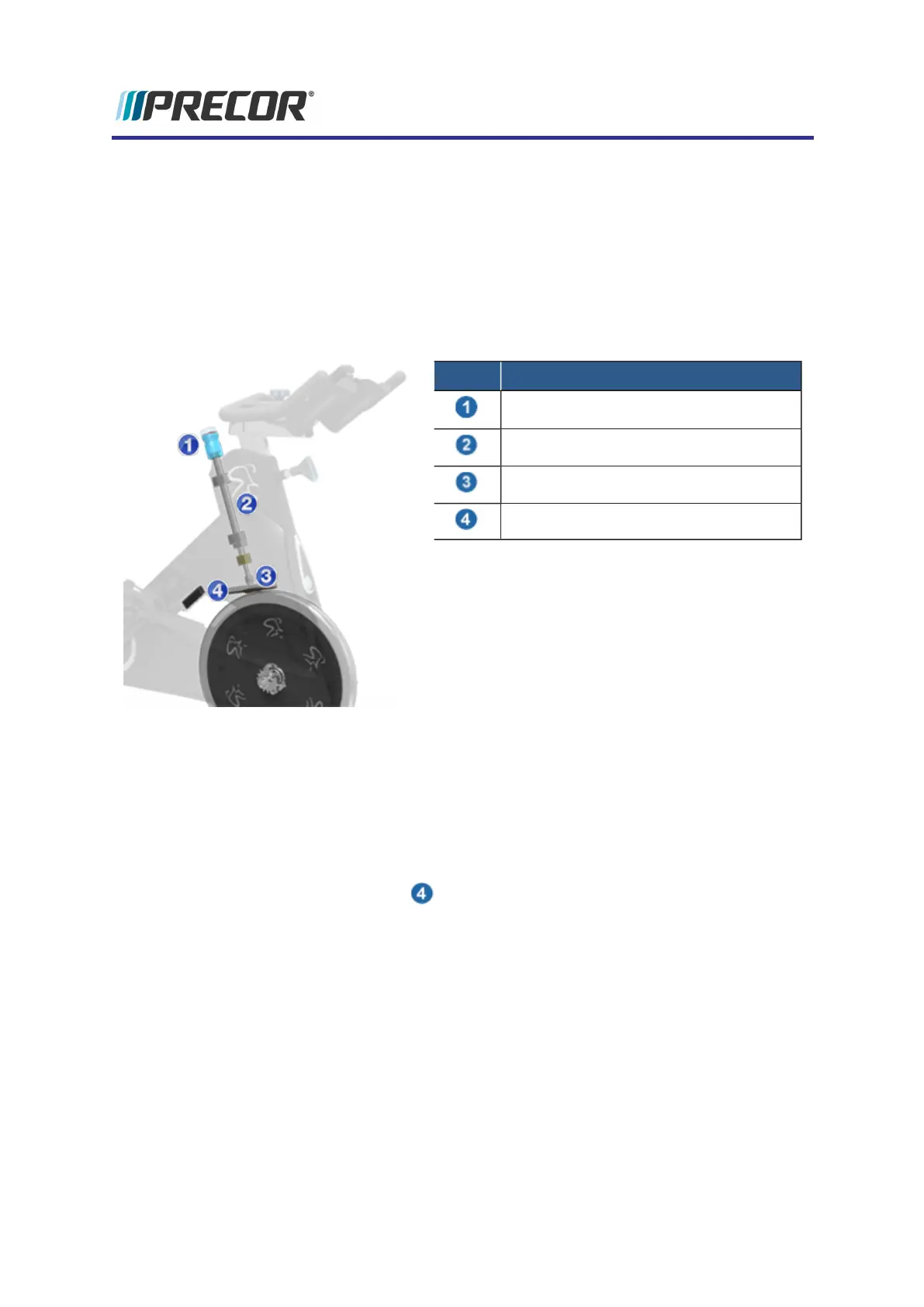

ID Part
Resistance knob
Resistance shaft
Acorn shaft nut
Brake pad assembly
Procedure
Review entire procedure before starting.
Removal Instructions
1. Remove all tension from the brake pad by turning the resistance knob counterclockwise
(-) until completely loose.
2.
Remove the brake pad assembly by removing the mounting bolts (2x) using a 5 mm
hex key, Retain fastener hardware for installation.
24
4 Replacement Procedures
Brake Pad Replacement
