5.

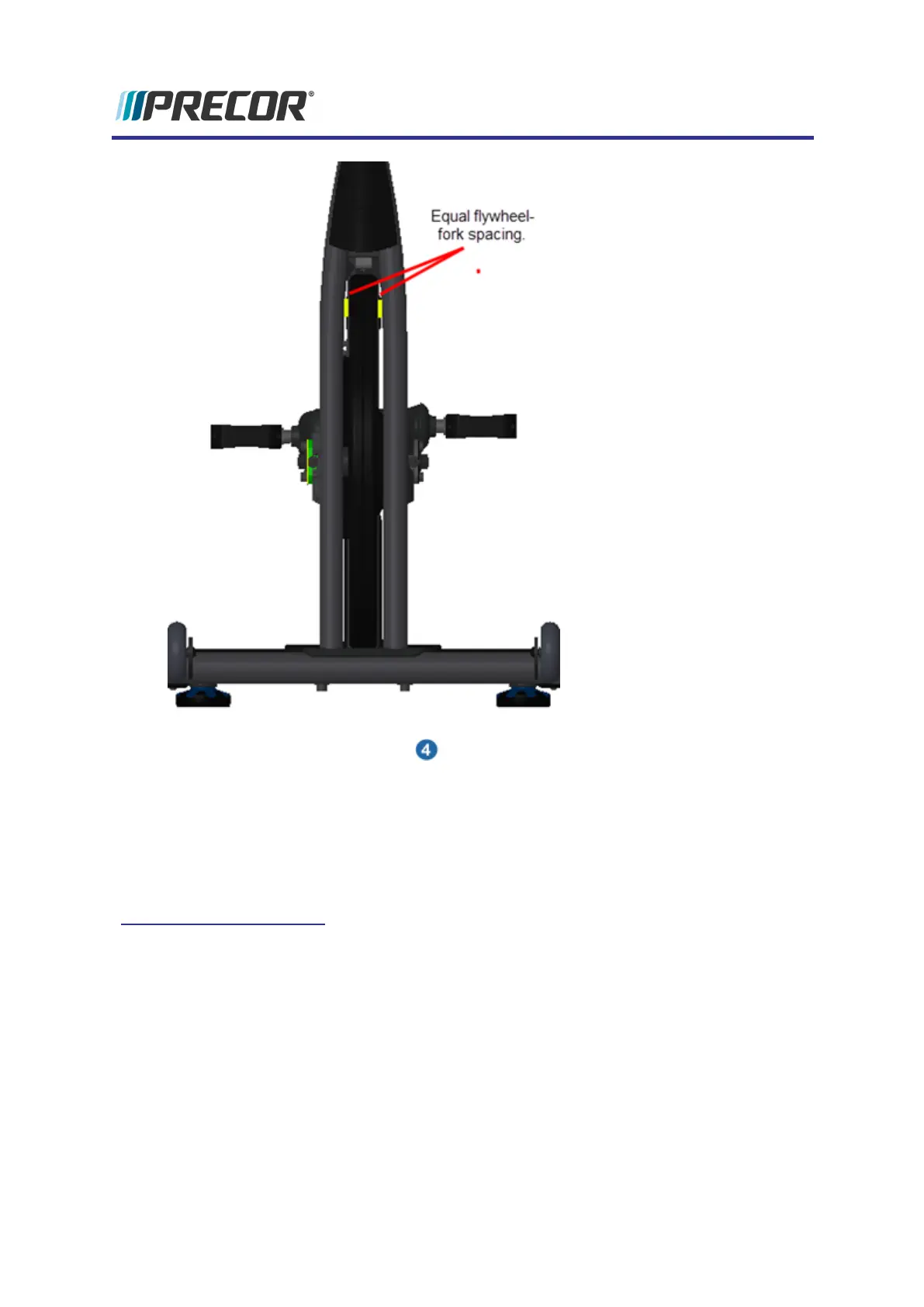

Tighten the left and right axle nuts , torque to 29.5 ft-lbs (40 Nm).
6. Ride (pedal) the bike to verify there are no issues with the chain tension adjustment.
7. Replace the chain guard access panel.
8. Verify the bike operation per "Operation Verification Checklist" on page7 and return to
service
See Also
"Adjustment Procedures" on page8
14
3 Adjustment Procedures
Chain Drive Tension Adjustment
