2.

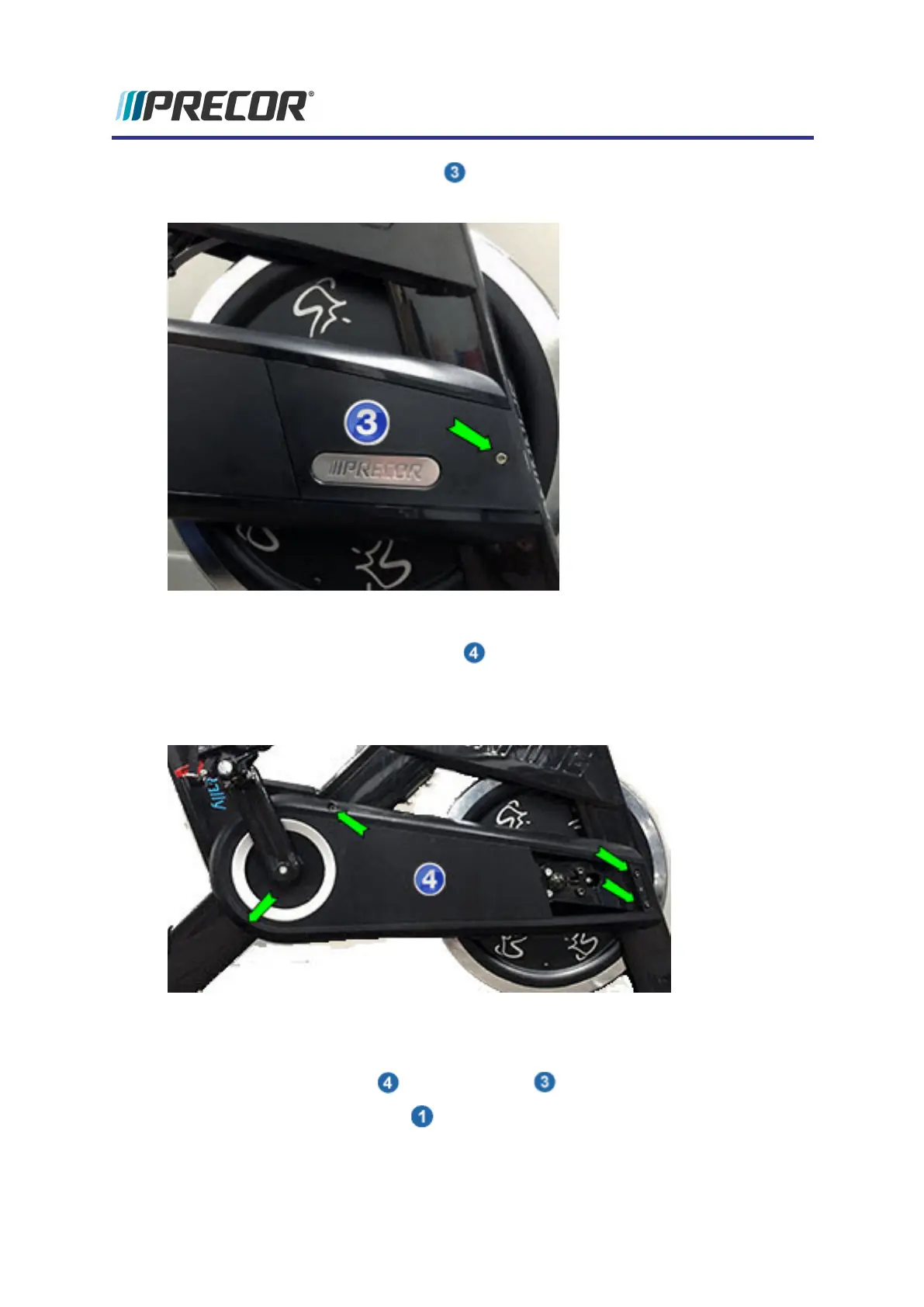

Remove the front guard access panel by removing the one fastener using a 5 mm
hex key. Retain fastener hardware for installation.
Front Belt/Chain Panel guard cover removal instructions
3.
Remove the front belt/chain guard cover by removing the fasteners (4x) using a 5
mm hex key. The back cover bolts need to be removed to remove the front cover. Care-
fully slide the front cover over the pedal crank arm to remove. Retain fastener hardware
for installation.
Installation Instructions
4. Install the belt/ chain guard covers in reverse order:
a.
First install front cover and access panel .
b.
Then install the back cover . It is easiest to install the stared fastener first to
hold cover in position.
19
