4. Reinstall the replacement handlebar assembly in reverse order.
5. Verify the handlebar forward/reverse travel is smooth and that the handlebar slider is
stopped from sliding off the post.
6. Verify the handlebar adjustment knob operation and that it holds the handlebar in pos-
ition.
7. Adjust the handlebar height and fwd/aft reach to a comfortable position.
8. Verify the bike operation and return to service.
Handlebar replacement Instructions
Removal Instructions
1. Remove the Handlebar slider off the post, see """Handlebar slider replacement Instruc-
tions" on page1" above" on the previous page.
2. Remove the handlebar adjustment knob.

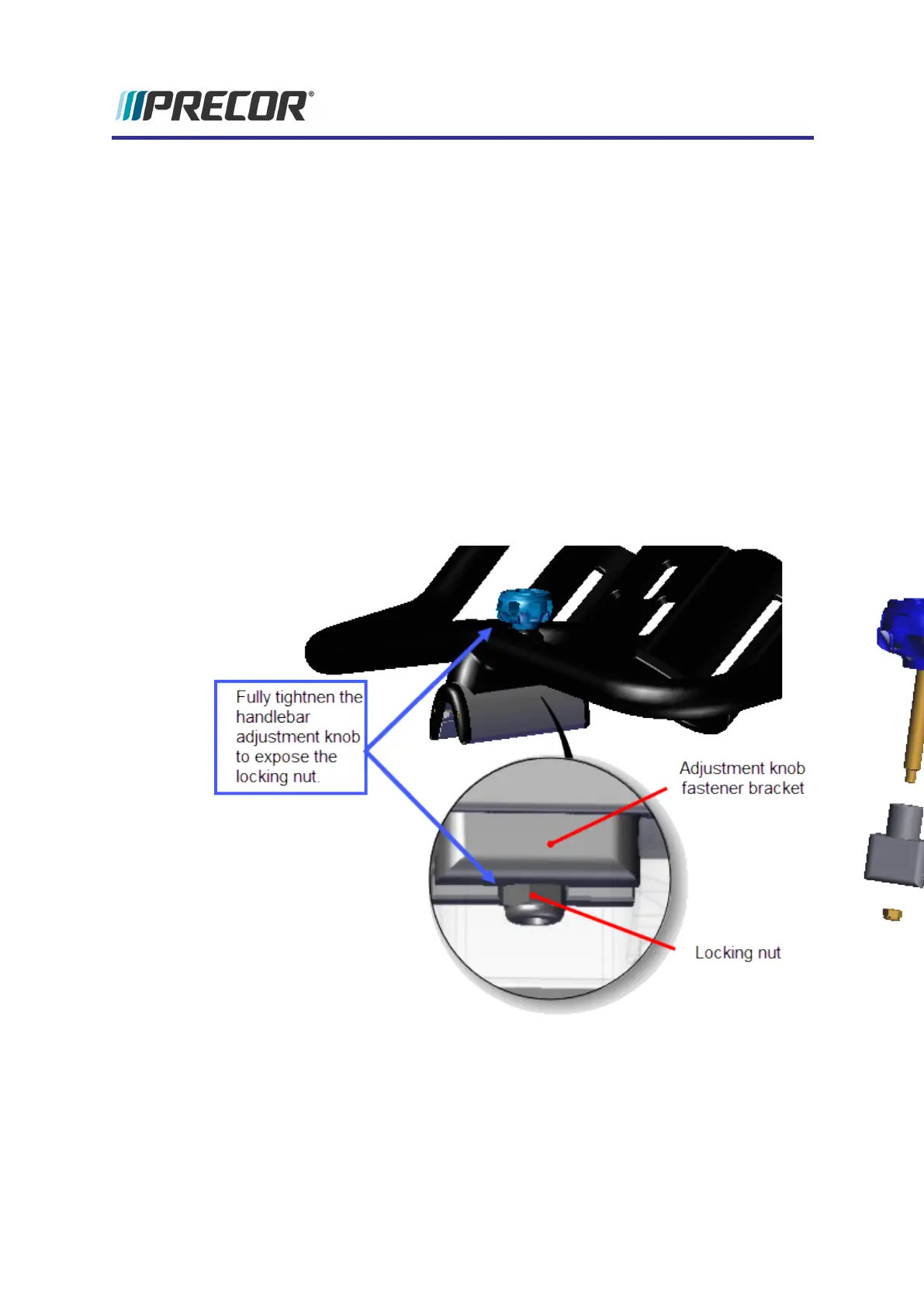

a. Fully tighten the handlebar adjustment knob. This will push the locking nut slightly
above the bottom edge of the adjustment knob bracket exposing the locking nut.
b. Use a thin wall 5/16' deep socket to hold the locking nut from turning while loosen-
ing the adjustment knob until removed. Keep light pressure on the adjustment
knob while loosening.
3. Remove the two fasteners and remove the slider from the handlebar.
