Precor SPINNER SHIFT User Manual

installed.
Installation Instructions
1. Clean and apply a thin film of the 3-IN-ONE SILICONE lubricant onto the handlebar
assembly post. Do not apply lubricant to the handlebar forward/back slider.

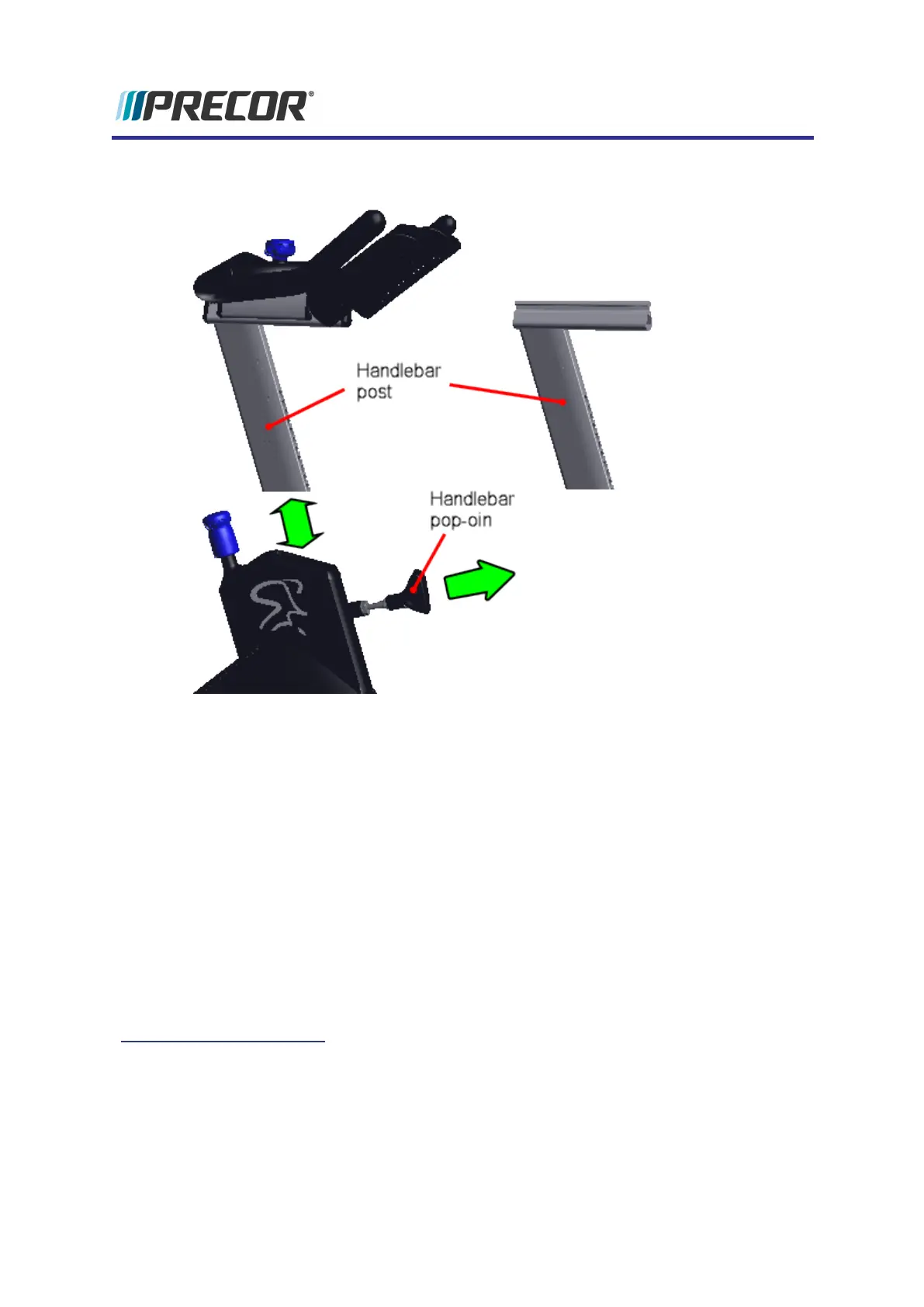

2. Install the handlebar post into the frame. Pull the handlebar pop-pin and engage one of
the post height holes.
3. If removed, reinstall the handlebar onto the handlebar slider, see """Handlebar replace-
ment Instructions" on page1" above" on page30.
4. If removed, install the handlebar slider assembly onto the handlebar post, see """Handle-
bar slider replacement Instructions" on page1" above" on page30.
5. Adjust the handlebar height and vertical reach to a comfprtable position.
6. Verify bike operation and return to service.
See Also
"Handlebar Adjustment Knob Replacement" on the next page
33

Precor SPINNER SHIFT Specifications

General

Brand	Precor
Model	SPINNER SHIFT
Category	Exercise Bike
Language	English
