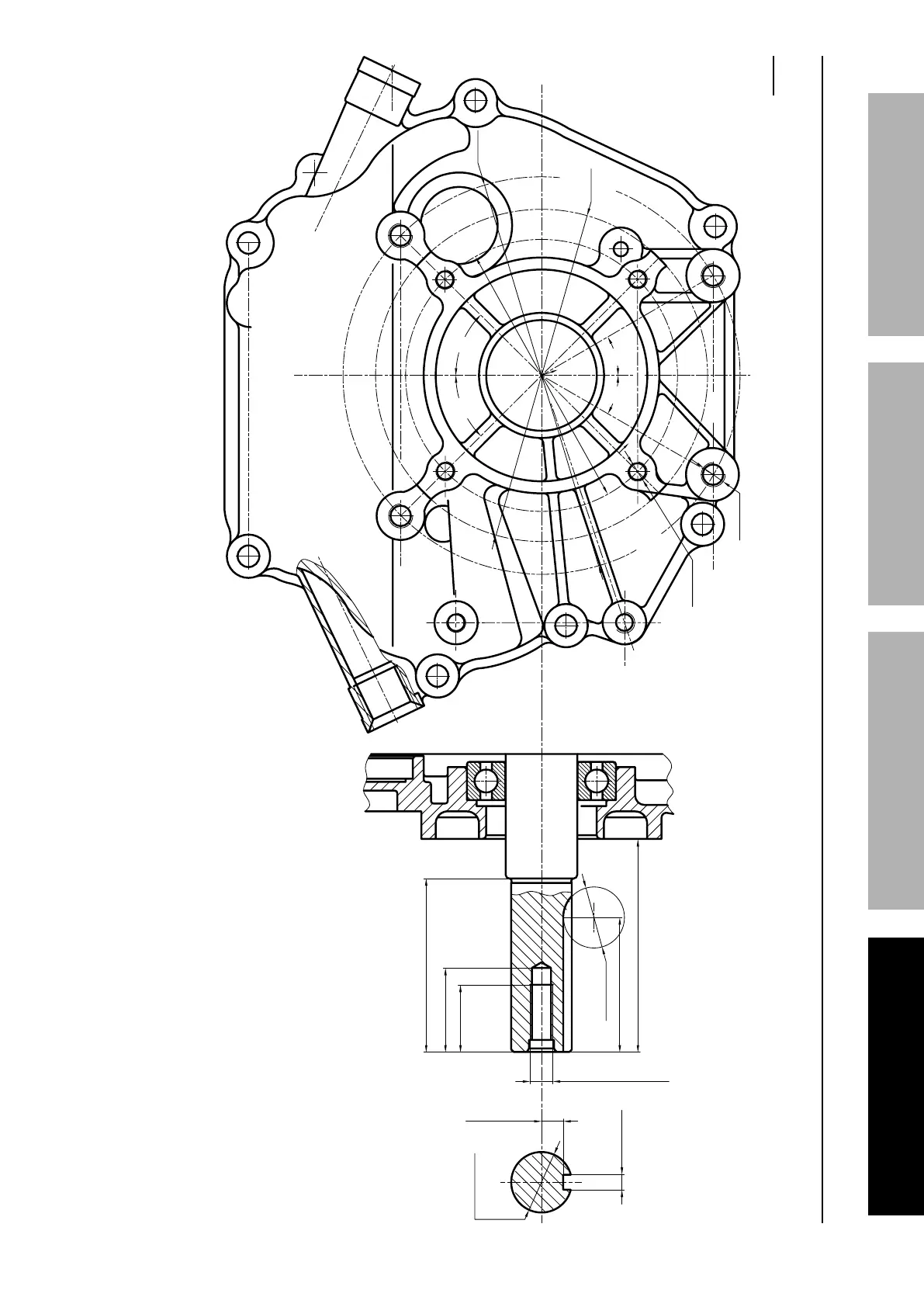

Power Take-Off Diagram Note: Not to scale.
Ø3.48 in. / 88.5mm
Ø2.2 in. / 56mm
Ø1.1 in. / 28mm
Ø1.375 in. / 35mm
Ø2.84 in. / 72.2mm
7/16-20 UNF
Ø1 in. / 25.4mm
Ø1 in. / 25.4mm
0.25 in. / 6.3mm
0.36 in. / 9.13mm
Ø5.43 in.
/ 138mm
Ø6.5 in. /
165.1mm
Ø4.45 in. / 113mmØ4.45 in. / 113mm
3/8-16 UNC
5/16-24 UNF
30º
45º
30º
45º
