Predator 57509 - Components and Controls; Control Panel; Generator Front View

Page 9
For technical questions, please call 1-888-866-5797.
ITEM 57509
SAFETYOPERATIONMAINTENANCE SETUP
Components and Controls
Low Oil
Overload
Output
Ground
Terminal
120 VAC 20 A
GFCI Receptacles
120 VAC 30 A
Receptacle
Parallel Kit
Terminals
Economy
(ESC) Switch
120 VAC Breaker
Reset Buttons
Main Breaker
Reset Button
Engine
Switch
USB Ports
Carbon
Monoxide Alarm

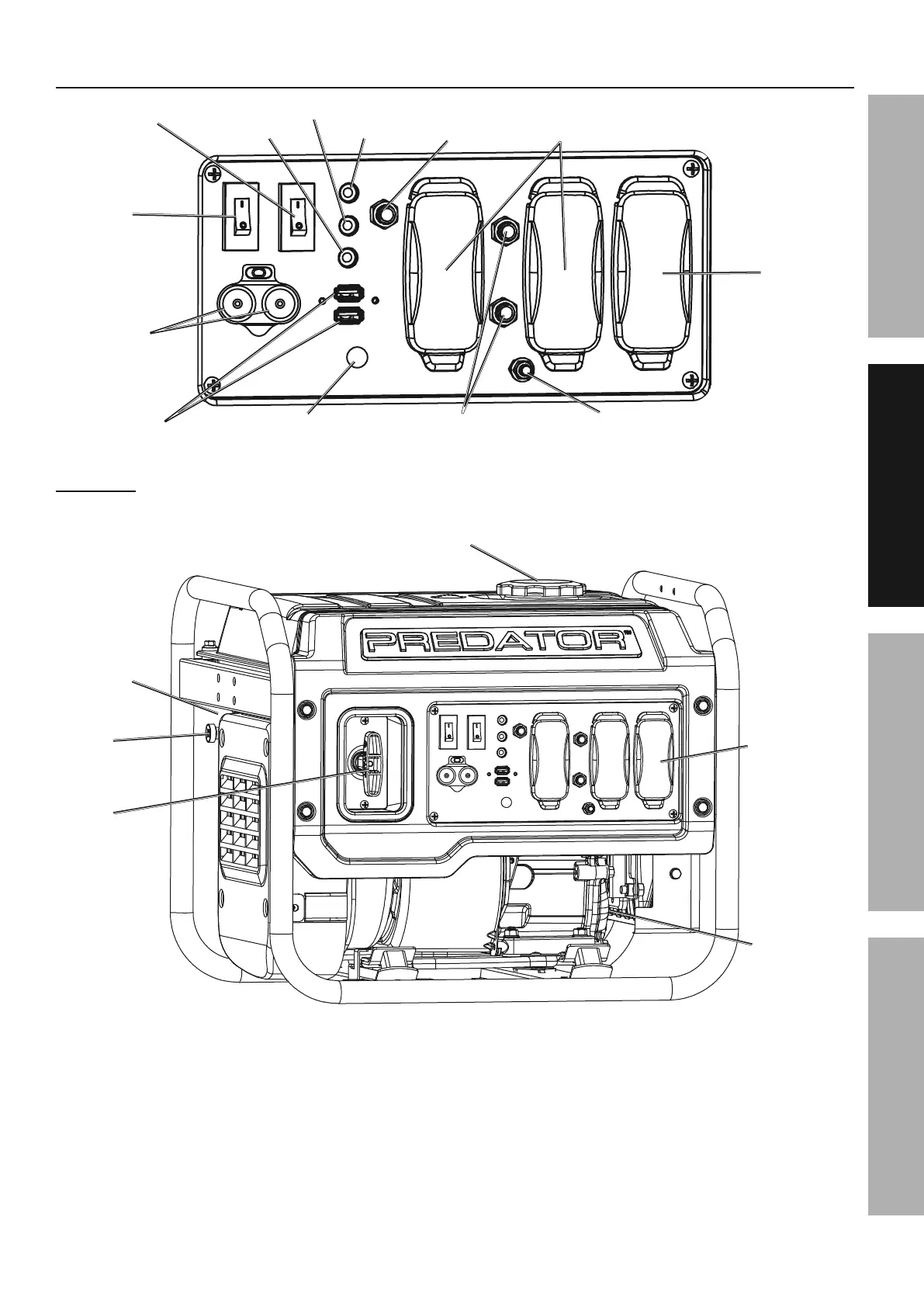

Figure A: Control Panel
WARNING! TO PREVENT SERIOUS INJURY: Follow Parallel Kit instructions for
connection and use of a Parallel Kit (Parallel Kit and instructions sold separately).
Choke
Fuel Cap
Control Panel
Starter
Handle
Fuel Valve
(on back)
Oil Fill Cap
and Drain Bolt
Figure B: Generator Front
